Product Details
Miniature porable oil purifing device
This miniature porable oil purifing device is easy to carry, and can be used to fill various hydraulic lubricating oil equipment anytime and anywhere in the field, and can purify the oil. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter. The fine filter can choose different precisions according to the different needs of users to achieve the desired results.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow L/min | 6
| 10 | 16 |
Rated pressure Mpa | 0.34
|
| Original pressure loss Mpa | ≤0.02
|
Coarse filtration accuracy μm
| 40 meshes
|
Fine filtration accuracy μm | 3、 5、 10、 20、 40 |
Alarm differential pressure MPa | 0.2MPa |
Use temperature °C | 6~80 |
Recommended viscosity for use cSt | 10~160 |
Power supply V | AC380V three-phase, AC220V three-phase |
Motor Power kw | 0.18 | 0.25 | 0.35 |
Weight kw | 13 | 16 | 18 |
Dimensions mm | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
This miniature porable oil purifing device is an ultra-portable oil and oil filter developed by our company.
The miniature porable oil purifing device is easy to carry and can be used to refill various hydraulic lubricating equipment anytime and anywhere in the field, and can purify the oil.

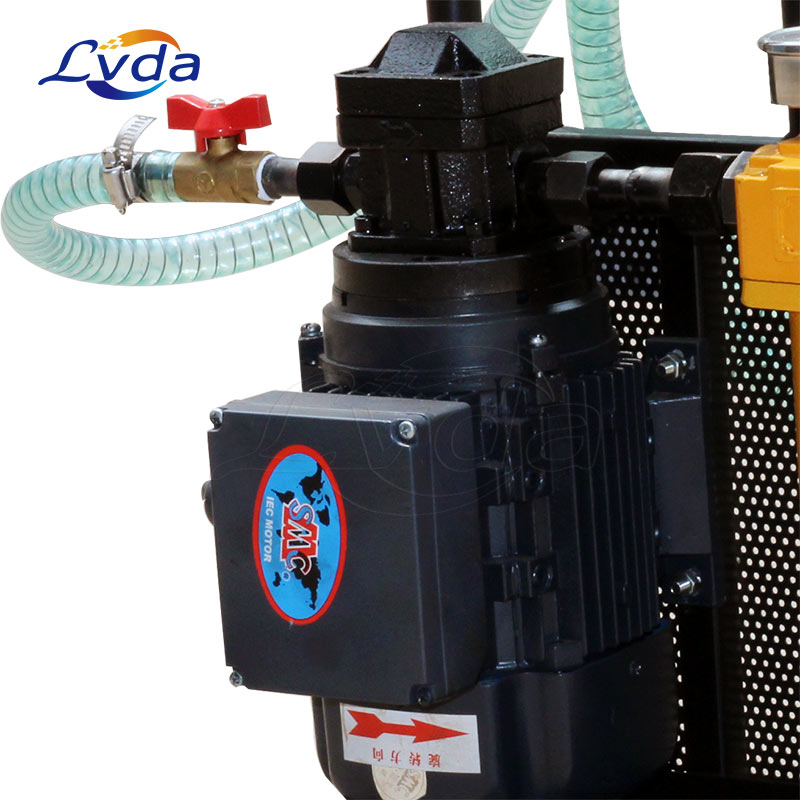

The suction port coarse filter protects the oil pump and prolongs the life of the main filter.
Thermal relay protection is adopted to prevent motor damage caused by motor overload.
The oil filter housing adopts a quick-opening mechanism, which can quickly and conveniently open the upper cover and replace the filter element without any tools.
A pressure gauge is installed on the panel, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
The fine filter can choose different precision according to the different needs of users to meet the required requirements.
Applications
☆ Suitable for conveying and filtering mechanical impurities of insulating oil, lubricating oil, various mineral and vegetable oils and other liquids.
☆ It is suitable for oil change, oil replenishment and impurity filtration with small oil volume (such as machine tools, vehicles, fuel tanks, oil switches, transformers, pipes, etc.).
And workshop, maintenance, power plant, power station, oil depot, factory and mine, aviation, chemical industry, laboratory, etc.
☆ It is especially suitable for field and high-altitude operations, which can refuel and pump oil in the lubrication system.
