Product Details
Portable oil filtering machine
Portable oil purifier is another practical energy-saving product developed by our company according to the actual requirements of users. The equipment has superior performance and is widely used. This product can be used by industrial and mining enterprises and institutions such as power plants, substations, and oil stations. Filter transformer oil. Hydraulic oil. Turbine oil. Moisture and impurities in engine oil and its oil.
Oil filter procedure:
Primary filtration ---- oil inlet ---- pressure control ---- fine filtration ---- oil outlet
Primary filtration part: Large particles of impurities are directly visible and easy to remove in time.
Pressure control is to prevent the oil outlet pipeline from being blocked, and the oil pressure is too high to cause equipment failure.

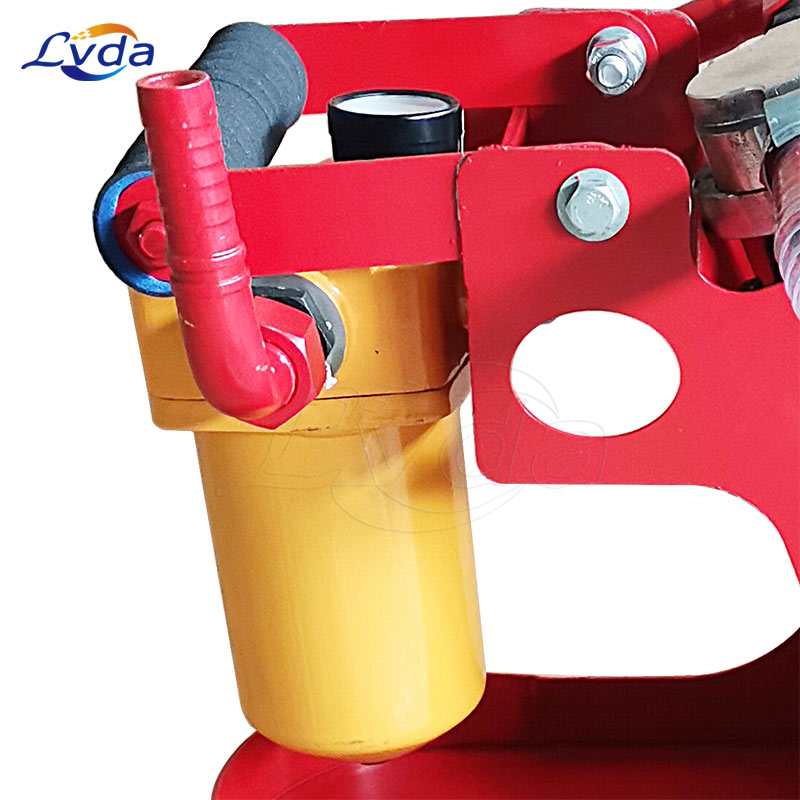

The fine filter adopts a special filter element as the filter bed, and the effect is quite good.
Operating procedures:
Connect the power cord before operating the procedure.
When starting up, pay attention to whether the rotation direction of the motor is consistent with the direction of the arrow on the pump cover.

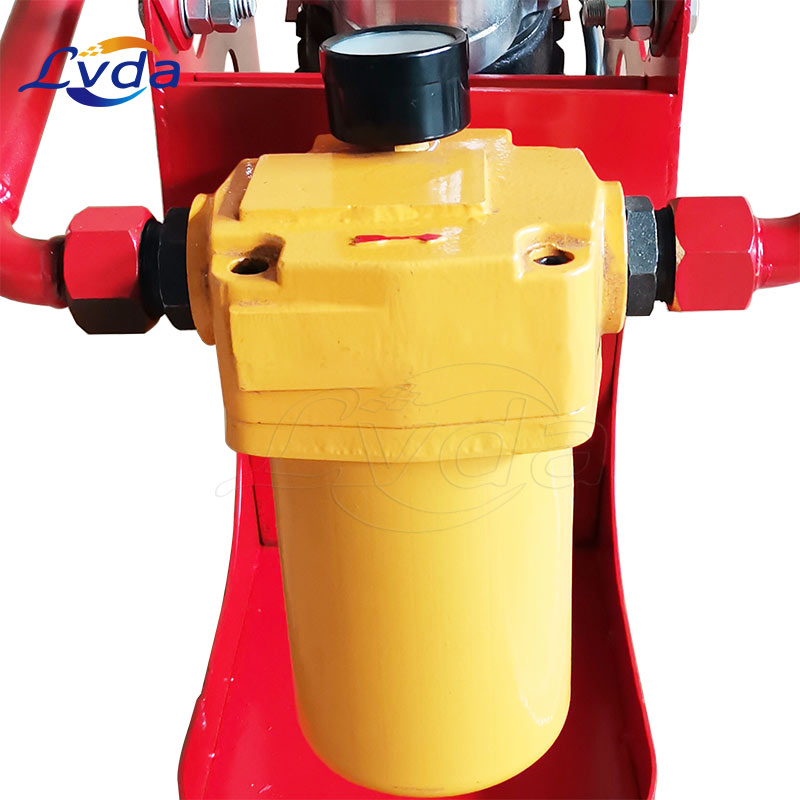

When the filter is working normally, you should always pay attention to whether the pointer of the pressure gauge is normal. Generally, the working pressure is 0---0.39MPa. If the pressure exceeds 0.39MPa, it means that the filter element has a lot of dirt and water and should be replaced or cleaned.
In order to ensure whether the filtered oil is qualified, oil samples can be taken at any time for measurement.
After filtering, clean the filter screen and put it in the clean fuel tank for storage.
Maintenance and Safety Requirements:
1. Always keep the machine clean.
2. When using the filter, the machine must be grounded with wires to prevent electric shock.
3. Pay attention to whether the connecting bolts of the motor and the bracket are loose.
If you find that the oil filter is insufficient, you can check the following aspects:
(1). Whether the suction pipe, the primary filter and the pipe joint are leaking;
(2). The suction pipe is too long or the pipe diameter does not meet the requirements;
(3). Whether the oil inlet pipe or the primary filter screen is blocked.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow L/min | 6
| 10 | 16 |
Rated pressure Mpa | 0.34
|
| Original pressure loss Mpa | ≤0.02
|
Coarse filtration accuracy μm
| 40 meshes
|
Fine filtration accuracy μm | 3、 5、 10、 20、 40 |
Alarm differential pressure MPa | 0.2MPa |
Use temperature °C | 6~80 |
Recommended viscosity for use cSt | 10~160 |
Power supply V | AC380V three-phase, AC220V three-phase |
Motor Power kw | 0.18 | 0.25 | 0.35 |
Weight kw | 13 | 16 | 18 |
Dimensions mm | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
1. High filtration precision and large oil-passing capacity: The filter element adopts metal and new chemical fiber filter material, which has the advantages of high filtration precision, large oil-passing capacity, small pressure loss, and large dirt holding capacity;
2. Protection of hydraulic components: suitable for hydraulic system pressure pipelines, which are filtered to filter out mechanical and chemical impurities in the oil, thereby preventing the spool from being stuck, throttling the hole gap and the blockage of the Indonesian hole, weakening the Wear of hydraulic components;
3. Equipped with differential pressure transmitter: There is a differential pressure transmitter for filter element blockage. When the pressure difference between the inlet and outlet reaches a certain value, the transmitter will send a signal. At this time, the filter should be stopped in time to replace the filter element;
4. Small size, light weight, easy to carry and operate.
5. The filter precision can be freely selected according to customer needs.
The machine has low noise, simple structure and reliable performance. It can filter and replenish oil on site. It is especially suitable for the debugging, pumping, filling and filling of oil equipment in the workshop.
Applications
Specially designed for high-precision machining machinery, so that its oil is always in good condition.
