Small oil purifier

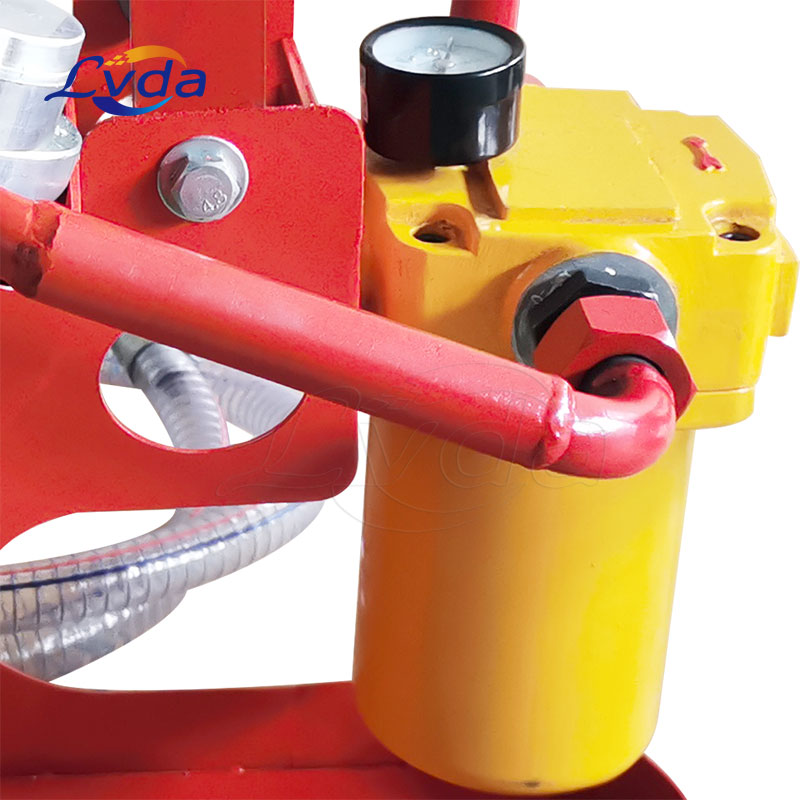

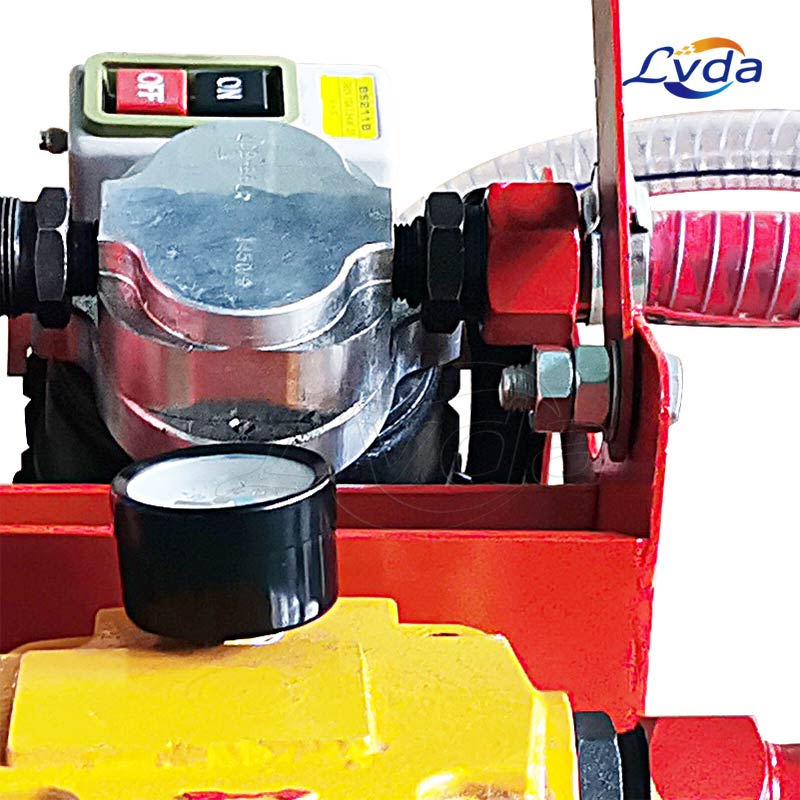

Small oil purifier includes a gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation. The high-pressure pipeline is provided with an overflow protection device to protect the hydraulic system. Adopt thermal relay protection to prevent motor damage caused by motor overload. The suction port coarse filter protects the oil pump and prolongs the life of the main filter. The fine filter can choose different precision according to the different needs of users to meet the required requirements. At the same time, the oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without any tools. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow L/min | 6
| 10 | 16 |
Rated pressure Mpa | 0.34
|
| Original pressure loss Mpa | ≤0.02
|
Coarse filtration accuracy μm
| 40 meshes
|
Fine filtration accuracy μm | 3、 5、 10、 20、 40 |
Alarm differential pressure MPa | 0.2MPa |
Use temperature °C | 6~80 |
Recommended viscosity for use cSt | 10~160 |
Power supply V | AC380V three-phase, AC220V three-phase |
Motor Power kw | 0.18 | 0.25 | 0.35 |
Weight kw | 13 | 16 | 18 |
Dimensions mm | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
1. It has the characteristics of small size, high efficiency and convenient movement, especially suitable for outdoor operations.
2. The design of this machine is simple, no filter paper is needed, and the filter elements at all levels can be used after repeated washing.
3. According to the customer's requirements, it can be designed and manufactured into 1-stage to 6-stage filtration, and the filtration precision can reach ≤0.8μm.
4. Adopt titanium, nickel and monel alloy trapezoidal sintering filter equipment, which has high corrosion resistance, mechanical strength resistance, uniform filter holes and long service life.
5. It can effectively filter out impurities in the oil, and also has the functions of refueling and oil pumping.
6. The high viscosity grease larger than No. 320 can be effectively filtered through a special process.
7. Weight: 120.00kg
User optional configuration:
1. The motor and electrical oil pump can be imported parts as needed.
2. The flowmeter can be installed according to user requirements.
3. In addition, explosion-proof products can be customized according to the site environment.
Applications
Filtration of hydraulic lubrication systems when refueling
Bypass filtration when hydraulic lubricating system works
Circulation filtration before the hydraulic lubrication system is put into operation
The oil of the hydraulic lubrication system is not filtered by the pump of the equipment itself
