Miniature portable oil purifier unit

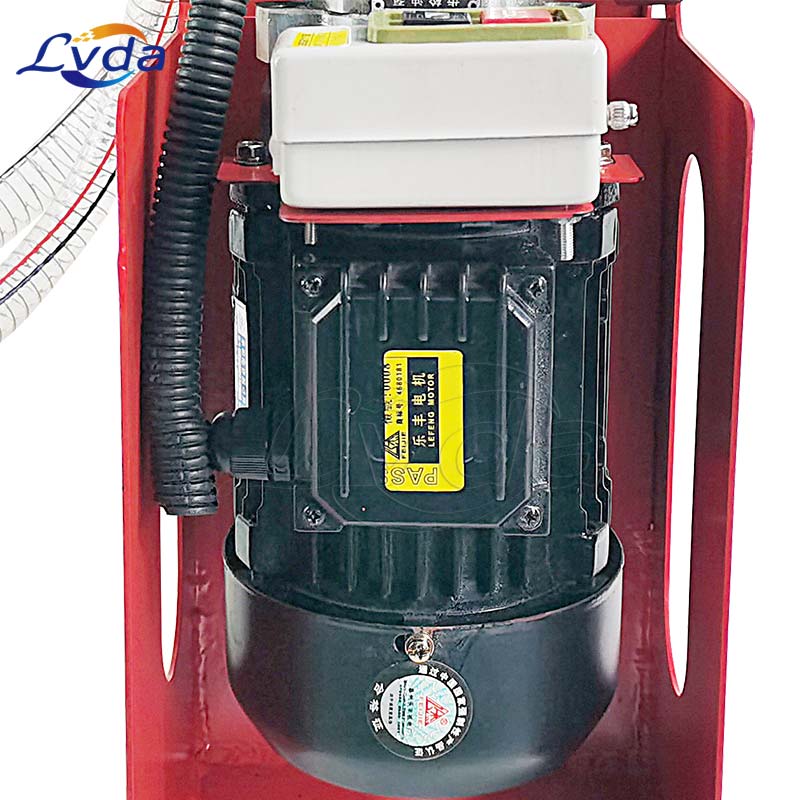

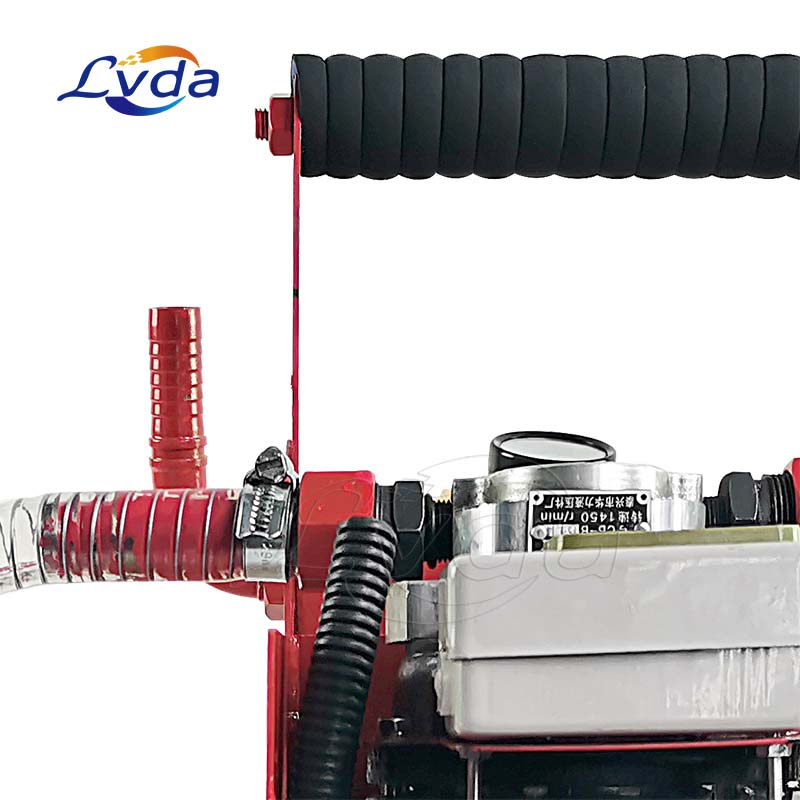

Miniature portable oil purifier unit is also called portable oil filter. It is composed of a special gear pump driven by a motor and a filter. The oil suction port is equipped with a coarse filter to protect the oil pump and prolong the service life of the main filter. It is used for impurity filtration and oil transportation of fluids such as transformer oil, hydraulic oil, lubricating oil, and turbine oil. It is suitable for field portable operation and high-altitude operation. Filter the oil while refueling and pumping the hydraulic lubrication system.
Maintenance
1. The machine mainly adopts the mechanical filtration method, and gradually reduces the density of the filter screen to achieve the purpose of improving the filtration accuracy. It can be seen that during the working process of the equipment, the first-stage filtration is easy to be blocked by impurities, and there will be a Oil is less than oil.
Treatment method: Remove the upper cover of the first-stage filter, take out the filter screen, and clean it with the same type of cleaning oil, and then the work can be restored.
2. If the lift is too high during the refueling process, the temperature of the motor will rise rapidly and the noise of the oil pump will increase.
Treatment methods:
a. Work according to the specified lift;
b. Intermittent work.
3. The noise of the oil pump increases abnormally:
Treatment methods:
a. Check whether the connecting shaft of the oil pump is concentric;
b. Whether the fastening screw is loose or dropped. The above phenomena can be ruled out after recovery.
4. It is strictly forbidden to lack the direction, so as not to burn the motor.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow L/min | 6
| 10 | 16 |
Rated pressure Mpa | 0.34
|
| Original pressure loss Mpa | ≤0.02
|
Coarse filtration accuracy μm
| 40 meshes
|
Fine filtration accuracy μm | 3、 5、 10、 20、 40 |
Alarm differential pressure MPa | 0.2MPa |
Use temperature °C | 6~80 |
Recommended viscosity for use cSt | 10~160 |
Power supply V | AC380V three-phase, AC220V three-phase |
Motor Power kw | 0.18 | 0.25 | 0.35 |
Weight kw | 13 | 16 | 18 |
Dimensions mm | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
● Compact structure, small size, light weight, easy to carry and operate.
● The interior is filtered by filter element, which can be used repeatedly to save money and not pollute the site.
● Filtration precision, product specifications can be freely selected according to needs.
● According to need, it can be made into explosion-proof type.
Applications
●Filtering when refueling in hydraulic lubricating system
●Bypass filtration when hydraulic lubrication system works
●Circulating filtration before the hydraulic lubrication system is put into operation
●The oil of the hydraulic lubrication system is pumped out without being filtered by the pump of the equipment itself
