Product Details

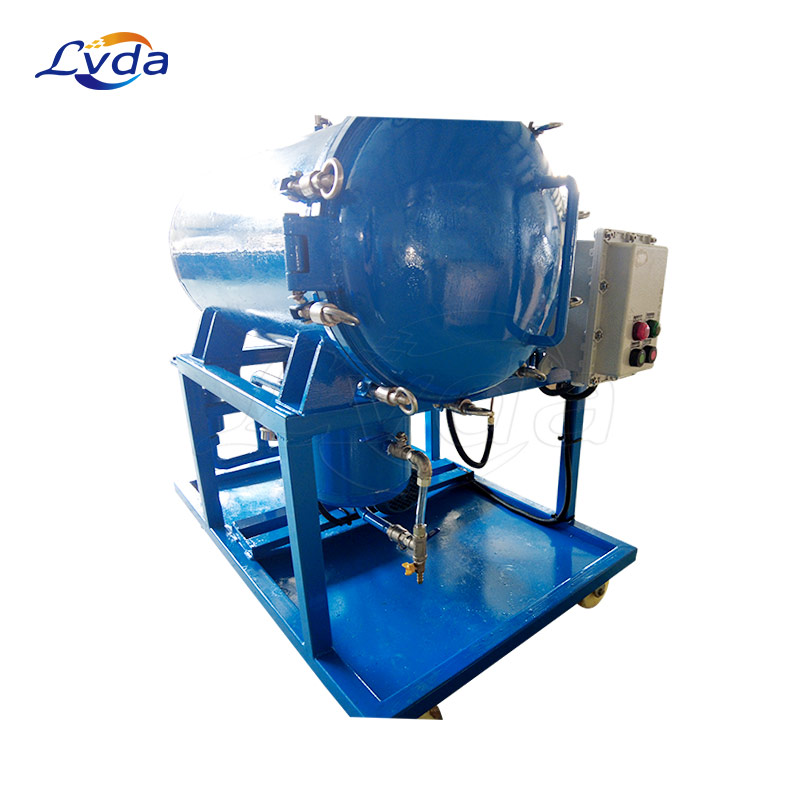

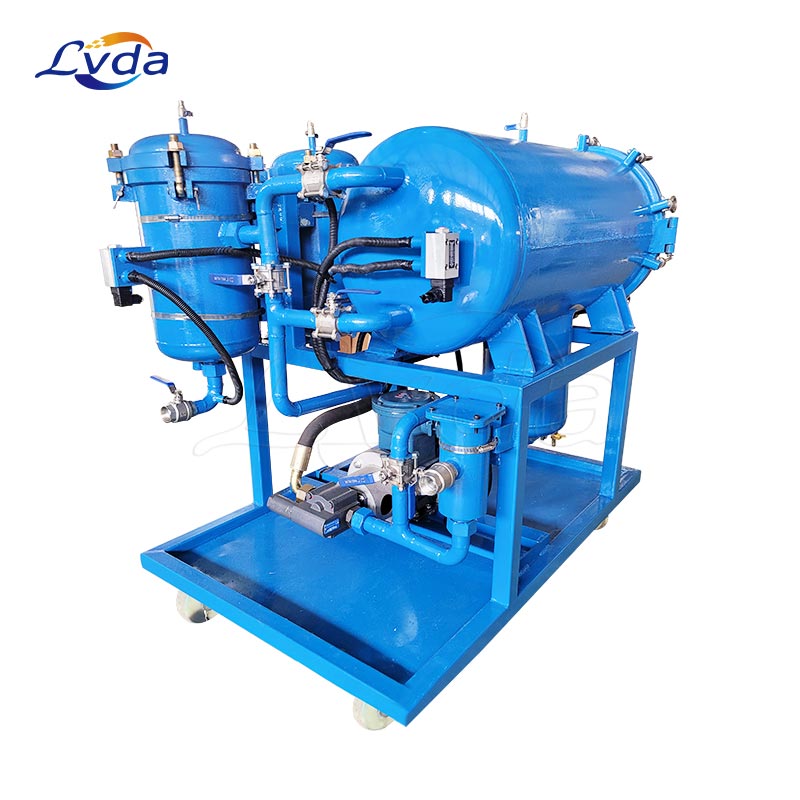

Lube oil coalescer seperation system
The harmful effects of moisture and particulate contamination in turbine lube oil have been well documented. We have combined the latest innovations in coalescer technology and pleated microglass filter media in one system to achieve optimal fluid cleanliness in steam and gas turbines. Utilizing high efficiency coalescer/separator filter elements, these systems are designed to quickly remove large amounts of free water from turbine lube oil, achieving overall water content as low as 150 PPM. At the same time, the high efficiency pleated microglass filter elements are capable of achieving very low particle counts. Coalescing technology enables you to remove bulk free water at extremely fast rates - previously this could only be done by centrifuges. Coalescing technology outperforms centrifuges, is simpler to use, costs less to maintain, and is lower in initial purchase price.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
* Lower cost than competitive systems and/or centrifuges
* Simple and reliable operation requiring virtually no maintenance
* A very high water extraction rate available in the industry
* Compact, one button operation for continuous duty.
* Push-button on-off switch with fully automatic water drain and sump
* Upstream/downstream oil sample ports
* Low watt-density circulation heater with digital temperature controller
* Inline digital moisture indicator
* Inline digital particle counter
* Explosion proof (NEMA 7) for class 1, division 2, class C&D hazardous locations
* 304SS or 316SS material
* Touchscreen controls
* 480V, 3-phase or 220V, 1-phase electrical
* Coreless filter elements
* Skid mounted for permanent installation or portable version with push-rail and oversized casters
* Buna or Viton Seals
Product applications
Mechanical processing, metallurgical industry, petrochemical industry, cement plant, electric power industry, iron and steel industry, paper industry, textile industry, purification of turbine oil and transformer oil; water removal and impurity removal of oil in hydraulic lubrication system; comprehensive access to hydraulic lubrication system Improve system cleanliness.
