Coalescer fuel and oil purifier
Coalescer fuel and oil purifier
Coalescer fuel and oil purifier

Coalescer fuel and oil purifier

Lubricant Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Initial pressure loss (Mpa) : ≤0.1

Filtered water content : ≤100

Coarse filtration(μm) : 100

​Pressure differentials : 0.2Mpa

Get Quotation

Product Details

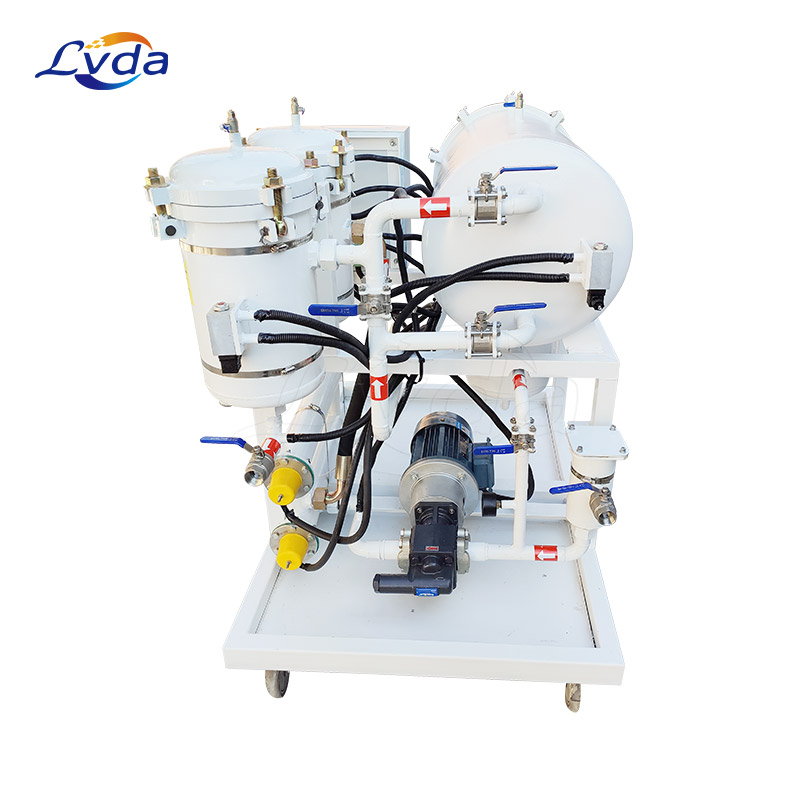

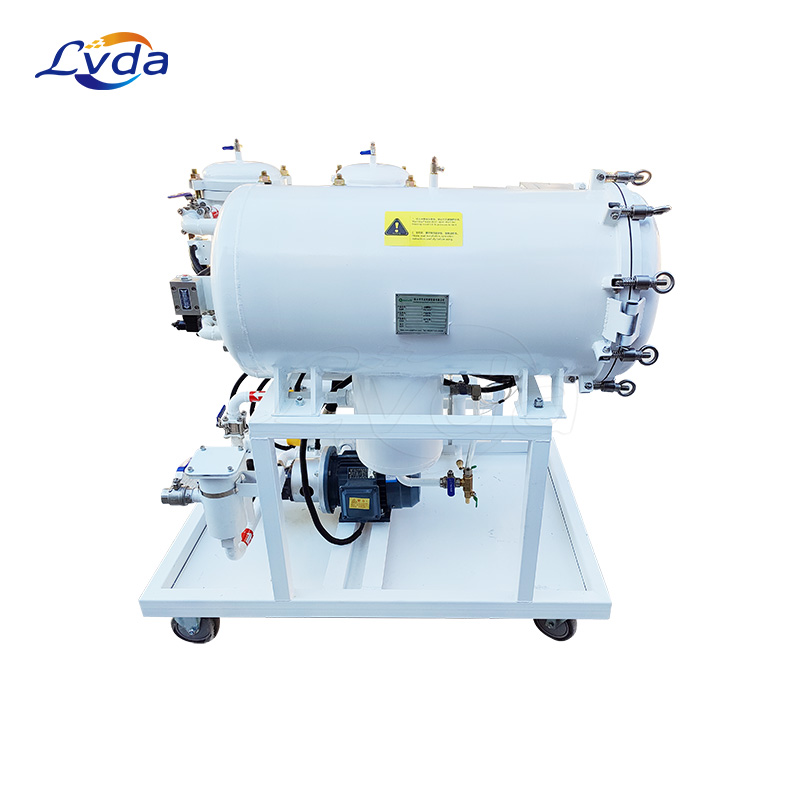

Coalescer fuel and oil purifier

To effectively and efficiently separate water from fuel, lube oil, turbine oil and hydraulic oil, we design coalescer fuel and oil purifier, this coalescer fuel and oil purifier combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. The high efficiency coalescing and separators filter elements are specifically designed to separate oil from water and water from oil quickly, together with oil mist from air. After separation, overall water content can reach 100 PPM. At the same time, the coalescer fuel and oil purifier uses high efficiency micro-glass filter elements, they are capable of achieving very low particle counts to as low as NAS 6 grade cleanliness level.


Product parameters

ModelA0P-D25AOP-D50A0P-D100AOP-D150A0P-D200AOP-D400
Rated flow(L/min)

25

50

100

150

200

400
Rated pressure(MPa)                                                                                                         0.6
Initial pressure loss (Mpa)                                                                                                       ≤0.1
Filtered water content                                                                                                       ≤100
Coarse filtration( μ m)


                                                                                                        100

Grade 1 filter rating( μ m)                                                                                                     10、20


Grade 2 filter rating( μ m)

                                                                                                       3、5
Pressure differentials                                                                                                    0.2Mpa
Working temperature(°C)                                                                                                     25- 80
Recommended viscosity(cSt)                                                                                                     10-120
Voltage(V)                                                                                  AC 380V(Three-phase)、50Hz
Motor power(kw)

0.75

1.1

2.2

4

5.5

13
Weight(kg)

150

200

300

520

860

2860
Dimensions(mm)1200x 800x12501350 x800x14001740x 980x14501800x1000x15401840x1050x17803180x 1600x2000

Note: *-is filter's rating,such as 03 is 3 microns.

**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

***-explosion-proof type: add F before type, Omission: normal type


Product features

- The coalescence oil separator elements are normally constructed using a pre-filter stage to protect the coalesce filters.

- Rapidly removing large amount free & emulsified water from oil and as low as 100 PPM.

- Removing particles down to NAS 6 grade cleanness level

- Cart type, light weight, simple and reliable operation, low maintenance cost.


Product applications

Designed  for use on turbine lube oil, hydraulic oil, diesel fuel, heat transfer oil, dielectric oil etc.
