Product Details
Thin oil coalescing dewatering purification equipment(thin oil purifier)
Our company is a new generation of intelligent coalescing dewatering oil filter specially developed and built for light fuel oil and lean slip hydraulic thin oil.
The purpose of our coalescing vacuum oil filtration treatment is to eliminate particles, moisture, gas and other pollutants in the oil, and to reduce the acid value. Make the oil clear and transparent, restore the performance, and prolong the service life of the oil as much as possible.
The thin oil coalescing dewatering purification equipment (thin oil purifier) ??is an independent oil purification and filtration system with a skid-mounted structure, which can be connected to the user's oil system for online circulation filtration, or can be moved to the oil processing station for offline oil filtration.
The thin oil coalescing dewatering purification equipment (thin oil purifier) ??not only has the reliable function of filtering and dewatering oil, but also can conveniently switch the valve for oil pumping, oil filling and oil replenishment functions to meet the requirements of on-site use.
At present, most of the mechanical lubrication and hydraulic oils used in industry are processed by adding various petrochemical additives to the base oil through a special blending and refining process. Therefore, the process of the user putting the oil into operation is the process of consuming and wearing the additives in the oil. In this process, if the pollution of the oil is heavier and the working environment is worse, the consumption of the oil will be faster.
The application experience shows that: - For the oil used in normal use, if the user finds that the oil is contaminated, or finds that the cleanliness exceeds the standard, and immediately carries out purification and filtration treatment, the life of the oil can be extended by 2.5- 3 times. It can save 2.5-3 times the oil cost for users. Its production benefits cannot be estimated.
During the working process of the oil system, no matter how careful the installation and operation are, it is still impossible to prevent the oil from being contaminated. When the contamination is formed, the characteristics of the oil product decline, resulting in an increase in equipment failure rate or product defect rate.
The solution is:
A. Replace qualified new oil - high cost, the oil change process affects production and wastes;
B. Purchase our Thin oil coalescing dewatering purification equipment (thin oil purifier) ??to filter and purify oil products---economical, energy saving and high return efficiency.
Product principle

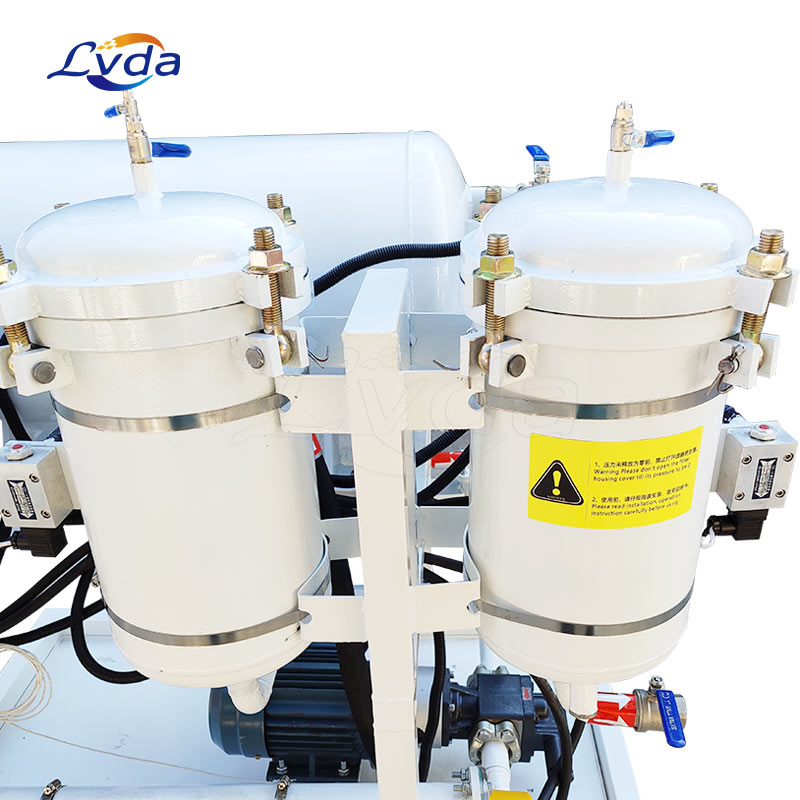

Filtration: The oil first passes through the magnetic suction filter with an accuracy of 150 microns in the system to protect the oil pump from being damaged by large particle pollutants, and then the oil enters the high-efficiency pre-filter, and then enters the protection after coalescing, separation and dehydration. The fine filter is processed to ensure that the cleanliness of the oil entering the user's fuel tank reaches the design target.
Coalescing: When the oil passes through the equipment, it first enters the coalescing system. Due to the special molecular structure of the coalescing filter element material, the emulsified water and free water in the oil are coalesced into larger water droplets after passing through the system. It sinks into the water storage tank under the action of gravity.
Separation: The oil passing through the coalescing system re-enters the separation system. Previously, the water droplets with larger gravity have sunk into the water storage tank, but there are still small water droplets entering the separation system with the oil under the action of inertia. The separation filter element is made of hydrophobic material specially developed by Dingneng. When the oil-water mixture passes through the filter element, the water droplets are blocked from the outside and gather together to form water droplets and sink, while the oil enters the filter element and finally discharges from the net oil port.
Drainage: The separated water is stored in the water storage tank, which can be discharged by manual visual inspection, or automatically discharged by an oil-water interface meter.
Note: In field application, if this series of thin oil coalescing dewatering purification equipment (thin oil purifier) ??is used with plate-and-frame pressure oil filter, the cleanliness and filtration efficiency of oil products can be significantly improved. And can protect coalescing oil filter element.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
●Specialized design of the whole machine, beautiful appearance, low power and low operating cost;
●Integrate two functions of precision filtration and high-efficiency dehydration;
●Continuous treatment in large flow, strong purification ability and high dehydration efficiency;
●Pure physical purification, does not change the physical and chemical properties of the oil, and prolongs the service life of the oil;
●Automatic drainage, truly unattended;
●Multi-layer filtering is adopted for impurities. The coarse filter element, protective filter element and fine filter element are all imported from Europe and America, and the particle size control effect is remarkable.
Product applications
Turbine oil, turbine oil, lubricating oil, hydraulic oil, mechanical oil and other thin oils.
Widely used in electric power, machinery, metallurgy, petrochemical, military, papermaking, home appliance manufacturing, hydraulic lubrication and other industrial industries. Purification and filtration of thin oil to meet high-precision oil requirements.
