Product Details

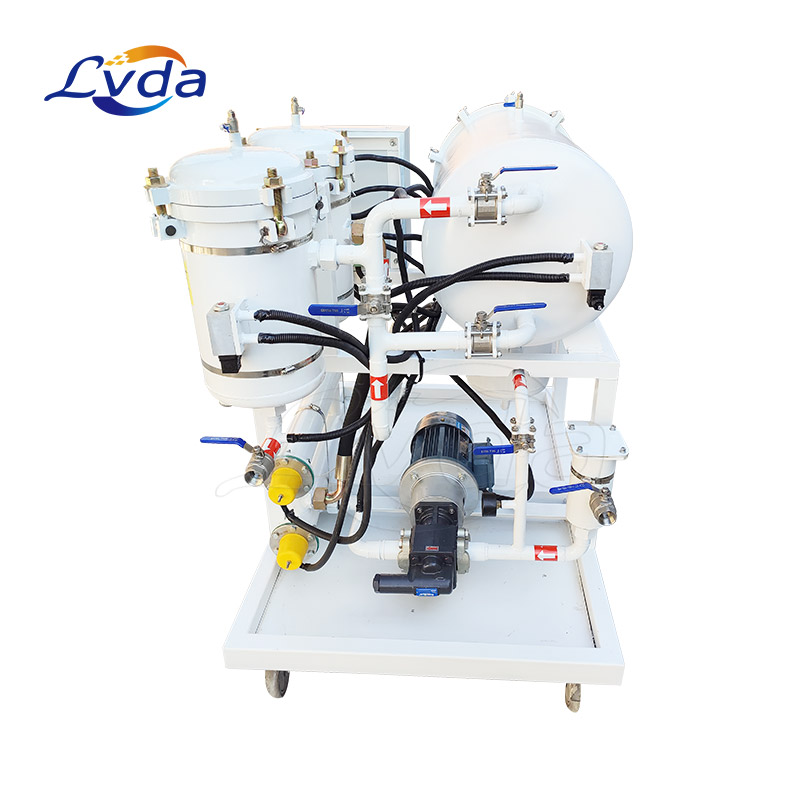

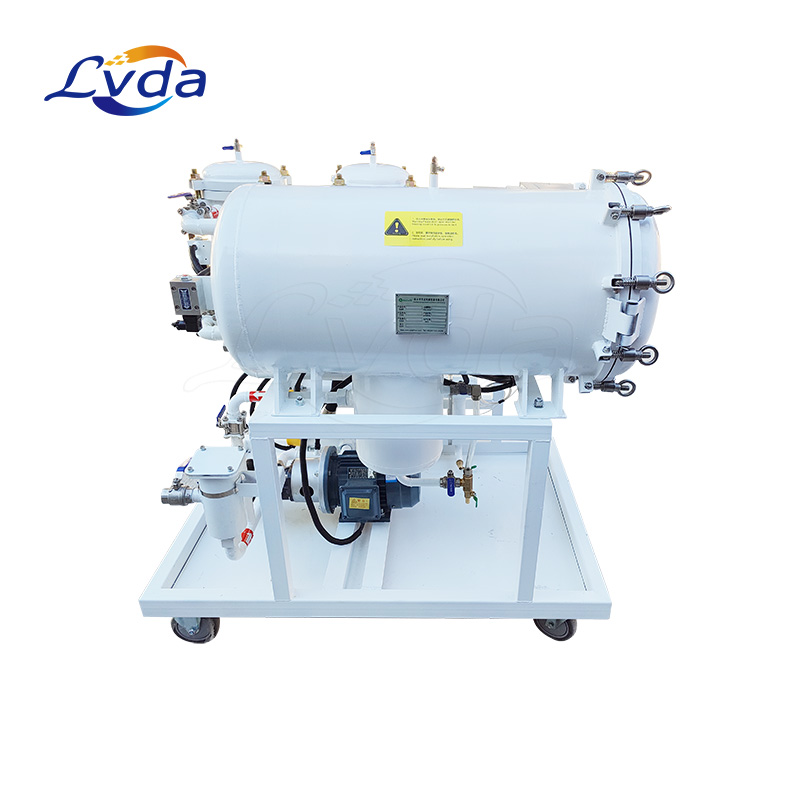

Liquid-liquid coalescing oil skimmer coalescer separator system
This system works on liquid-liquid coalescing. The system comes with low power consumption equipment with least maintenance having multiple advantages over its alternate technology of centrifugal oil purification.
Lube and hydraulic systems are prone to heavy water contamination due to cross contamination of water from heat exchangers. Water or steam chambers incase of turbines and atmospheric moisture ingress specially in humid zones of working.
Our liquid-liquid coalescing oil skimmer coalescer separator system comes with this unique technology which is capable of removing heavy water contamination & solid contamination by a single system.
The equipment works on coalescence separation technique due to different densities of water and oil. The system is capable of removing water contamination from more than 5% to less than 100 ppm (0.01%) in a short time. The system is equipped with micron level filters which can ensure solid contamination removal upto NAS 5 (ISO 15/12).
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
*Combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
*Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
*Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
*Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
*Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
*Functions of live line work onsite, vacuum drying and vacuum oil filling.
*Weather Proof designing which can be used outside even in raining weather.
*Designed for processing oil in workshops, in storage tanks or directly in transformers (energized and de-energized transformers both).
Product applications
Power plants - coal, gas, hydro, nuclear, wind, bio-mass
Steel & rolling mills
Cement mills & RMCs
Non-ferrous mineral plants – Al/Zn/Pb etc.
Coal & metal mines
Pulp & paper plants
Automobile manufacturing
Pressing, stamping, forging & foundry
Oil To Be Used: lubricant oil,gear oil,turbine oil,hydraulic oil.
