Product Details

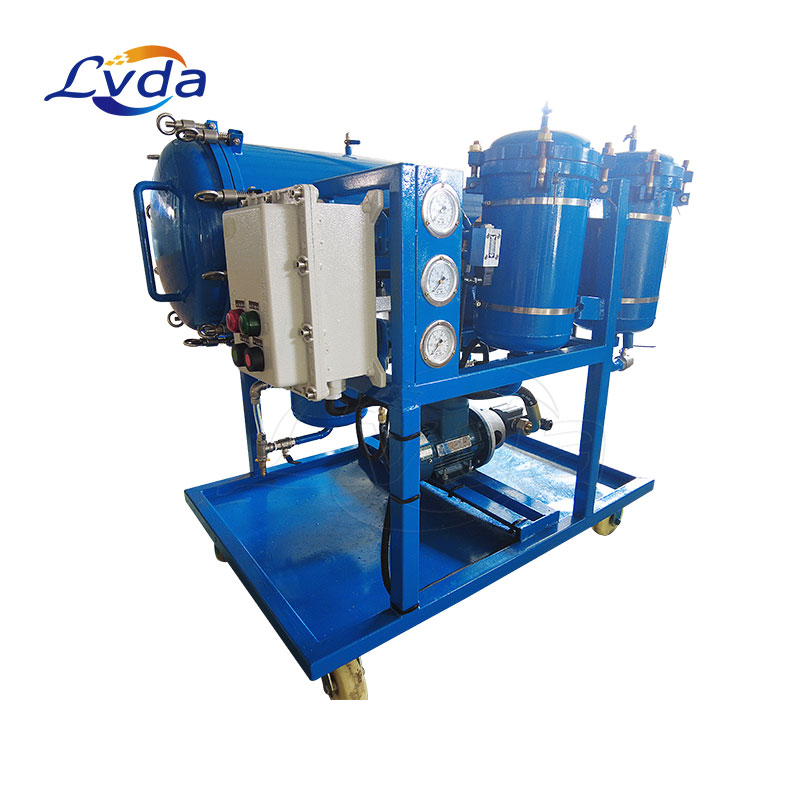

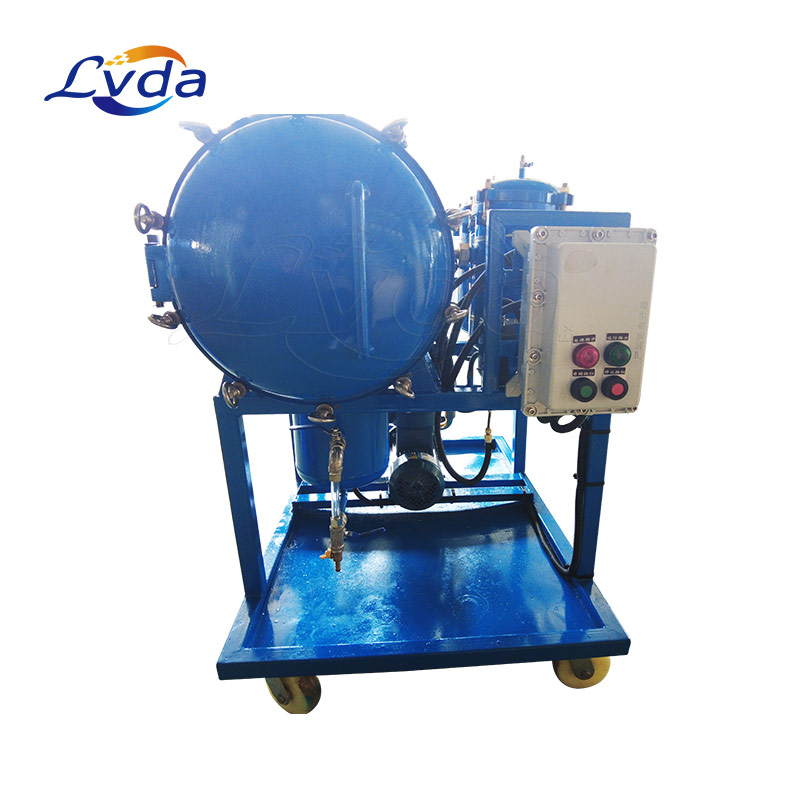

Lube oil purifier&coalescer separator system
Utilizing multi-stage coalescer and separator filter elements with micro-glass filter media technology into one system, lube oil purifier & coalescer seperator system (coalescing oil purification system) is ideal for efficient and cost-effective removal of moisture and solids contamination to achieve optimal cleanliness. High efficient coalescer and separator filter elements are designed to quickly remove large amounts of water and bring overall water content down to 150 PPM. Removal of water can protect machinery by eliminating contamination resulting from corrosion and microbiological growth. The high precision micro-filter elements are capable of removing 99% of particles over 1 micron. Meanwhile, coalescer oil purification system also can be used for purification of industrial low viscosity lube oil, hydraulic oil, light fuel etc.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
*Different pressure gauge and indicator with automatic shut-down of system.
*Low watt density heater with digital temperature controller.
*Replacement of micro-filter elements, coalescers and separators filter elements are available and easy.
*The lube oil purifier&coalescer separator system skid-mounted, self-contained or portable system. Lower disposal and maintenance costs.
*10 micron pre-filter and 1 micron fine turbine oil filter to remove solids contamination and protect the coalescer.
*Electric control panel for automatic operation.
Product applications
Mainly used for mechanical oil, hydraulic oil, oils such as compressor regeneration lubricating oil , refrigeration oil, heat treatment oil, diesel oil, gear oil, gasoline oil, etc.
