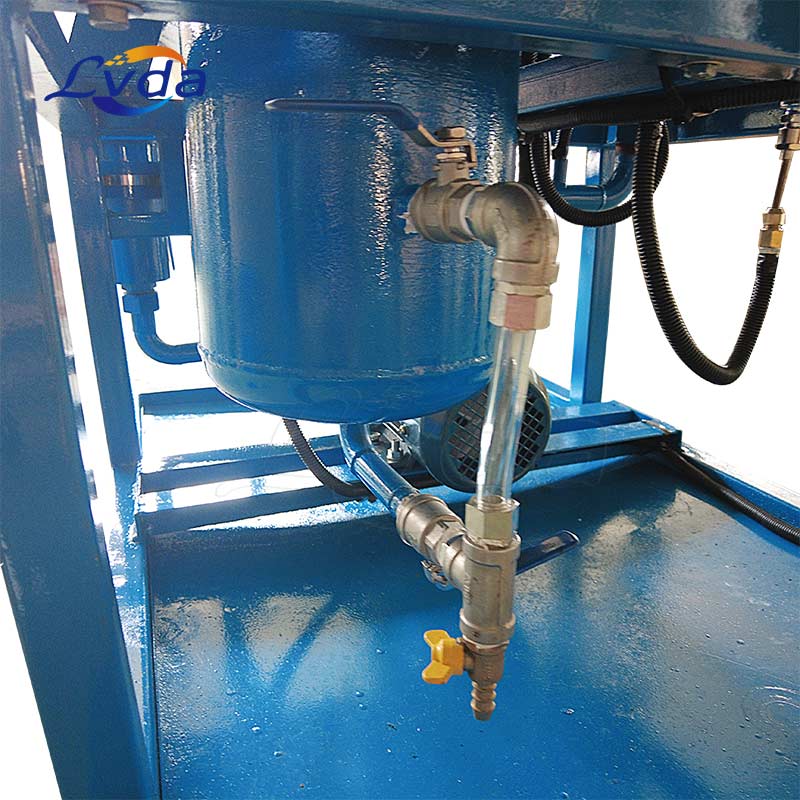

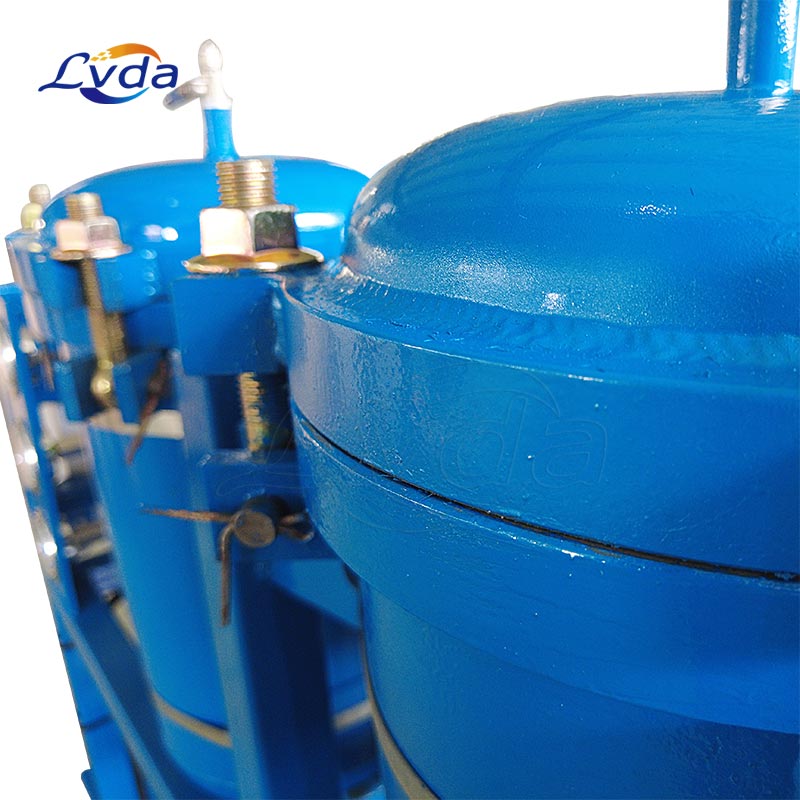

Lube oil coalescing dehydration purifier
Different liquids have different surface tensions, and when the liquid flows through the small holes, the smaller the surface tension, the faster the passing rate. When different mixed liquids flow into the separator, they first enter the coalescing filter element. The coalescing filter element has Multi-layer filter media, the pore size of which increases layer by layer. Due to the difference in surface tension, the oil passes through the filter layer quickly, while the water is much slower; and because the coalescing filter element is made of hydrophilic material, the tiny water droplets are adsorbed on the surface of the filter layer, causing the water droplets to coalesce. Under the action of kinetic energy, the small droplets compete to pass through the openings, gradually converge into large droplets, and settle under the action of gravity to separate from the oil. After the oil passes through the coalescing filter element, there are still small water droplets. Move forward to the separation filter element by inertia. The separation filter element is made of special hydrophobic material. When the oil passes through the separation filter element, the water droplets are blocked outside the separation filter element, while the oil passes through the separation filter element and is discharged from the outlet.
The Lube oil coalescing dehydration purifier integrates two functions of precision filtration and high-efficiency dehydration. There are two kinds of filter elements with different functions installed inside the coalescing separation—the coalescing filter element and the separation filter element. When some particles also flow through the coalescing separator, it undergoes four process stages: rate, coalescence, sedimentation, and separation, so as to achieve the function of filtering out particulate pollutants and holding out moisture.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
The free water in the oil is removed, and the water content after treatment is less than 100PPM.
Efficiently remove all oil-water emulsification structure in oil
Filter solid particles in oil with a cleanliness level of NAS6 or higher.
It integrates two functions of precision filtration and high-efficiency dehydration.
It has high filtration precision, large dirt holding capacity, long service life of filter element and high dehydration efficiency.
No heating, vacuuming and high-speed centrifugation, low energy consumption and low cost of use.
It will not change the physical and chemical properties of the oil and prolong the service life of the oil.
The equipment runs online, automatically controlled, and unattended.
Continuous processing of large flow.
Product applications
Mechanical processing, metallurgical industry, petrochemical industry, cement plant, electric power industry, iron and steel industry, paper industry, textile industry, purification of turbine oil and transformer oil; water removal and impurity removal of oil in hydraulic lubrication system; comprehensive access to hydraulic lubrication system Improve system cleanliness.
