High viscosity lubricating oil coalescence vacuum oil purifier
Our high viscosity lubricating oil vacuum oil purifier is used in machinery, metallurgy, mining, petroleum, chemical industry, electric power, railway and other fields to purify various high viscosity lubricating oil products. It can quickly remove harmful components such as moisture, impurities and volatiles (such as ammonia) in the oil, improve the quality of the oil and restore its performance. The machine can run online or preheat the oil tank to separately process the oil to meet the various processing requirements of the user for the oil.
Main material: High carbon steel, can be made of 304 stainless steel
Working principle: Coalescing and demulsification, vacuum separation, dehydration and degassing, step-by-step precision filtration to remove acid and impurities.
Product parameters
| Model |
A0P-D25 |
AOP-D50 |
A0P-D100 |
AOP-D150 |
A0P-D200 |
AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400
|
| Rated pressure(MPa) |
0.6 |
| Initial pressure loss (Mpa) |
≤0.1 |
| Filtered water content |
≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) |
10、20 |
Grade 2 filter rating( μ m)
|
3、5 |
| Pressure differentials |
0.2Mpa |
| Working temperature(°C) |
25- 80 |
| Recommended viscosity(cSt) |
10-120 |
| Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13
|
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860
|
| Dimensions(mm) |
1200x 800x1250 |
1350 x800x1400 |
1740x 980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features

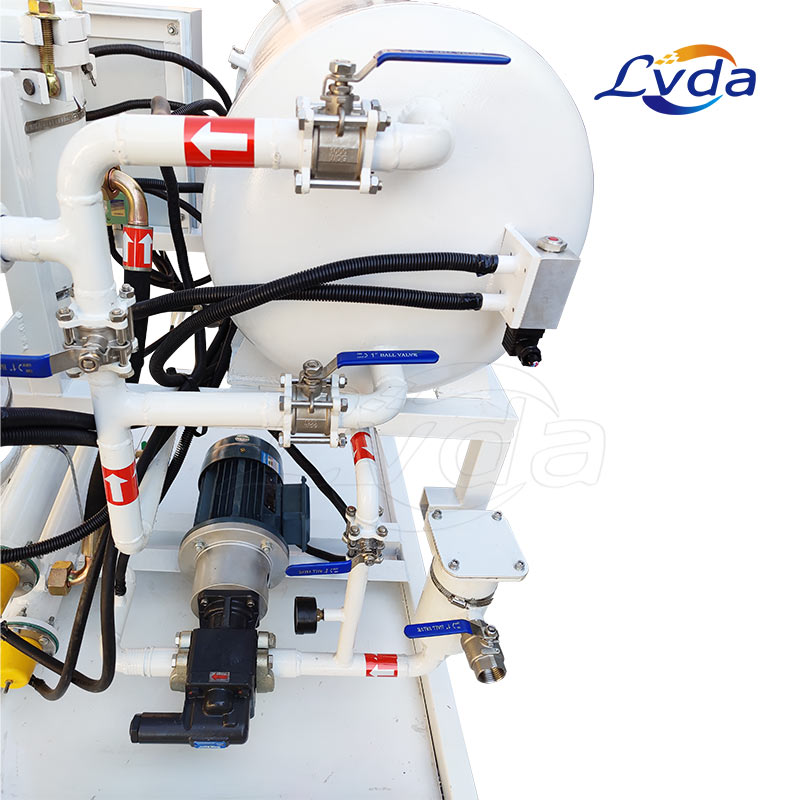

Use special oil pump to transport oil.
Unique degassing and dehydration system to quickly separate water and gas in oil.
Multi-stage filtration is encrypted step by step, with large dirt holding capacity, long service life of filter element, and automatic detection function of filter element pollution.
The heating system adopts the optimized pipeline design to ensure uniform heating and stable oil temperature.

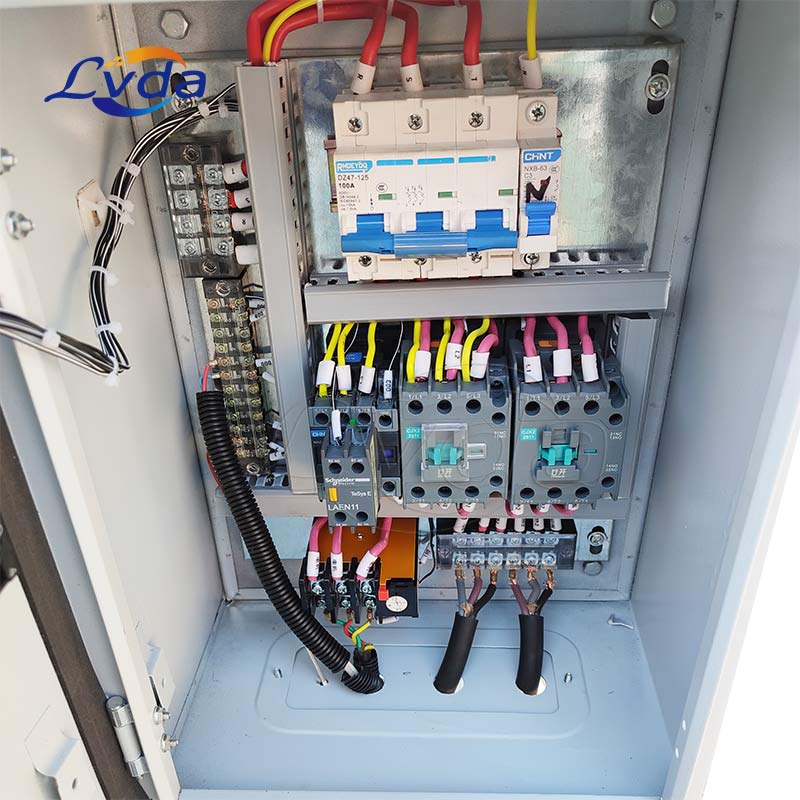

Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and sophisticated configuration ensure the high-performance operation of the equipment.
Online oil filter, can be unattended, and the running status is displayed by indicator lights.
Humanized design of this machine, low noise, simple operation, long maintenance interval, low energy consumption, saving operating cost.
Equipped with filter element replacement indicator and filter element saturation shutdown device.
Equipped with leakage and overload shutdown device to protect the motor.
Equipped with phase sequence, phase loss protection functions, and sudden shutdown safety control.
High viscosity lubricating oil vacuum oil filter optional mode
According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.
Optional online moisture detector.
The structure of the whole machine can be made into mobile type, fixed type and trailer type (half-axle or double-axle).
It can be made into fully enclosed type, canopy type, canvas awning and open type.
Optional water ring vacuum pump
Product applications
Mainly used for mechanical oil, hydraulic oil, oils such as compressor regeneration lubricating oil , refrigeration oil, heat treatment oil, diesel oil, gear oil, gasoline oil, etc.
