Product Details

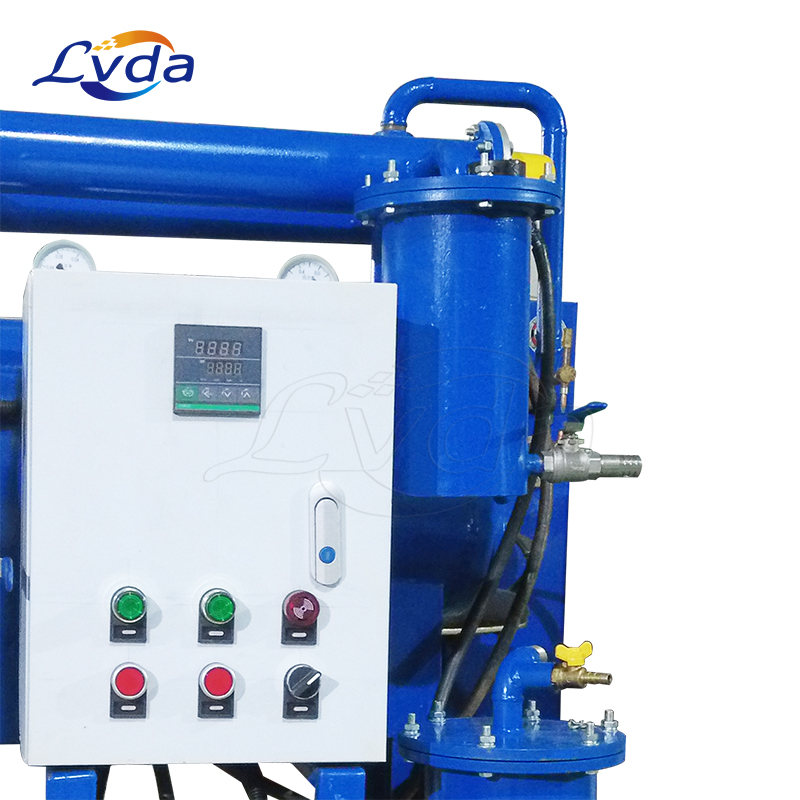

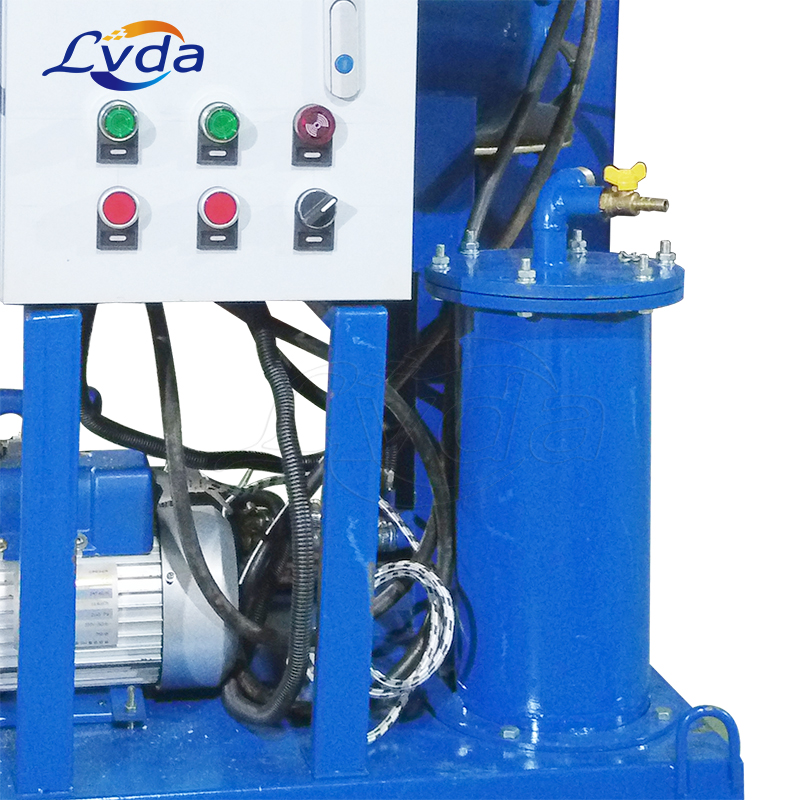

Vacuum purifier for oil
Our vacuum purifier for oil designs and builds an effective, durable, and user-friendly vacuum dehydrators on today's market . Special engineered design features maximize the water extraction rates of our oil purifiers, and top-quality components and workmanship ensure years of maintenance-free operation and performance.
Recirculating your hydraulic or lube oil with our oil vacuum purifier will help you maintain optimal fluid cleanliness in your system, extending the life of your rotating equipment and critical component parts, minimizing downtime and saving you money.
Product parameters
| Model |
AOP-1V-25 |
AOP-1V-32 |
AOP-1V-50 |
AOP-1V-100 |
AOP-1V-150 |
AOP-1V-200 |
| Flow rate(L/min) |
25 |
32 |
50 |
100 |
150 |
200 |
| Working pressure(Mpa) |
|
|
0.6 |
|
|
|
| Rated vacuum(Mpa) |
|
|
≤ - 0.095 |
|
|
|
| Water content |
|
|
5 - 30 |
|
|
|
| Air content |
|
|
≤0.2% |
|
|
|
| Coarse filtration(μm) |
|
|
100 |
|
|
|
| Grade 1 filter rating(μm) |
|
|
10、20 |
|
|
|
| Grade 2 filter rating(μm) |
|
|
3/5 |
|
|
|
| Pressure differentials |
|
|
00.2Mpa |
|
|
|
| Voltage(V) |
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
| Motor power(kw) |
18 |
26 |
36 |
65 |
65 |
135 |
| Weight(kg) |
360 |
470 |
680 |
840 |
960 |
1500 |
Dimensions(mm) |
12500x920x1600 |
1350x980x1600 |
1500x1060x1800 |
1600x1080x2100 |
1800x1200x2200 |
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type.
Product features
Our Oil Purification Systems mitigate unplanned downtime and enhance the reliability and service life of critical assets.
These robust vacuum dehydration and filtration systems are designed to rapidly remove free, emulsified, and dissolved water, dissolved gases and particulates from lube oil and hydraulic fluid.
These oil purification systems feature Absolute rated (BETA 1000 per ISO 16889 3um, 6um, 12um, and 25um) filters both upstream and downstream of the vacuum dehydration process.
These systems are designed to reach and maintain dryness levels to less than 20 PPM and ISO cleanliness codes of 16/14/10 or better.
These systems include optional Laser Particle Counters that display real time ISO 4406 Cleanliness Codes and Moisture Content information.
All our oil purification systems are offered with explosion proof certified components for service in Class 1 Div 2 or Class 1 Div 1 Hazardous Locations. Some rated components are available.
Product applications
Can be used with Varnish Removal Filters, Cellulose Depth Media Filters and other adsorptive selective medias.
H2S Removal Section
Phosphate Ester Hydraulic Fluids
Electrical utility connections
Also removes free and dissolved water, dissolved gases and particulates.
