Product Details

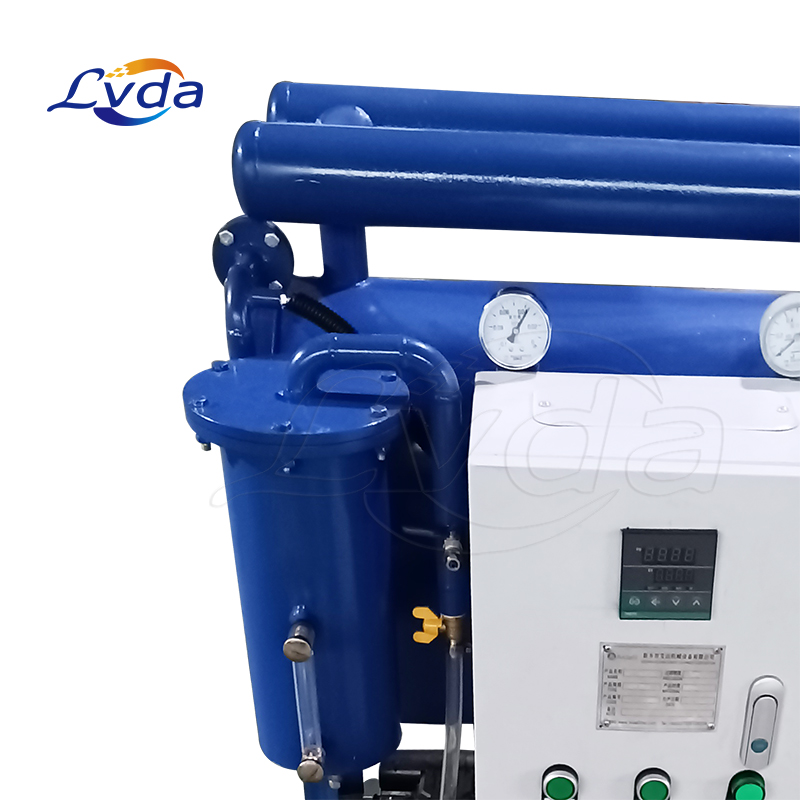

Multifunctional lubricating oil purifier
This multi-functional lubricating oil purifier is the most suitable for hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, Special equipment for purification of heat transfer oil, coking oil, etc., can quickly remove water, gas and mechanical impurities and slight acid in the oil, improve the anti-oxidative stability of the oil, kinematic viscosity and flash point, restore the lubricating oil. original features. Ensure that the power, hydraulic and lubrication systems work normally.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Using precision filter element, which has strong impurity ability, large area and deep level of precision filter material can remove fine particles in oil.
Strong demulsification ability, advanced and unique degassing and dehydration system, using three-dimensional evaporation technology, multi-level oil-water high technology, can quickly separate a large amount of water in oil, and can also remove trace water and oil in oil. gas.
Advanced condensing system, automatic high-condensation water separation device, automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic overpressure shutdown protection, backwash function and other sophisticated configurations ensure high-performance operation of the equipment, simple operation, Safe and reliable.
The heating system adopts the optimized S-shaped pipeline design, the surface load of the heater is low, the heating is uniform, there is no "dead oil area", and the oil temperature is stable. The mining and moving group heating can automatically control the heating power input according to the real-time oil temperature, and the equipment is more energy-saving.
Product optional configuration and equipment form:
According to the needs of users, it can be equipped with PLC automatic intelligent control, touch screen operation, and dynamic display.

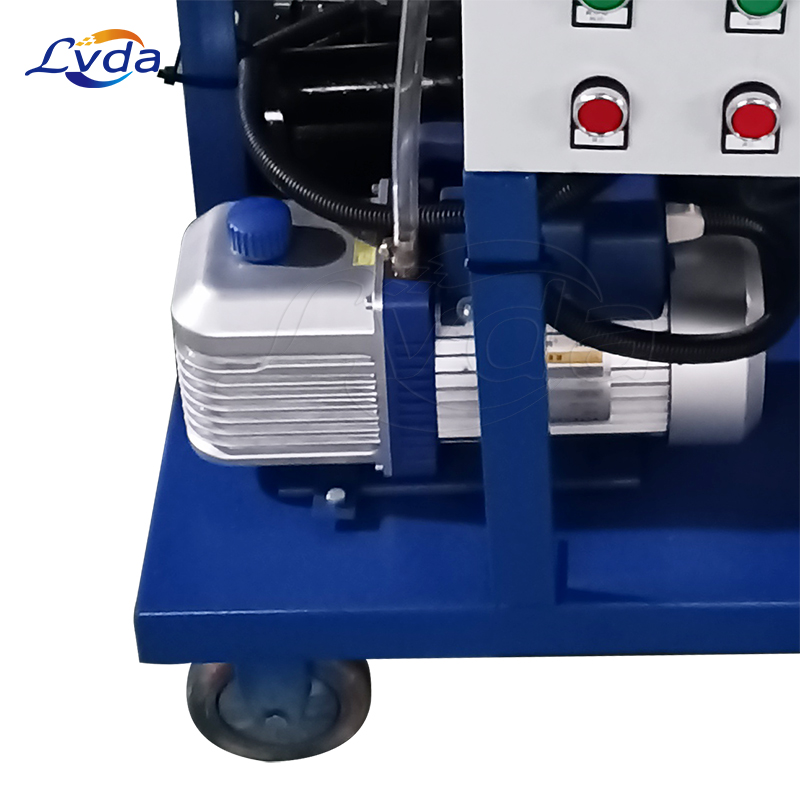

Vacuum pump, oil pump and electrical components can be selected from domestic, imported and joint venture famous brands. Optional flowmeter with totalizing function.
ExdlI BT4 or ExdlI CT4 explosion-proof grade can be selected according to the customer's use environment.
The structure of the whole machine is generally mobile open type, and can be specially made into fixed type, fully enclosed type, closed type, canopy type, canvas awning and trailer type according to user requirements.
Product applications
It is suitable for various types and grades of various types of machinery oil, gear oil, refrigeration oil, hydraulic oil, compressor oil, quenching oil, internal combustion engine oil and other industrial oils to be purified after deterioration during use and transportation. deal with. It can quickly remove moisture, gas, impurities, volatiles and acidic substances in lubricating oil, ensure the cleanliness, moisture, viscosity, flash point and other technical indicators of lubricating oil, and restore the performance of oil, thereby ensuring hydraulic pressure. The normal operation of the system, power system and lubrication system.
It is widely used in the purification treatment of various lubricating oils used in machinery, chemical industry, oil field, mining, metallurgy, transportation, manufacturing and other industries.
