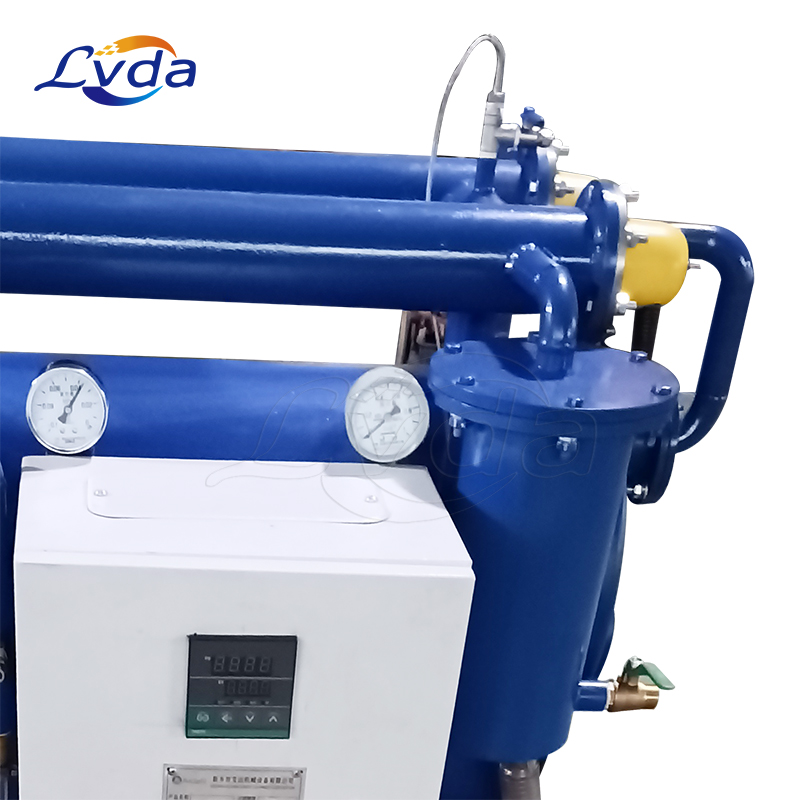

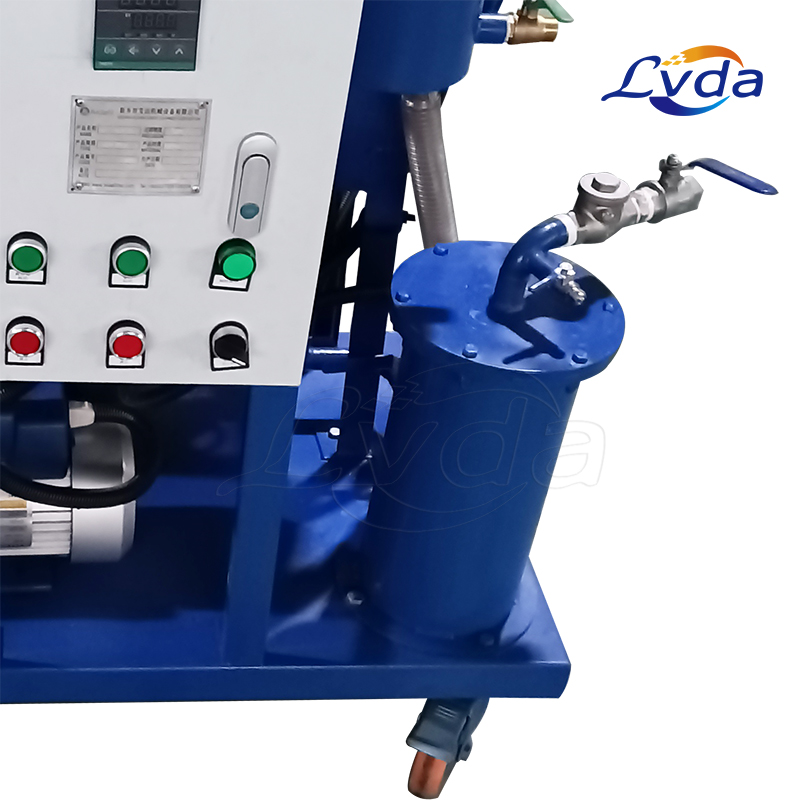

Two-Stage Vacuum Oil Purifier
Two-Stage Vacuum Oil Purifier is widely used in unqualified lubricating oil, hydraulic oil, refrigeration oil, anti-wear hydraulic oil, compressor oil, heat transfer oil, coking oil, mechanical oil, cooling oil, gear oil, diesel oil, heat treatment oil Purification and regeneration of high-precision oil products. It can quickly break emulsification, remove water, gas (methanol, ethanol acetylene, hydrogen methane, ammonia gasoline and other harmful components) and mechanical impurities and acids in oil, improve the antioxidant stability, kinematic viscosity and Flash point, reduce friction coefficient, restore the original characteristics of lubricating oil, and ensure the normal operation of power, hydraulic and lubrication systems.
It adopts large-volume three-dimensional three-dimensional flash evaporation and thin-film atomization evaporation technology, and has super dehydration and demulsification ability.
It adopts coalescence separation technology, which can quickly remove a large amount of water in the oil.
Its special filtration system: the coarse filter is equipped with permanent magnets to intercept metal impurities, protect the oil pump and prolong the service life of the fine filter, and adopts three-stage filtration of ultra-fine filter material, which can absorb large amounts of dirt, remove impurities in a large area, and remove impurities. Equipped with overpressure alarm shutdown device.
Its high-quality sealing material is resistant to corrosion, high temperature, and good mechanical strength, which satisfies the concern that high-viscosity oil needs to be heated up, and increases its application range.
It is safe and reliable and is equipped with a heating system with automatic constant temperature control device to ensure uniform heating, stable oil temperature, and will not cause partial carbonization of oil.
Its advanced pressure protection, stable mechanical float or infrared liquid level control system, easy to operate.
Its strong wind condensation system can quickly condense and settle the water vapor and oil vapor extracted by the vacuum, which greatly increases the service life of the vacuum pump oil and vacuum pump.
The whole machine is equipped with interlocking safety protection function, the oil pump is interlocked with the heating system, and is equipped with overload protection, motor thermal relay protection and phase sequence, phase loss, leakage and other protection functions.
Its whole machine components are made of domestic high-quality high-performance or imported components, which can be operated online and separated from man-machine, and the operation is safe and reliable.
According to the user's requirements, the machine can adopt the double system design of the filter element quick conversion type, so that the filter element can be replaced and cleaned without stopping the machine.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions
(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Two-stage vacuum, high pumping speed and advanced drying and degassing system, using large-area three-dimensional flash evaporation technology, can quickly and effectively remove moisture, impurities, hydrocarbons and other harmful components in the oil, improve the flash point and withstand the durability of insulating oil. voltage strength.
It can meet the requirements of vacuuming and vacuum oiling the transformer body at the installation or maintenance site.
Precision filtration system, high-quality filter element, multi-stage filtration, and step-by-step encryption can effectively remove mechanical impurities in the oil, and set the automatic detection function configuration of filter element pollution degree.
Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and excellent configuration ensure the high-performance operation of the equipment.
Online oil filter, unmanned operation, the operation status is displayed by the indicator light.
This machine has humanized design, low noise, convenient operation, long maintenance period, low energy consumption, and saving operating costs.
The whole machine is equipped with integrated safety protection, and the oil discharge system, vacuum system and heating system are interconnected.
Equipped with filter change indicator and filter saturation shut-off.
In the event of a leak, install an overload cut-off to protect the motor.
With phase sequence, stepless protection function, sudden shutdown safety control.
Equipped with a transformer external vacuum suction interface.
Provides the conversion function of in and out oil.
optional mode
According to user needs, intelligent PLC control, touch screen operation and dynamic display can be selected.
Optional online moisture detector, online particle detector and flow meter with accumulation function.
The frequency converter can be selected, and the flow rate can be selected according to the needs.
Structure
mobile, stationary, trailer (half-axle or double-axle), fully enclosed, covered, canopy, open.
Product applications
Metallurgy, mechanical oilfield, chemical, mining, electric power, transportation, manufacturing and other industries purify hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil, etc.
