Product Details

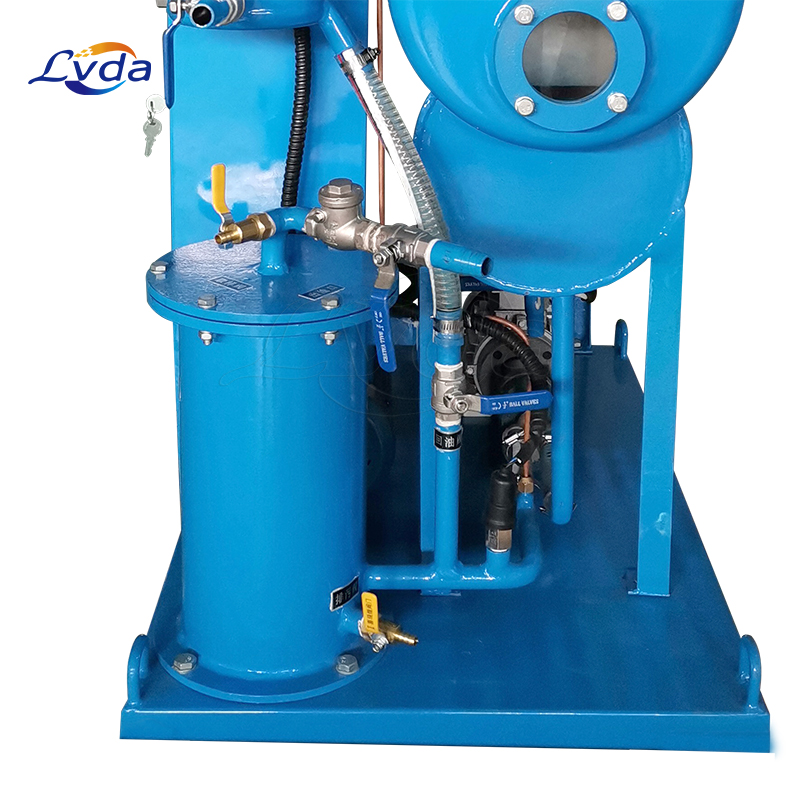

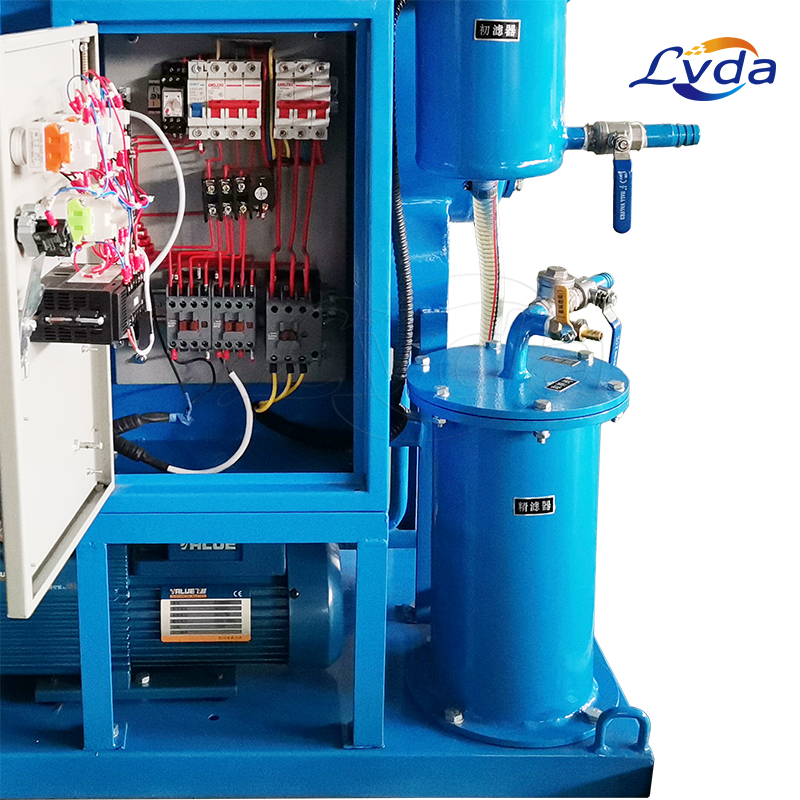

Vacuum Dehydration Units & Oil Filtration Systems is a high efficient vacuum oil purifier, and is one of the new type machine which is researched and developed basis on the technology at home and abroad. It adopts PLC control system and realization of intelligent automatic control, easily operating and effectively degassing, dehydrating, purify the mechanical impurities, making the oil reach the standard and operating speed and quality up to the world advanced level, it owns higher performance compared with the similar products in the world.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions
(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
Petrochemical and other industrial and mining enterprises to filter moisture, gas and impurity particles in transformer oil, turbine oil, hydraulic oil and other oils.
Impurities can generally meet the requirements after multi-stage mechanical filtration, and it is difficult to achieve the ideal level after repeated separation of water and gas in the oil. Therefore, the core part of the vacuum oil purifier is the vacuum degassing and dehydration separation system. The separation effect and efficiency of a vacuum oil filter mainly depend on the performance of the separation tank, and the performance of the separation tank mainly depends on the form of oil in it.
Domestic VACUUM DEHYDRATION UNITS & OIL FILTRATION SYSTEMS can be summed up into three types, namely volume, mist, and oil film.
The volumetric separation process is the simplest. Its characteristic is that the oil forms a whole state in the separation tank that fills the tank wall. When the space above the oil is evacuated, the water vapor is only volatilized from the top, and the volatilization area is small and the efficiency is very low.
Product applications
To filter high-viscosity lubricants
To fll-up high-viscosity lubricants
The by-pass filtration for working hydraulic lubricants system
