Hand-driven brush type cleaning filter

Product Details

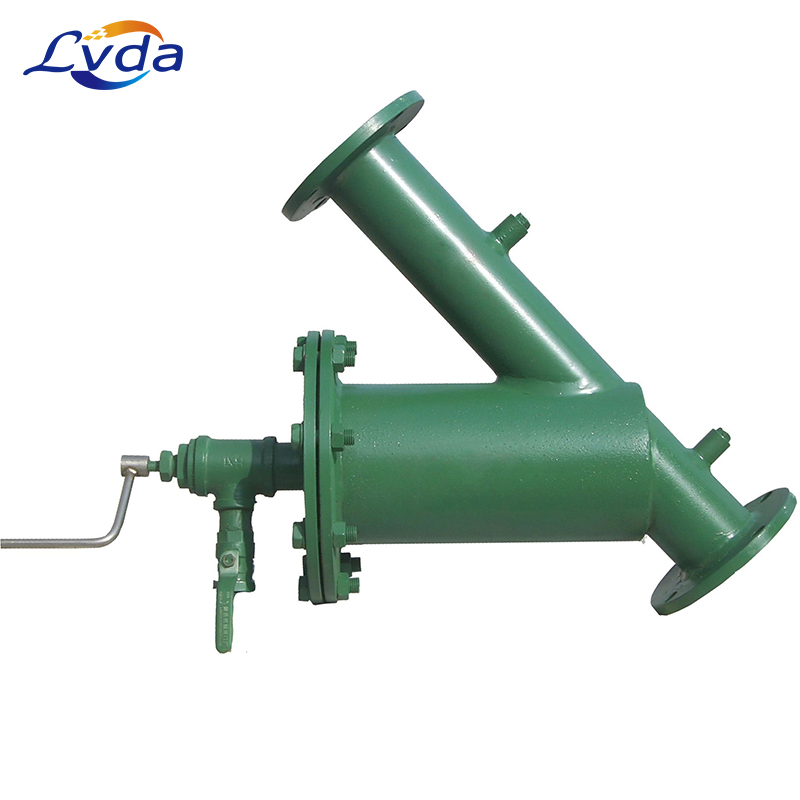

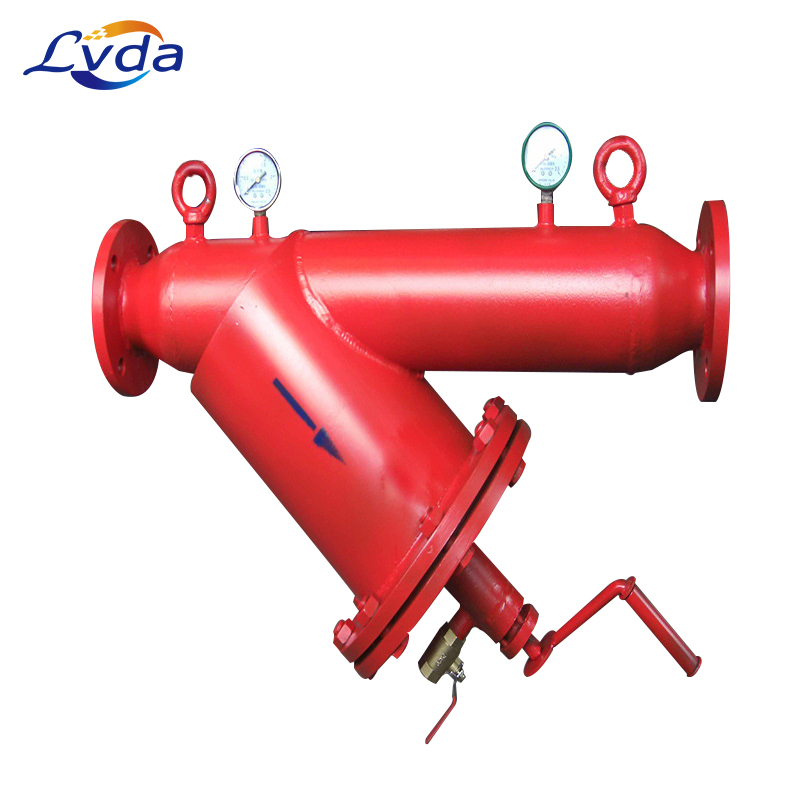

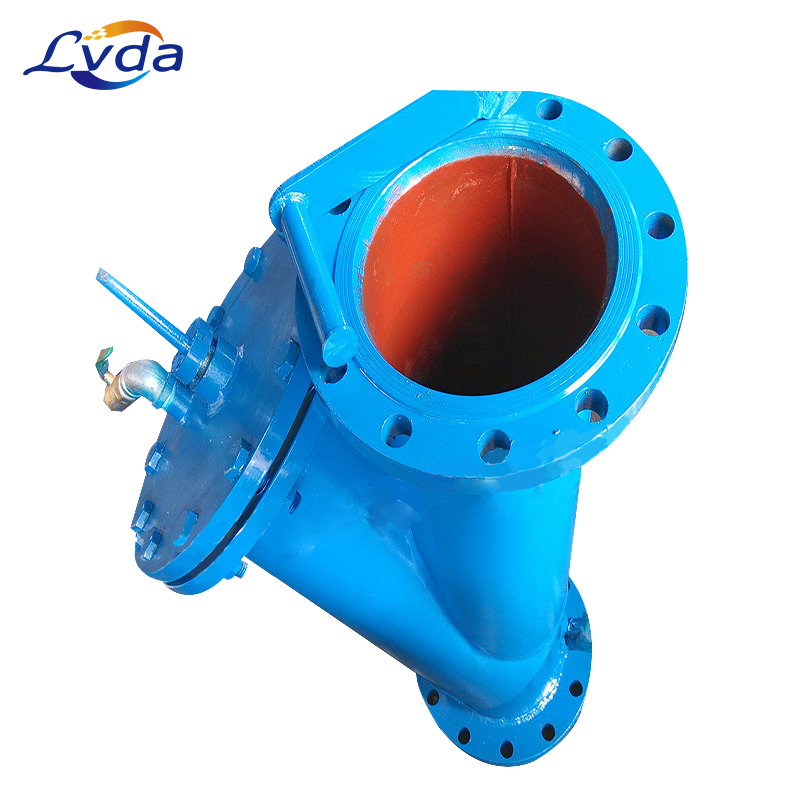

Hand-driven brush type cleaning filter is a modified version of the auto self-cleaning filter. When impurities were intercepted on the wedge-shaped strainer, the pressure differential of inlet & outlet would occur. When the pressure differential reach a determinate level, the self cleaning would be automatically operated.

When the self cleaning is in progress, there is no need to dismantle any components. By opening the drainage valve and then spinning the handle 3-4 rounds, the self cleaning could be finished effectively.

Technical data:

Features:

1.Linear structure, which was considered as the most sophisticated design for saving space.

2.High-precision & high-impact wedge-shaped strainer, the precision could reach 100-3000 micron.

3.Easier cleaning method: Stainless steel brush type.

4.No cutoff during the backwash process.

5.Very little water consumption, which is less than 1% of total flow.

Applications:

1.Steel industry: Water treatment and filtration of raw material yard, sintering ball plant, filtration of cooling water in blast furnace, rolling mill, continuous casting machine and other systems, filtration of impurity in high pressure water phosphorus removal system.
