Product Details

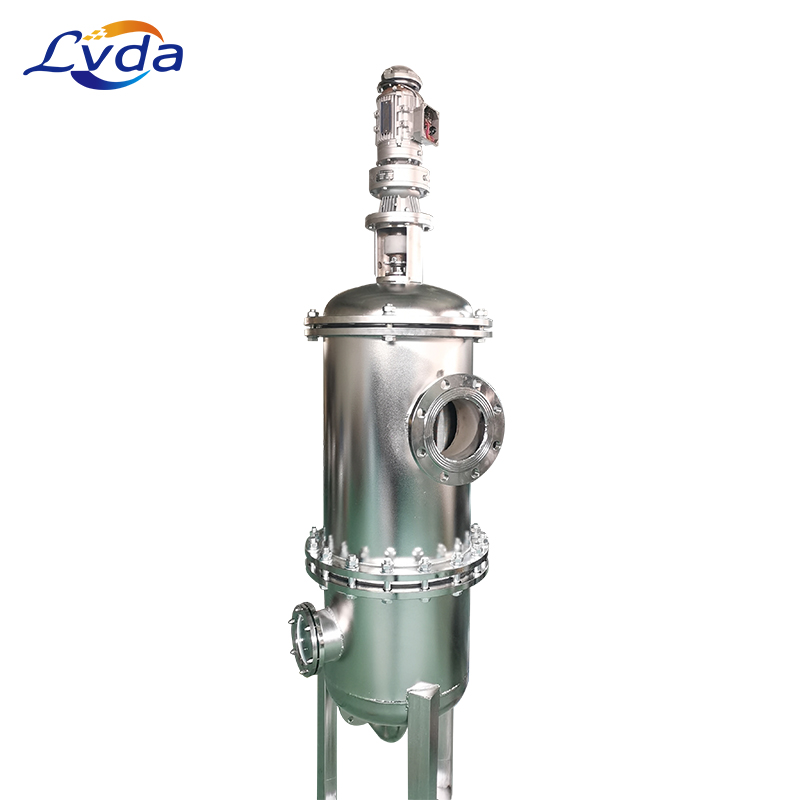

Automatic backwash filter is used extensively in the filtration of light chemical industrial waste water or circulating water in industrial water, seawater, food, and pharmaceuticals; emulsion liquid regeneration; filtration of waste oil, liquid raw materials; drainage and circulating water system in metallurgy, petrochemical industry and power plant.
It could effectively protect the environment, by making the industrial sewage meet the national wastewater discharge standards.
Technical data:
Pecision
| 5-3000 micron
|
Flow range
| 4.5-7000m3/h
|
Pressure rating
| 10bar / 16bar / 7bar
|
Temperature
| 90℃
|
Motor mode
| electric speed reducer / pneumatic speed reducer
|
Features:
1.New pattern internal mechanical structure, which authentically realized flushing function. It could effectively remove the particles intercepted on the strainer without blind angle and flux depression, which will bring protection for filtering effect and its span life.
2.High intensity and high accuracy materials have been adopted to the wedge-shaped filter elements, like304、316L、 2205、MONEL, etc. The precision could reach 25 micron.
3.Auto backwash would be in progress according to the retrieval and strain functions on itself, which could make the machine totally independent of hand operation and cope with unstable fluctuations of water quality.
4.Agile control system, which could adjust the backwash pressure difference and time settings according to the different water sources and filtration precision.
5.The backwash of strainers would be operated successively, to ensure that other strainers could work normally when the backwash are under way.
6.Pneumatic discharge valve was adopted, which could bring less water consumption and shorter duration, to be more economical and environmentally safe.
7.The working state would be shown on the touch screen display, the pressure differential and time settings would be easy to operate.
8.The operation and maintenance cost would be very low, because there is no rapid wore part or consumptive material.
Applications:
1.Iron and steel: Be used for the filtration of raw material field and sintered ball plant; cooling water filtration of blast furnace, mill, continuous casting machine and other systems; and impurity filtration of high pressure water phosphorus removal system.
2.Automobile: Be used for coating production line, and water treatment system in the manufacturing of cars, tractors, motorcycles and engines.
3.Power plant: Be used for the pre-treatment part of high-purity water preparation of power plant boiler; Filtration of generator cooling water and sealing water; side or full filtering treatment when When the water consumption of system is excessive.
