Product Details

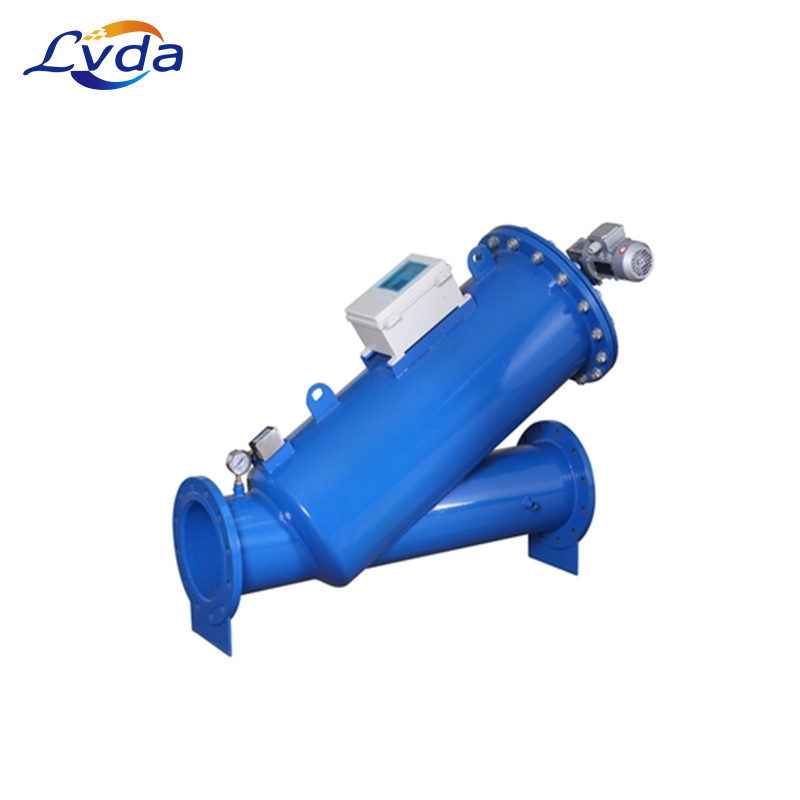

The automatic self-cleaning Y type filter is aimed at intercepting most impurities on the strainer directly. It could reduce turbidity of the waste water by removing the suspended and particulate matters, thus offering water of higher quality.
The final aim is to prevent filtration system from dirt, bacterial algae, rust and ensure smooth operation of mechanical equipment.
Technical data:
Rated flow
| 20-3000m³/h
|
Working pressure(min)
| 0.2MPa(g) (customizable)
|
Working pressure
| ≤1.6MPa(g)
|
Inlet&outlet
| DN50-DN700
|
Working temperature
| ≤80℃ (customizable)
|
Precision
| 100-3000micron
|
Motor power
| 0.37-1.1kw
|
Self-cleaning flow
| ＜1% of total flow
|
Self-cleaning duration
| 15s (adjustable)
|
Pressure differentials
| 0.5Kg/cm² (adjustable)
|
Features:
1.Fully&continuously automatic filtration, which could directly reduce labour costs and meet the requirement of automatic operation.
2.No occurring of disposable filter materials, which could save cost of consumables and environment treatment.
3.Negligible pressure differentials&steady rated flow, which could be beneficial to a stable technique and less energy consumption of pipeline.
4.Totally enclosed filtration, to avoid leakage of dangerous materials.
5.Avoid the loss of high-value materials, by the recovery from effluent with impurities in heavy concentrations.
6.Multiple combinations of modules and powerful automation modes are optional, which could meet different filtering demands.
Applications:
1.Iron and steel: used for water treatment and filtration of raw material field and sintered ball plant; Cooling water filtration of blast furnace, mill, continuous casting machine and other systems; Impurity filtration of high pressure water in phosphorus removal system.
2.Automobile business: used for coating production line; Manufacturing of car, tractor, motorcycle, engine; Water treatment system.
3.Power plant: used for the precision pretreatment part for high-purity water preparation of boiler of power plant; Filtration of generator cooling water and sealing water; Side filter treatment when the water consumption of 13-4 is extremely large.
4.Petrochemical industry: used for side filtration treatment in the circulating water field (can be treated in parallel by single machine or multiple models) instead of the filtration of filter materials, to reduce its filtering load, which could avoid a lot of water consumption for washing.
5.Agriculture, garden and paper making plant: used for reducing blockage and abrasion of equipment which were caused by impurities in the system containing nozzle, in need of high-precision and highly automated filters.
6.Machinery, food and other industries: used for automatic and high-precision filtration of the system, to prevent the blockage of cooling water system.
7.Mine: used for filtering the underground shower water, to ensure the normal operation of the whole system.
8.Water supply and sewage treatment: used for the pretreatment system to improve operation efficiency of the system.
9.Drinking water treatment; construction circulating water treatment; industrial circulating water treatment; sewage treatment; mining water treatment, golf course water treatment, etc.
10.Construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar, pharmaceutical, plastics, automobile industry and other fields.
