Stainless steel duplex filter for the filtration of liquids

Product Details

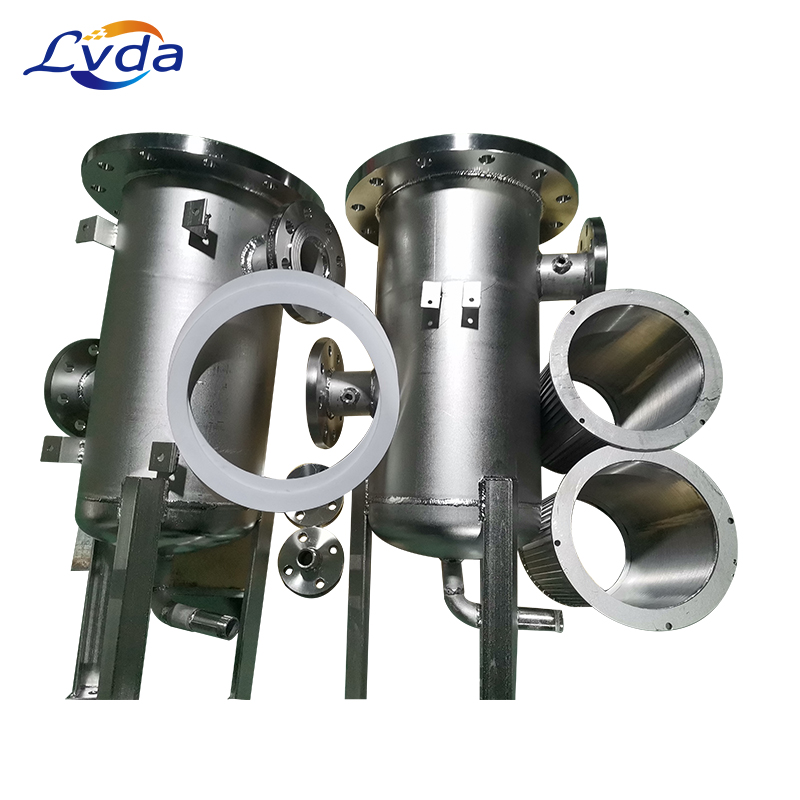

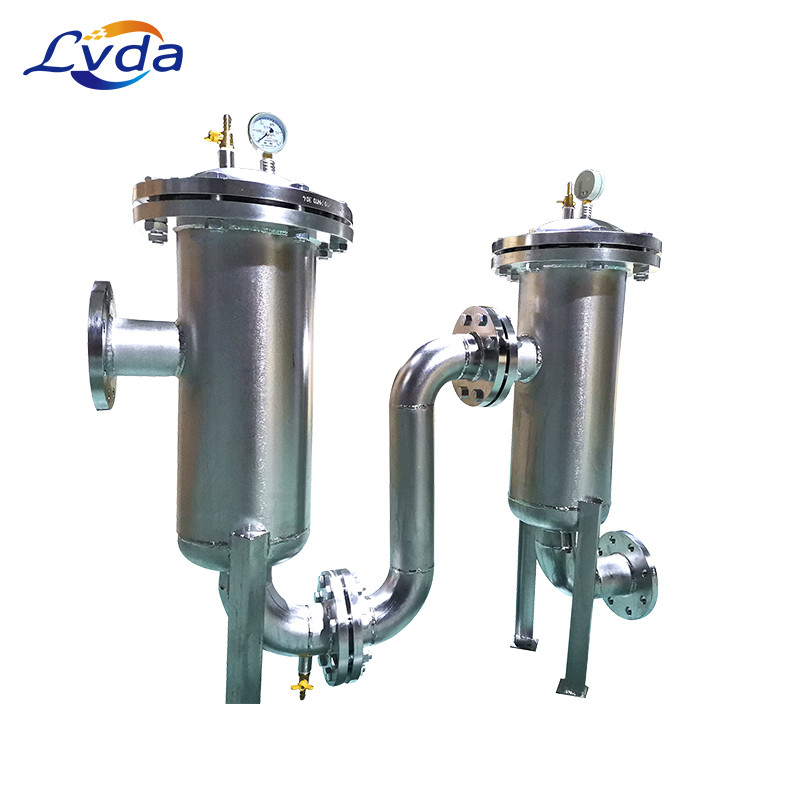

Stainless steel duplex filter, a multipurpose filter, consist of two parallel stainless steel filters, which could be used in a wide range of industries for its excellent adaptability and handy operation.

Our products are fully made of stainless steel. Both of the cylinders contain single-layer stainless steel welded structure and polished inner&outer surface, with a purge valve installed on the top for the deflation while operating.

There is a special technology adopted to the connection between conduit joints. And the performance of threaded screw plugs to start over and shut down turns out to be perfect, by the hydraulic testing under a pressure condition of 0.3Mpa.

It is proved that the filter is handy for operation and maintenance, owing to its compact, novel and rational structure.

Technical data:

Advantages:

1.Not only single-machine mode but also dual mode is available, which could bring a expansion to the flow of filtering. The continuous operation could be ensured, for which the machine will be used into the production lines without downtime.

2.The machine cleaning or maintenance could be done without closing down the main engine, which greatly improves its working efficiency and saves a lot of time. The continuous operation for 24 hours could be achieved, in comparison with the traditional filters.

3.There is a lower probability of side leakage, which could ensure steady precision of the filter bags. And the operational cost could be reduced because filter bags could be replaced swiftly and there is not going to be any material consumption during the process of filtering.

Applications:

1.Weak corrosive materials: water, ammonia, oil products, and hydrocarbons, etc.

2.Corrosive materials: caustic soda, dilute sulfuric acid, carbonated acid, acetic acid, etc.

3.Low temperature materials in refrigeration: liquid methane, liquid ammonia, and liquid oxygen, etc.

4.Food industry and pharmaceutical substances: alcoholic, beverage, milk products, food, foodstuff pulp, etc.
