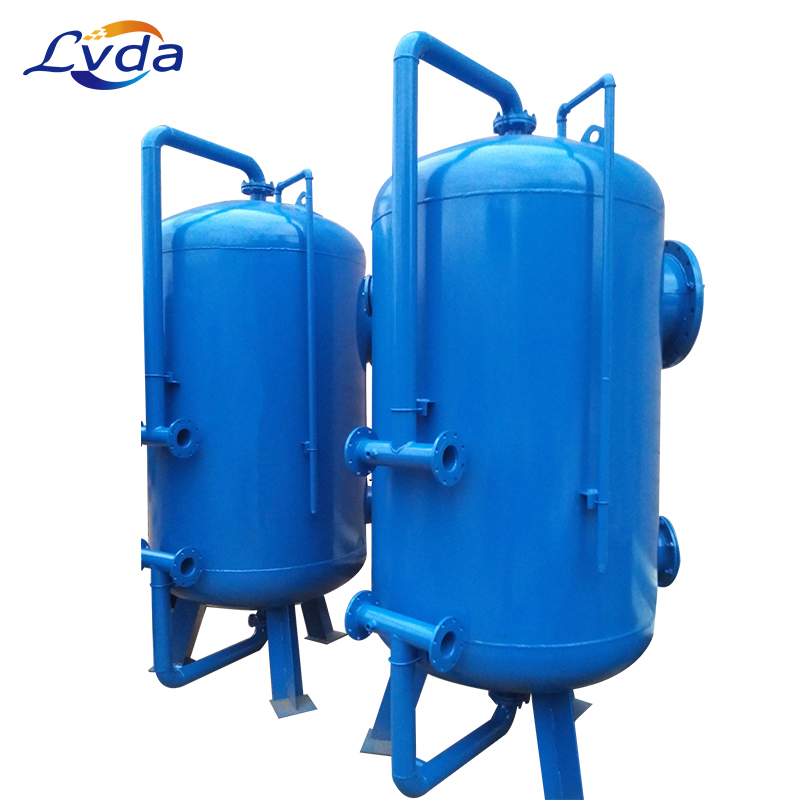

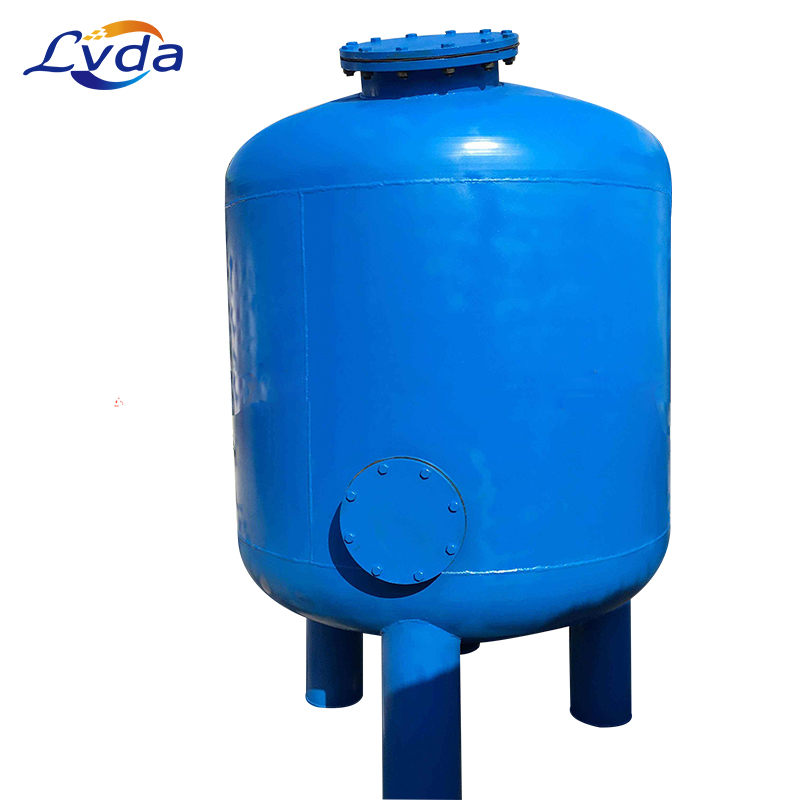

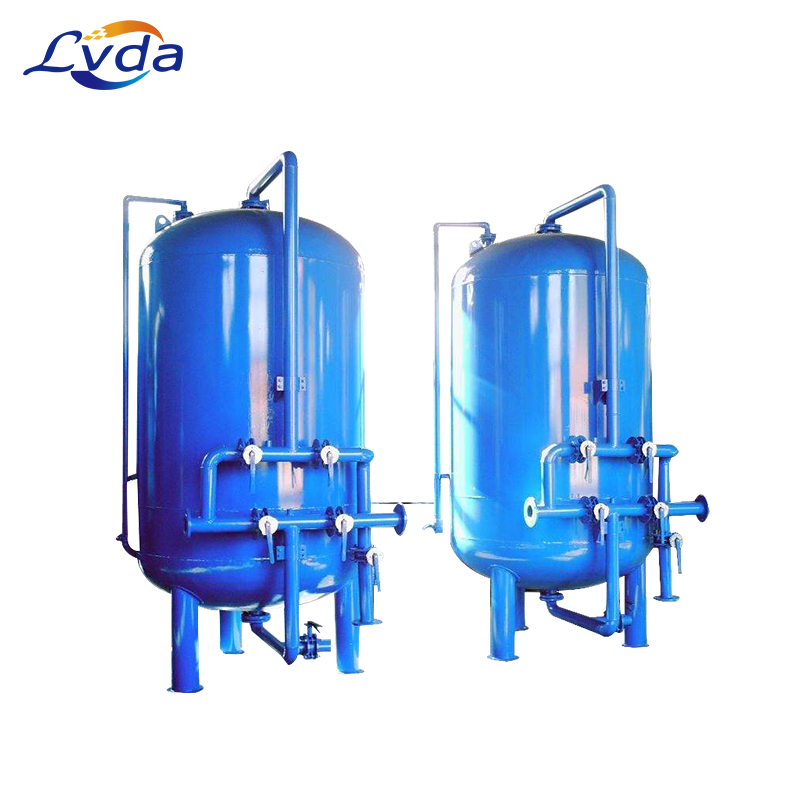

Quartz sand filter for industrial pretreatment

Product Details

Quartz sand filter could reduce the SDI value of water by removing the large-particle suspended matters, which could meet requirements of deep purification. By virtue of its simple structure, the machine is easier to operate backwash.

It would change the direction of water by adjusting 4 valves, and then drain the sewage by a blowdown valve. The conventional flushing would not stop until the spurted water becomes clean.

Technical data:

Features:

1.Compact structure which integrates condensation reaction, filtering with continuous cleaning, to simplify the process of water treatment, reduce the cost of labour consumables and the degree of operating difficulty.

2.Good effects of condensation reaction, which could remove suspended matters and colloidal substances from water, to further reduce the turbidity of spurted water in the sand filter area, through the application of condensation reaction mechanism sedimentation mechanism.

3.Continuously self-cleaning filtration, which means that the filter medium would be automatically cycled without closing down.

4.Longer service life given by the specific materials.

Applications:

1.Be used in the water systems with a requirement of turbidity ≤5mg/L which could meet the quality standards of drinking water, like industrial water, domestic water and municipal water supply system.

2.Removal of suspended matters and solid matters from industry sewage.

3.Be regarded as pretreating devices in the softening desalting system by ion exchange method.

4.Work as a coarse filter in the industries which don’t have very high requirements for water quality.

5.Be used in the swimming pool circulation treatment system, cooling circulating water purification system, etc.
