Product Details
Brief introduction
Bag filter is a kind of multi-purpose filtration equipment with novel and
reasonable structure, good sealing performance, strong flow capacity, easy
operation and many other advantages. It has a wide range of applications and
strong adaptability.
Structure and working principle

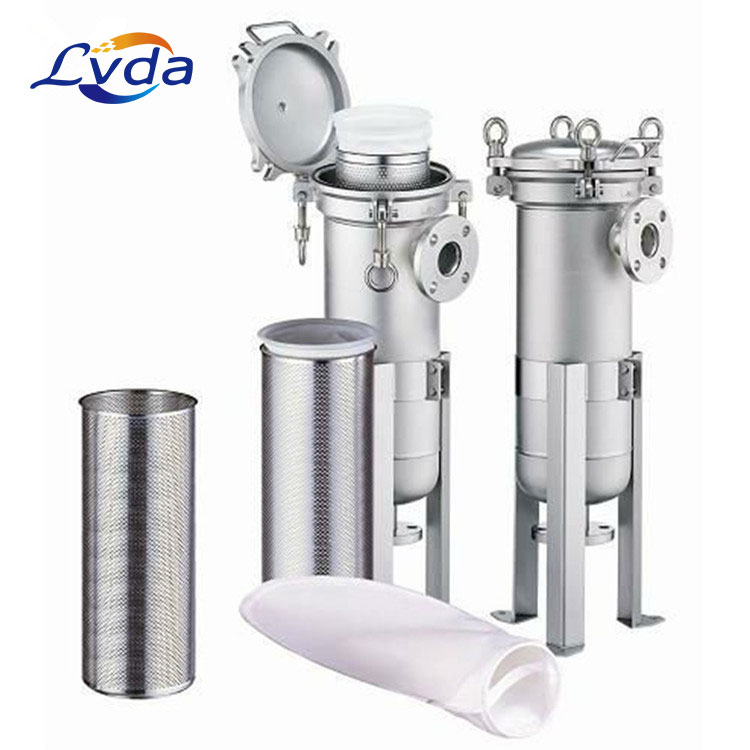

bag filter is a pressure filter device, mainly composed of filter cylinder,
filter cylinder cover, quick-opening mechanism, stainless steel filter bag
reinforcement net and other main components. The tube flows into the filter bag,
and the filter bag itself is installed in the reinforced mesh basket. The
qualified filtrate can be obtained by the liquid infiltrating the filter bag of
the required fineness grade, and the impurity particles are intercepted by the
filter bag. The machine is very convenient to replace the filter bag, and there
is basically no material consumption for filtration.
Basic parameters
Principle: pressure filtration
Usage: liquid filtration
Style: bag type
Performance: fine filter element
Applicable object: liquid
Applicable object nature: materials with high hygiene requirements
Filter type: non-woven
Main material: long fiber non-woven fabric
Scope of application: chemical, pharmaceutical, automobile, light industry,
food, electroplating and other industries
Product Category
Bag filters mainly include the following categories: single-bag filters,
multi-bag filters, rocker bag filters, high-precision bag filters, etc. For
example, the multi-bag rocker filter produced by Xinxiang Aida Machinery
Equipment Co., Ltd. The filter accuracy is in the range of 1-10 microns.
5. The main advantage
The possibility of side leakage of the filter bag is small, which
effectively guarantees the filter quality.
Bag filter can carry larger working pressure, small pressure loss, low
operating cost and obvious energy saving effect.
The filtration precision of the filter bag has been continuously improved,
and it has now reached 0.5μm.
The bag filter has large processing capacity, small volume and large dirt
holding capacity.
Based on the working principle and structure of the bag filter system, it
is convenient and quick to replace the filter bag, and the filter is free of
cleaning, saving labor and time.
The filter bag can be reused after cleaning, saving cost.
The bag filter has a wide range of applications, flexible use and various
installation methods.
Specification

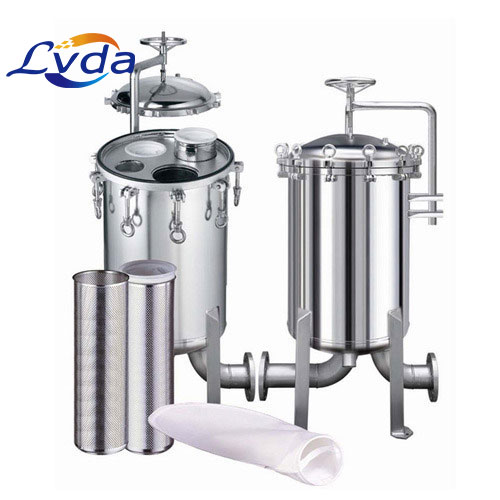

Bag filter is divided into: single bag filter, multi-bag filter and sandwich
filter. Multi-bag filter, suitable for large flow filtration. From 2 bags to 24
bags, the specifications are complete, the diameter of the inlet and outlet
flanges is φ40-450MM, and the maximum flow rate of a single machine is
90-1000m3/h. Quick-opening design is available, and filter bag replacement is
very convenient. It is also suitable for occasions where you want to replace the
filter bag after a long period of use. The multi-bag filter is difficult to
operate by one worker due to its large volume and heavy top cover. Adding a
rocker device to this filter can reduce labor costs and meet customer
requirements.
Bag filter application
Food and beverage: sugar filtration, spice filtration, tea beverage
filtration, alcohol, mineral water, beer, etc.;
Water treatment: system purification in cooling devices, oil field water
injection and well-free filtration, power plant condensate water purification
and ion exchange resin recovery;
Chemicals: catalyst recovery carbon removal ink and filter aid;
Adhesive: In addition to acrylic adhesive gel, in addition to PVC coagulation
hot melt polymer filtration;
Lubricating oil: filter the lubricating oil before packaging, and filter the
lubricating oil in addition to the filter agent;
