Product Details

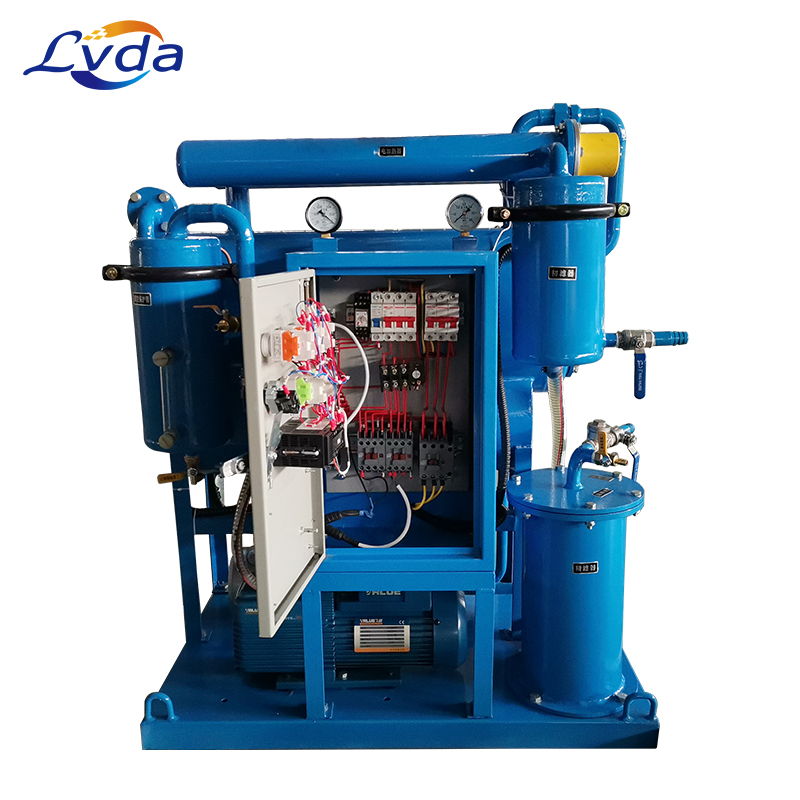

AOP-1V series efficient vacuum oil purifier is a piece of dedicated equipment for improving the properties of unqualified transformer oil, switch oil, transformer oil and capacitor oil in the lubricating system, in order to ensure smooth operation and prolong the maintenance period of the lubricating system.
It can rapidly remove a series of hazardous substances including free water, gas(Acetylene, hydrogen, methane, etc.) and particulate matters from oil and effectively improve the pressure resistance value of the insulation oil by physical means, which could never change the components and properties of the oil.
AOP-1V series specialize in purifying unqualified transformer oil, switch oil, transformer oil and capacitor oil in the lubricating system.
Both online processing of unqualified transformer oil and vacuum oiling of electrical equipment exposed to moisture could be finished by this product.
Technical data:
Flow rate
|
25 L/min |
Rated pressure
|
0.6Mpa
|
Rated vacuum degree
|
≤-0.095Mpa
|
Water content
|
5-30 |
Coarse filtration
|
100 micron |
Grade 1 filter rating
|
10、20 micron |
Grade 2 filter rating
|
3、5 micron |
Pressure differentials
|
0.2 Mpa |
Voltage
|
AC 380V(Three-phase)，50Hz
|
Motor power
|
18 kw |
Features:
1.Optimized structure design: which increases the surface area of the oil in the vacuum system and maximizes the stroke of the oil in the vacuum system.
2.Advanced anti-foaming system: so that the oil injection phenomenon which is common in similar products will never show.
3.Three-stage filtration and the coarse filter: which protects the oil pump and prolongs the service life of the main filter.
4.Special gradual aperture material: which can filter particles of different sizes in layers and improve the life span of the filter element.
5.Complete structure: which can effectively reduce the surface flow rate of the filter material and obtain stable filtration precision.
6.Step-by-step heating: the surface heat load is less than 1.0W/c㎡, and the oil would not deteriorate after overheating.
7.Protection devices: ensure safe operation of the equipment.
8.Automatic control instruments: which could process and control the operation of the entire equipment and monitor the operating status of the equipment.
9.Excellent comprehensive performance: low noise, low energy consumption, high efficiency.
Optional devices:
1.PLC, touch-screen type human-machine dialogue operation interface, with dynamic display installed.
2.Imported components and parts, including electric oil pump group, vacuum pump set, filter elements, electrical components, instruments, etc.
3.Fluid meter.
4.Frequency conversion system, which could regulate the rate of flow in the process of filtering or oiling.
5.Online micro water meter.
6.Vacuum gauge.
Applications:
1.Purification of turbine oil and transformer oil
2.Water removal and impurity filtration of oil in hydraulic lubrication system
3.Overall improvement of cleanliness of hydraulic lubrication system
4.Regeneration and purification of various oils
