Product Details
The high precision oil filter uses a multi-stage filtration system. It is easy to operate and easy to maintain. Besides, our high precision oil filter is suitable for filtering various impurities such as insulating oil, turbine oil, mechanical oil and hydraulic oil. It can be equipped with different filter elements. Low cost and high filtration precision are the regenerative products of plate and frame pressure oil purifiers.

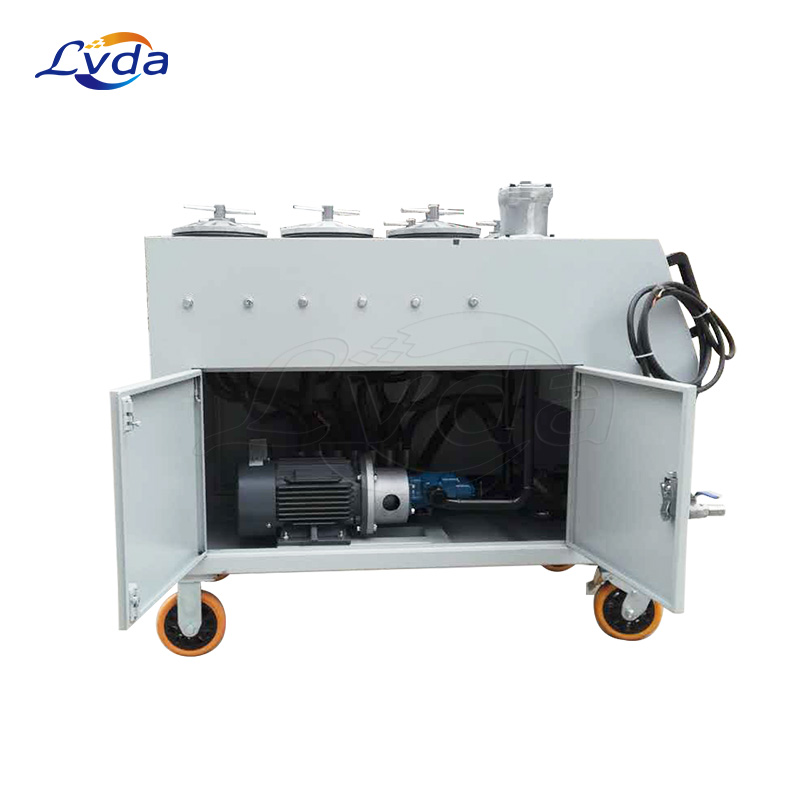

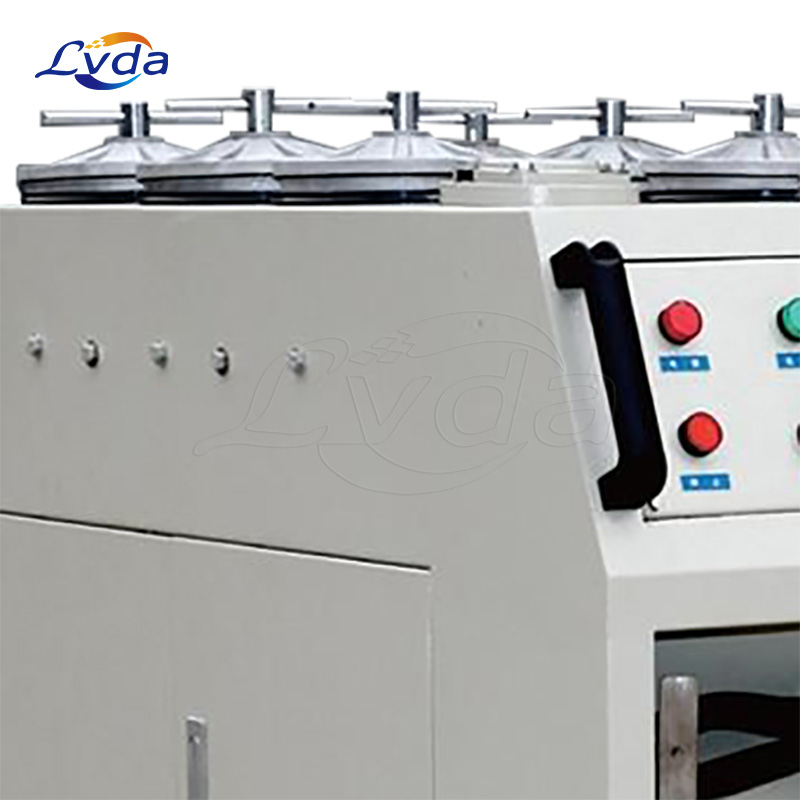

Our high precision oil filter consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
This high precision oil filter is simple and easy to operate, very low price, and low consumption for spare parts. It is no need of purification paper, and no contamination to the ground. This high precision oil filter is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier. It is also can serve as precise filtering and oiling.
During the operation of hydraulic oil, mechanical oil, cooling oil and other lubricating oils, moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This high precision oil filter can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.
We can also tailor what you need according to what you want.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
*The high precision oil filter apply vacuum flash separation technology and steps evaporation technology, high-efficiency dehydration, and emulsification to make oil quickly reach the standard of use.
*The safe and reliable electric heating system adopts carbon fiber heating technology to ensure heating and uniform oil temperature stability while reducing energy consumption.
*Chinamade a multi-stage precision filter element, which can effectively remove all kinds of impurities and encrypt it step by step, with a large amount of dirt and long service life.
*Our machine adopts the technology to ensure that the equipment will not spray oil during operation, safe and stable operation.
*Automatic overload protection, automatic pressure shutdown, ensuring the safe operation of the whole machine.
*This machine is equipped with a trailer device on the basis of the oil filter machine to facilitate fieldwork.
*In addition to oil filter equipment, we also provide products for testing oil, as well as dry air generators, etc., and have a variety of customized equipment to choose from.
Applications
This machine can be widely used in the industries such as power station, electricity factory,power electrical substation of industrial and mineral enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense unit, etc, filtering water and impurities of transformer oil, turbine oil, engine oil, EP gear oil, machine oil, diesel oil, kerosene, hydraulic oil, aviation hydraulic oil, as well as edible oil while using stainless steel plates and frame.
