Product Details

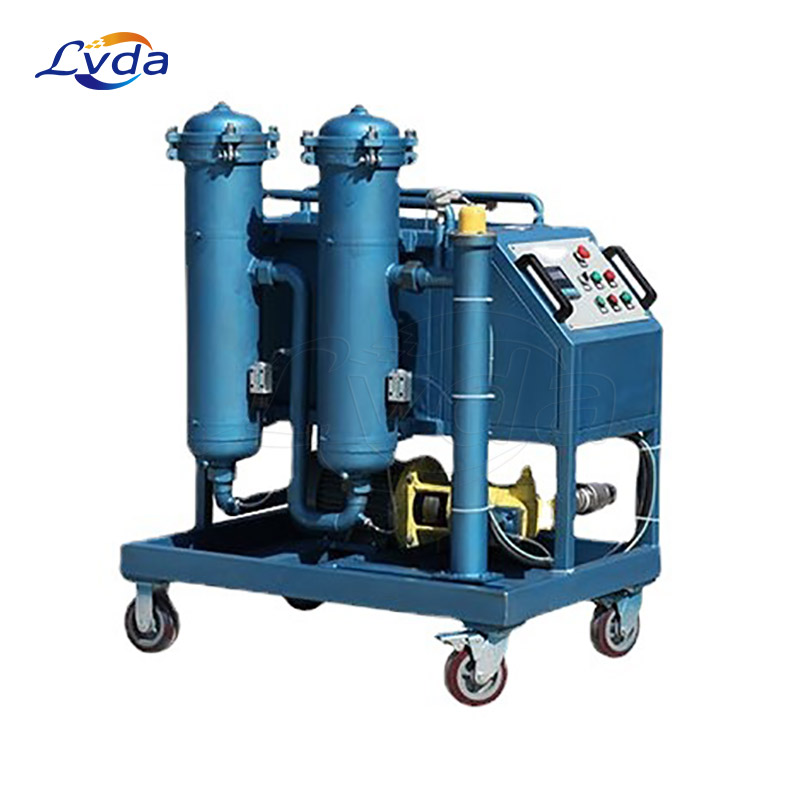

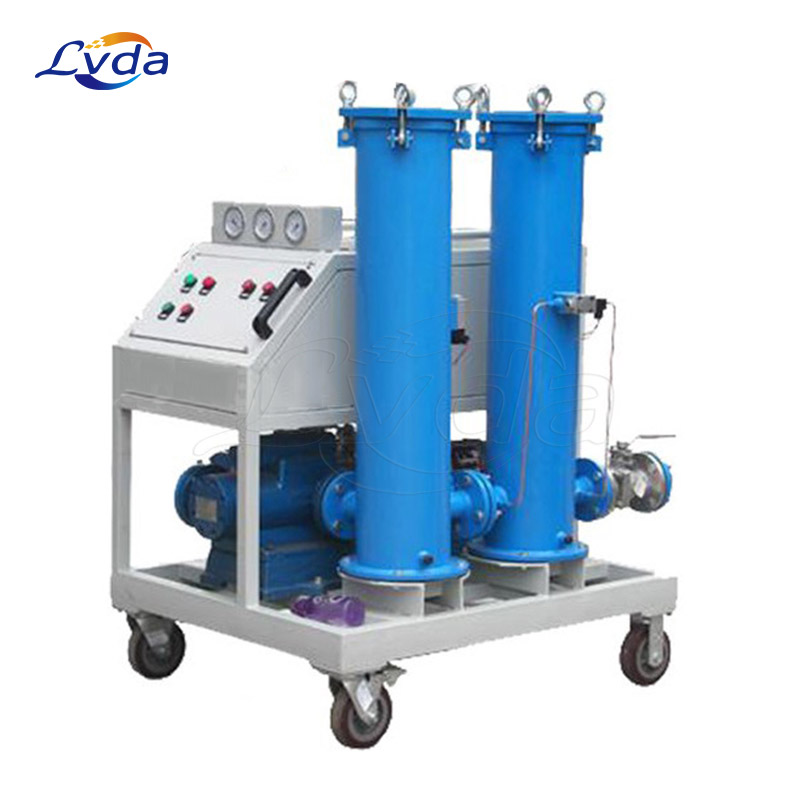

The high viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine is mainly used to deal with unqualified gear oil, high-viscosity oil filtration, etc. The high viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine device handles values of oil viscosity (150-680). This machine is usually equipped with three or more filtration systems, and can also be equipped with more than five filtrations according to customer requirements. The high viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine is light and flexible, and the operation is simple. This high viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine series is equipped with a heater system and a constant temperature control system, which can set the heating temperature arbitrarily and automatically control the working state of the heater, especially suitable for filtration of high-viscosity lubricating oil. The treated lubricating oil has low emulsification value, high filtration precision and low impurity content, which can meet the parameter requirements after filtration, and can be used repeatedly in high-precision hydraulic, pneumatic, and lubrication equipment at home and abroad. The machine can also be used for long-distance, high-lift refueling and oil filling. It is suitable for purification and regeneration of various lubrication in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
Characteristics of gear oil: High viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine is mainly based on petroleum lubricating oil base oil or synthetic lubricating oil, and is an important lubricating oil prepared by adding extreme pressure anti-wear agent and oily. High viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine is used in various gear transmission devices to prevent tooth surface wear, abrasion, sintering, etc., prolong its service life, and improve the transmission power efficiency. Gear oil should have good anti-wear, load resistance and suitable viscosity. In addition, High viscosity vacuum transformer turbine lube oil filter purifier purification regeneration filtration filter machine should also have good thermal oxidation stability, anti-foaming, water separation performance and anti-rust performance. Since the gear load is generally above 490 MPa (MPa), and the hyperbolic tooth surface load is as high as 2942 MPa, in order to prevent the tooth surface from wear and abrasion caused by oil film rupture, extreme pressure anti-wear agents are often added to the gear oil, and sulfur is commonly used. - Phosphorus or sulfur-phosphorus-nitrogen type additives.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
1. The special pump for high-viscosity oil is used to deliver smooth fluid, no pulsation, low noise, low vibration, and strong self-priming ability.
2. It can filter a variety of corrosive media, and the operating temperature can reach 200 °C.
3. Especially suitable for filling and filtering of high viscosity oil.
4. The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
5. Adopt thermal relay protection to prevent motor damage caused by motor overload.
6. The oil suction port coarse filter protects the oil pump and prolongs the service life of the main filter.
7. According to the different needs of users, the fine filter can choose different precisions to meet the required requirements.
Applications
To filter high-viscosity gear oils or lubricants
To fill-up high-viscosity gear oils or lubricants
The by-pass filtration for working hydraulic lubricants system
Filtration and filling of high viscosity lubricating oil.
Bypass filtration when working with high viscosity lubricating oil systems.
Electronics and pharmaceuticals: used for pretreatment and filtration of reverse osmosis water and deionized water, pretreatment of cleaning solution and glucose.
Textile and packaging: The filter element is used for the purification and uniform filtration of polyester melt in the wire drawing project, the protection and filtration of the air compressor, and the oil and water removal of the compressor.
Thermal power and nuclear power: purification of steam turbine, boiler lubrication system, speed control system, fan and dust removal system.
