Product Details
Our pressure pressing type high accuracy oil filtration unit is made up of filtering bed, boosting type oil pump and rough filter. There are filtering media, such as filtering paper or filtering fuse, installed between the steel filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. Special boosting type oil pump has strong suction ability and make the machine to be used in more oil types. Low noise, Quick and convenient to replace filter paper, Simple structure, Easy to use, Lower operation cost. Our pressure pressing type high accuracy oil filtration unit consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
During the operation of hydraulic oil, mechanical oil, cooling oil and other lubricating oils, moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This series of oil filters can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.

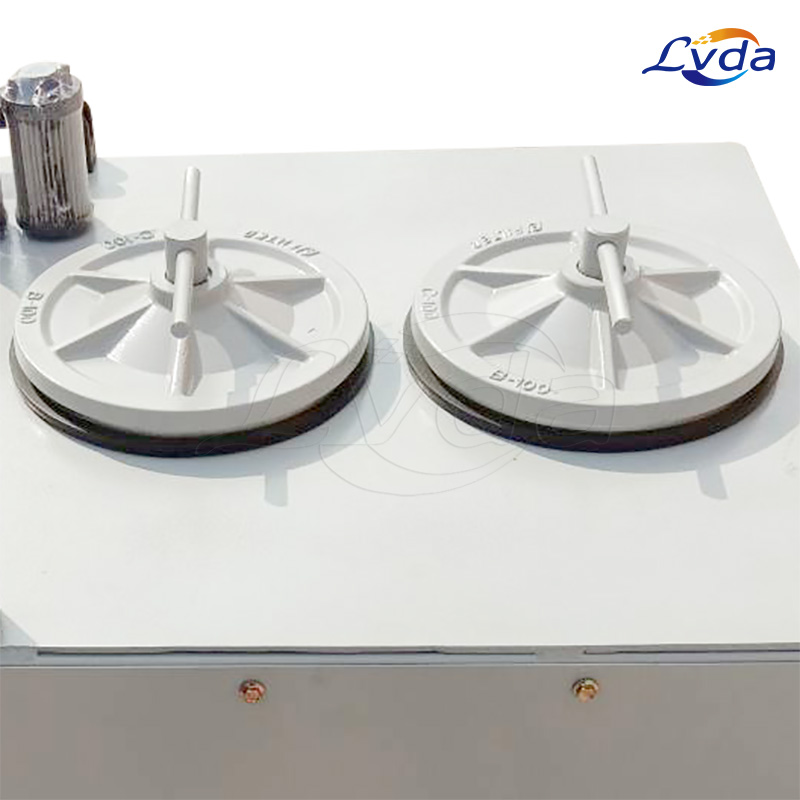

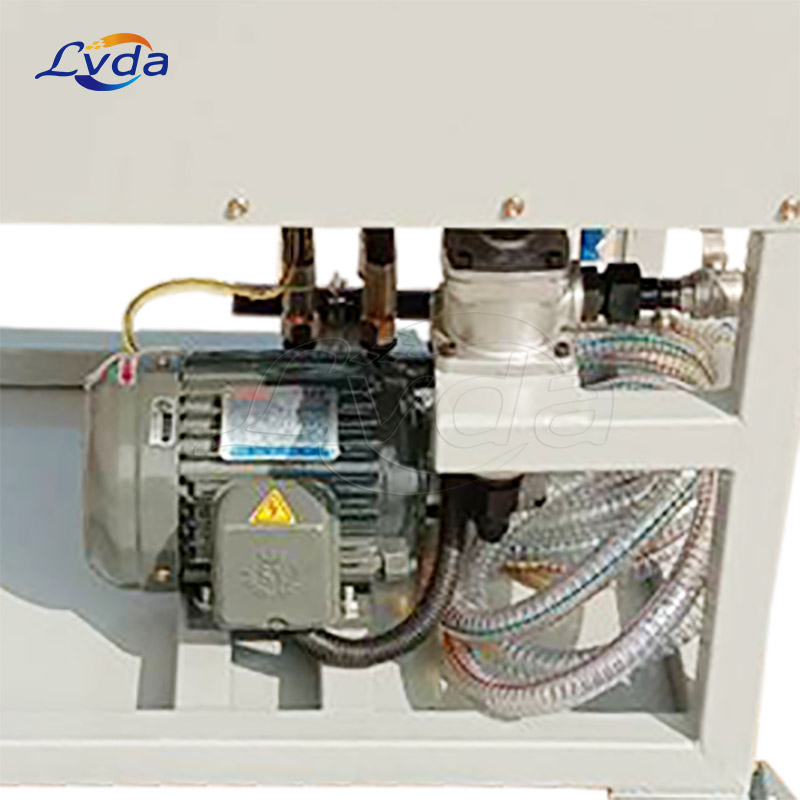

Our Precision oil purifier consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Our pressure pressing type high accuracy oil filtration unit is a great choice as oil pre-treatment equipment prior use before vacuum oil purifier machines. It’s widely used for power station, electricity factory, power electrical substation of industrial and mining enterprise, lube oil depot, tractor station, petroleum, chemical engineering, metallurgy, national defense industry, etc.
Pressure pressing type high accuracy oil filtration unit is specially designed for filtering water content and impurities of turbine oil, engine oil, EP gear oil, machine oil, diesel oil, hydraulic oil and as well as filtering edible oil.
