Product Details

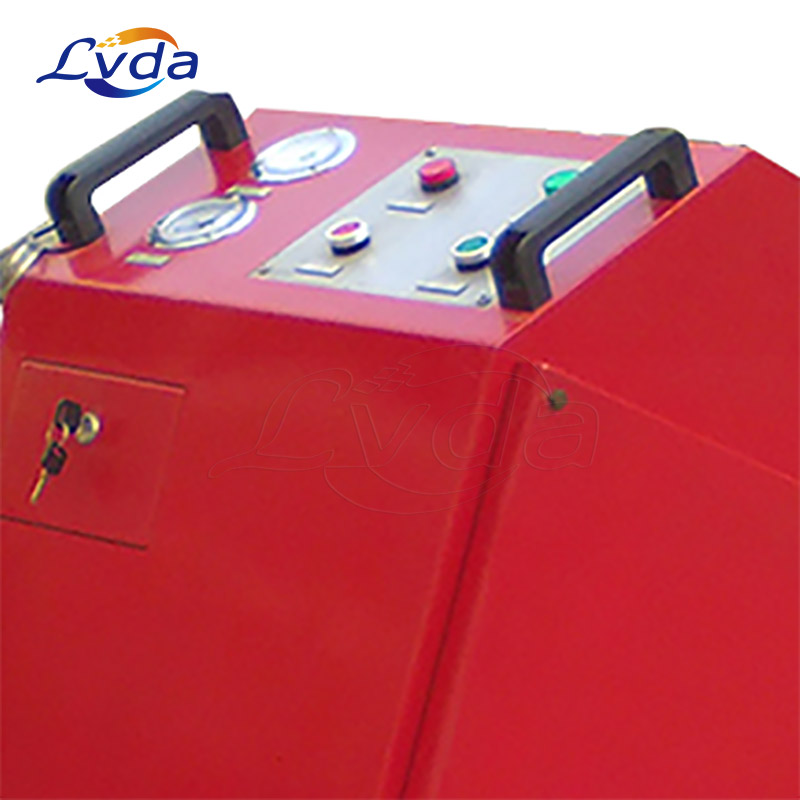

Special box-style filter equipment for turbine oil
Main body material: high carbon steel, optional 304 stainless steel
Shell material: high carbon steel, optional 304 stainless steel, and can also be customized according to customer needs
Working principle: Coalescence and demulsification, vacuum separation to remove water and degassing, step-by-step precision filtration to remove acid and impurities
The oil used in the energy conversion mechanism in the turbine technology plays the role of lubrication and mechanism heat dissipation. In the production environment, due to the aging of the unit or the poor sealing, water leakage, air leakage, and air leakage often cause oil emulsification and acidity rise. Vibration increases sharply, and serious accidents such as large shaft bending and moving blade breakage will occur.
Turbine technology is a machine that converts the energy contained in the fluid working medium into mechanical work. Also known as turbine, turbo. Turbine can be divided into hydraulic turbine (used as power source for hydropower station), steam turbine (used in thermal power plant, ship propulsion, etc.), gas turbine (used as propulsion power for jet aircraft, ship propulsion, etc.) power, as well as power plants, small power plants for peak loads, etc.) and air turbines (which can only be used as small power), etc.
Special box-style filter equipment for turbine oil and system adopts coalescing demulsification and vacuum separation technology for dehydration and degassing, and adopts multi-stage precision filtration to remove impurities and acid. The optimized pipeline system design can realize 24-hour guard-type online oil filtration. . Ensure normal oil quality and maintain unit safety.
In addition to the reliable performance of dehydration and degassing, impurity removal and acid removal, Special box-style filter equipment for turbine oil is equipped with infrared liquid level control, constant temperature control, filter pressure protection, power component interlock protection, and equipment story alarm. And many other technical safety control functions, which can realize unattended online operation. Really rest assured and safe.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
1. Using large-area three-dimensional three-dimensional flash evaporation technology, it has strong demulsification and water removal capabilities.
2. It adopts technology and integrates the advantages of gravity method, vaporization method, coalescence method, vacuum separation, and mechanical filtration.
3. Multi-stage precision filtration, step-by-step encryption, large dirt holding capacity, can effectively remove mechanical impurities in the oil.
4. The heating system adopts optimized pipeline design to ensure uniform heating and stable oil temperature.
5. Automatic constant temperature, automatic liquid level control, automatic defoaming control, automatic pressure protection to ensure the performance of the equipment.
6. Online oil filter, can run unattended, and the running status is displayed by the indicator light.
7. The whole machine is interlocked for safety protection, and the oil inlet is interlocked with the heating system to avoid adverse effects caused by misoperation.
8. It can be used for online filtration, demulsification, dehydration, acid removal, and impurity removal, to ensure the normal operation of the unit adjustment and lubrication system, and to prolong the maintenance period of the unit.
9 According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.
10. Imported products can be selected for the main power components, filter equipment and electrical components to improve the performance of the equipment.
11. Optional flowmeter with accumulating function.
12. According to the safety environment of the use site, BT-level "or" CT-level explosion-proof can be selected.
13. User-selectable whole machine structure

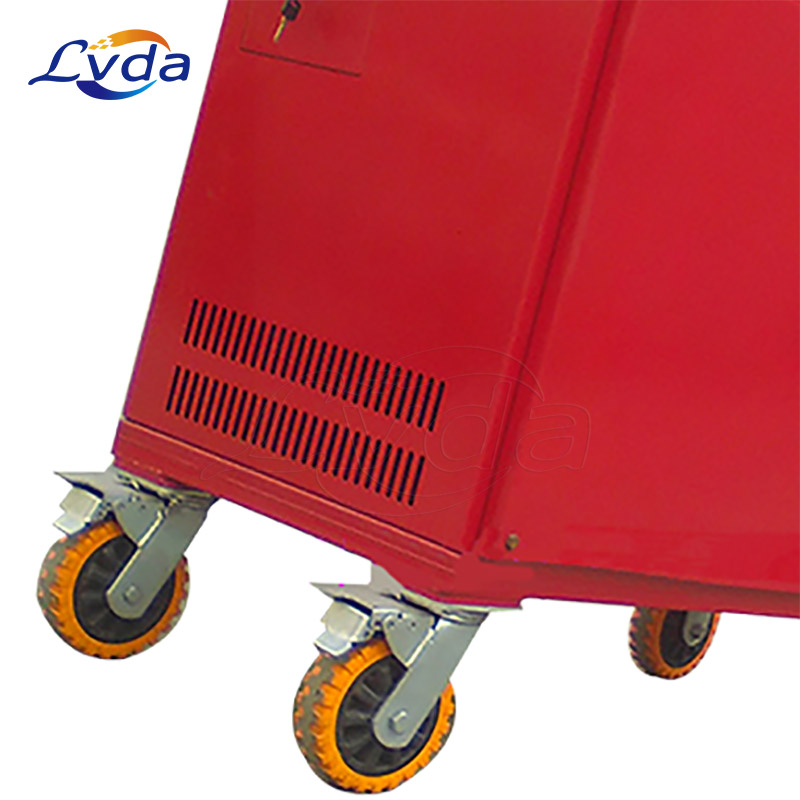

14. The structure of the whole machine can be made into mobile or fixed.
15. It can be made into fully enclosed type, canopy type, canvas canopy and open type.
16. The color of the device can be arbitrarily selected as needed.
Applications
Applicable oil: turbine oil, turbine oil
1. It is used for enterprises that use steam turbine oil such as thermal power, hydroelectric generating units, nuclear power plants, industrial steam turbine units, etc.
2. It is used to deal with unqualified turbine oil, especially suitable for severely emulsified turbine oil. Make the oil filter index meet the requirements of "GB/T7596-2000 Turbine Oil Quality Standard in Operation". It is used to purify oil products that have been steamed, leaked, aged, acid-containing, foamy and emulsified. Clears severely cloudy emulsified turbine oils.
