Product Details
Cart-type oil filter
The cart-type oil filter is composed of a stainless steel mobile trolley, a single-stage bag filter, an imported pneumatic diaphragm pump, a one-way air valve and other components. Matching with the filling machine, it can form a filtration and filling line under automatic control. It can also be filtered directly to the storage tank.
Non-standard customization is made according to the flow requirements in the process flow, the size of the particle size to be filtered, and the corrosiveness of the materials. The general filtration fineness is 0.1-1500μm.
Filtration trolley is a filtration equipment for large-scale filtration in factories, which is used in paints, inks, various coatings, resins, petroleum products, medical supplies, chemicals, cosmetics, textiles, photosensitive chemicals, hot solvents, industrial water, electroplating solutions, Filtration of milk, mineral water, fruit juice, vegetable oil and other media.
Parameters
| Model |
AOP-B25
-*/**
|
A0P-B32
-*/**
|
A0P-B40
-*/**
|
A0P-B50
-*/**
|
A0P-B63
-*/**
|
A0P-B100
-*/**
|
A0P-B150
-*/**
|
| Rated flow(L /min) |
25 |
32 |
40
|
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
|
Recommended viscosity(cSt)
|
10- 160 |
|
Voltage(V)
|
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
| Weight(kg) |
46 |
78 |
90 |
96 |
102 |
120 |
160 |
| Dimensions(mm) |
520x350 x950 |
520 x350x950 |
720x 680 x 1020 |
720 x<680 x 1020 |
720 x 680x 1020 |
720x 750x 1020 |
720x750x 122 |

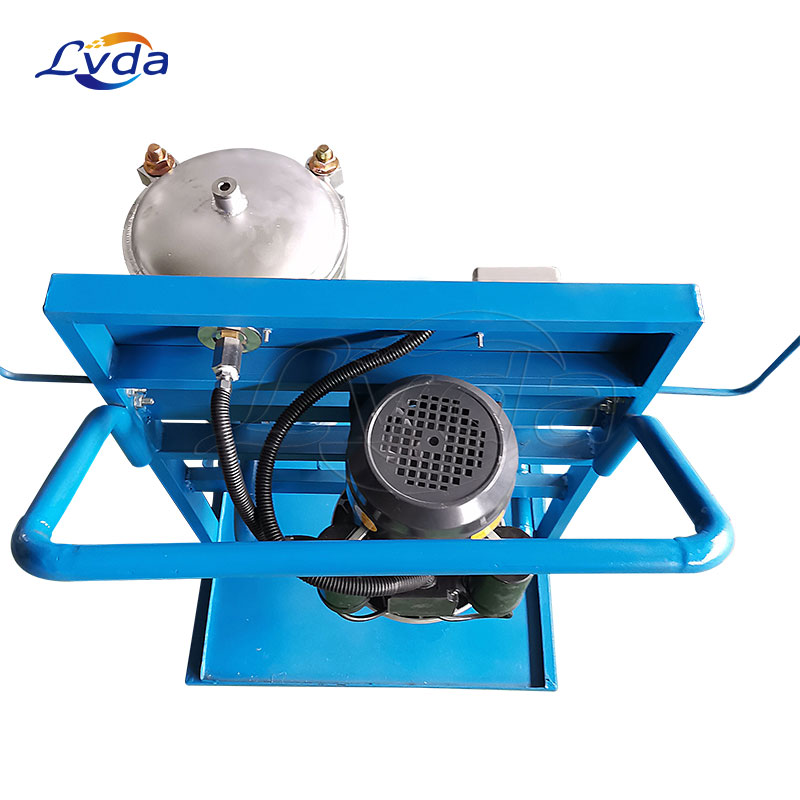

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.

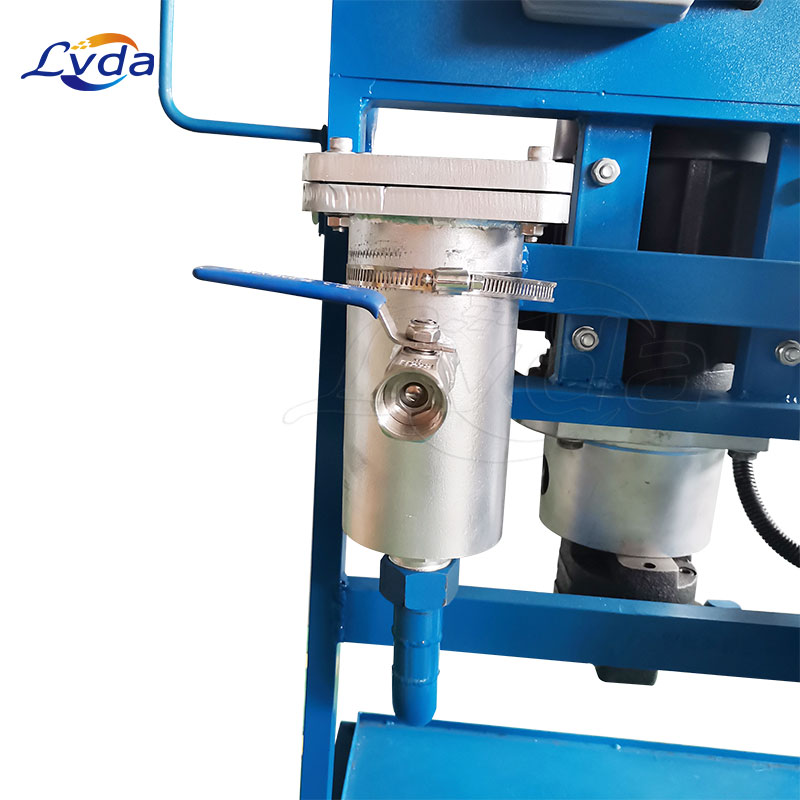

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
*Use our own technology to produce. Such as high-effective separating separation tower, fuzzy control technology, dewatering and degassing very effectively.
*It can purify the losing-efficient insulation oil and make the oil reach the new oil standard without power cut, changing the oil or using filtering papers.
*Have the function of filling oil under vacuum condition.
*Solve the problem of removing the acetylene.
*The purifier has large route, strong capability of holding dirt and can be used for a long time.
*This machine is small, light weight and convenient.
*The ultrasonic cleaning function can be selected.
*Have the functions of automatic burning protection and elimination foam.
*Operate steady and the noise is specially low.
Applications
Our cart-type oil filter mainly deal with unqualified insulating oil, turbine oil, lubricating oil etc., this machine can do precision filtering, it usually equips three-stage filters, also can equip four or five stage filters as per user's requirements. Light weight, easy operation, it can be used as oiling machine for long distance and high-lift oiling works.
