Product Details

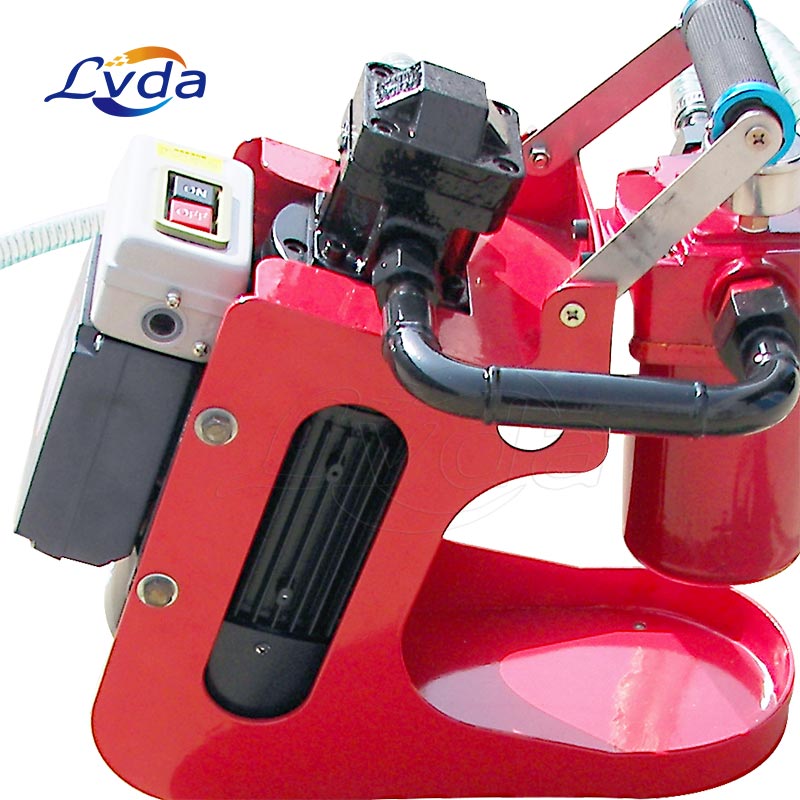

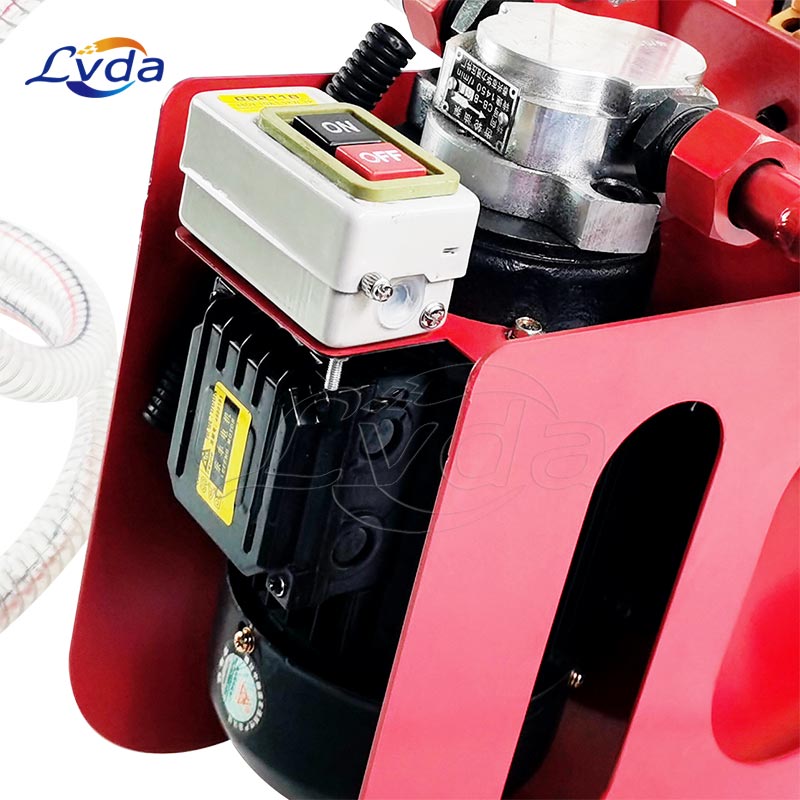

Diesel fuel hand-held filtration system
When every dollar counts, it’s good to know that our diesel fuel hand-held filtration system meets all of your requirements at a price nobody can match, feature for feature, dollar for dollar. It is common to find contaminants ranging from water to particulate in new shipments of fuel. On average seven grams of particulate contaminations is found in every 100 gallons of new barreled oil. In most cases the oil in your system is at a higher cleanliness level than the oil you receive from your supplier.
Our diesel fuel hand-held filtration systems are ideal for filtering particulate and water contaminants found in new fuel and fuel found in existing systems. By removing these contaminants, critical components are often damaged leading to expensive repairs or replacements and down-time.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
11 GPM Flow Capacities
Two Filters:
Longer Filter Life
Two Stage Filtration
Clean, Easy Filter Change Out
Filtration down to 1 Micron (Absolute)
Water Absorbing Elements
Industrial Quality Vane Pump
Heavy Duty Cart with Drip Pan
Pump Safety Relief Valve
Strainer on Pump Inlet
12’ Long Hose Assemblies
Easy to read pressure gauges
Fleet Maintenance
Portable Cleaning
Fuel Polishing
Back-up Power Maintenance
Fuel Dispensing
Applications
Our diesel fuel hand-held filtration system is Specially designed for high-precision machining machinery, so that its oil is always in good condition.
Also, low-viscosity hand-held system is widely used for petroleum, chemical, mining, metallurgy, electricity, transportation, machinery manufacturing, railway and other industries oil with significant economic benefits.
