Product Details

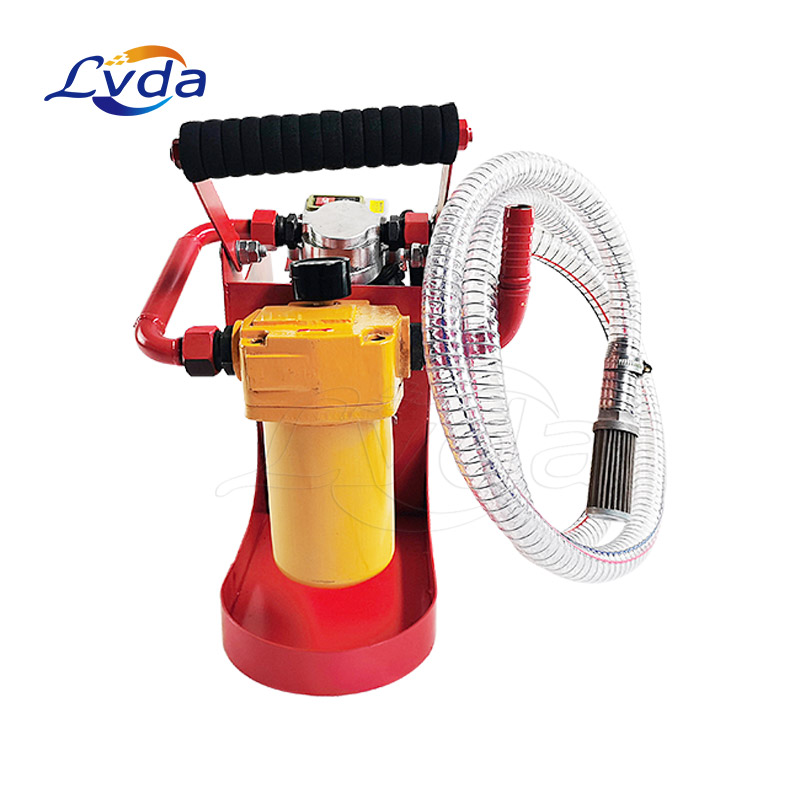

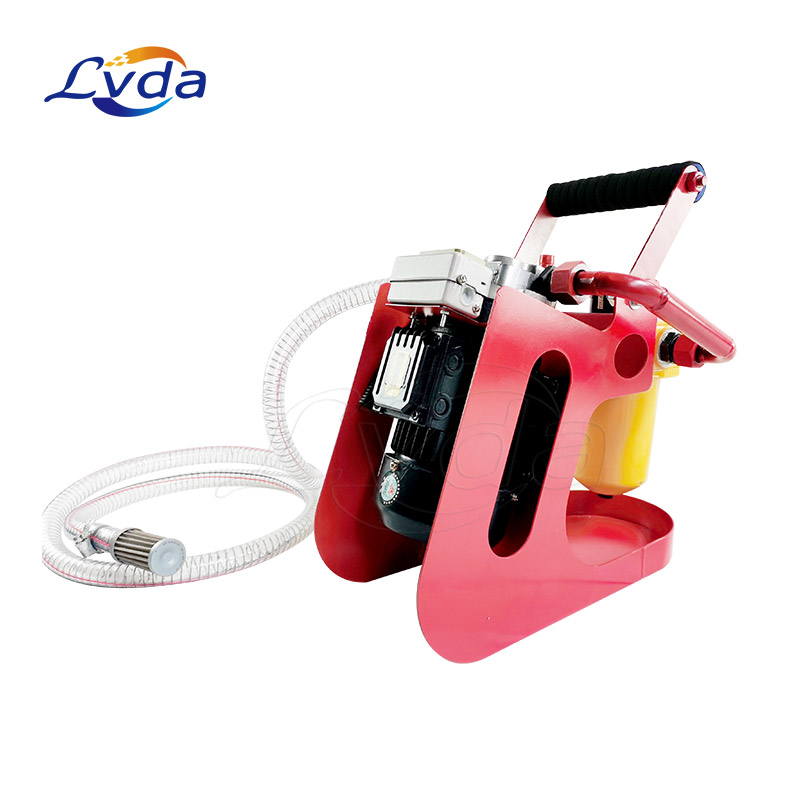

Mini type hand held oil filter machine
Our company has developed a line of compact mini type hand held oil filter machine intended for use for fluid transfer, fluid circulated filtration so as to reduce contamination levels. They are the most compact, lightweight, easy-to-operate, and reliable fltration systems in the industry today.
The mini type hand held oil filter machine with a simple pump/motorfilter construction is convenient for end-users to carry and operate almost anywhere. Weighs only 15 kg! This machine allows the hydraulic systems to continue operating without costly downtime. A water removal element can also be utilized on this oil filtration unit, which radically reduces the water contamination in the whole system.
Our mini type hand held oil filter machine is ideal for applications with minimal space, for fiItering contaminated systems, fushing new or repaired systems, pre filtering new oil, transferring oils, topping off reservoirs and dispensing new oils.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
-Self Priming Positive Displacement Gear Pumps Direct Coupled To Electric Motors
-On-Off Switch - 220V, 1-Phase, 70Hz (Other Options Available)
-Inlet Suction Strainer For Pump Protection
-Differential Pressure Gauges For Positive Indication When Filter Elements Are Plugged and Need To Be Changed
-Upstream/Downstream Oil Sample Ports
-All Systems Come Standard With 10 meters of Clear PVC Steel- wire Reinforced oil hoses
-Configurations Include 1 or 2 or 3 flters as required
-Lightweight and compact structure
-It is fabricated to carry and position near dificult to access locations.
Applications
-Supplementing continuous liquid fltration by system filters.
-Cleaning up hydraulic systems following a component replacement.
-Filtering new fluid before it is put into service.
-Transferring fluid from drums to system reservoirs.
-It is suitable for oil change, oil replenishment, impurity fltration of small oil volume consumed area (such as machine tools, vehicles, fuel tanks, oil switches, transformers, pipes, etc. ), as well as workshops, maintenance, power plants, power stations, oil depots, factories, mines, aviation, and chemical industries, laboratory, etc.
Designed for usd on: Hydraulic Oil, Turbine Oil, Lubrication Oil, Gear Oil,Transformer Oil,Diesel Fuel,Phosphate Ester (Fyrquel EHC Fluid), PAO Fluid.
