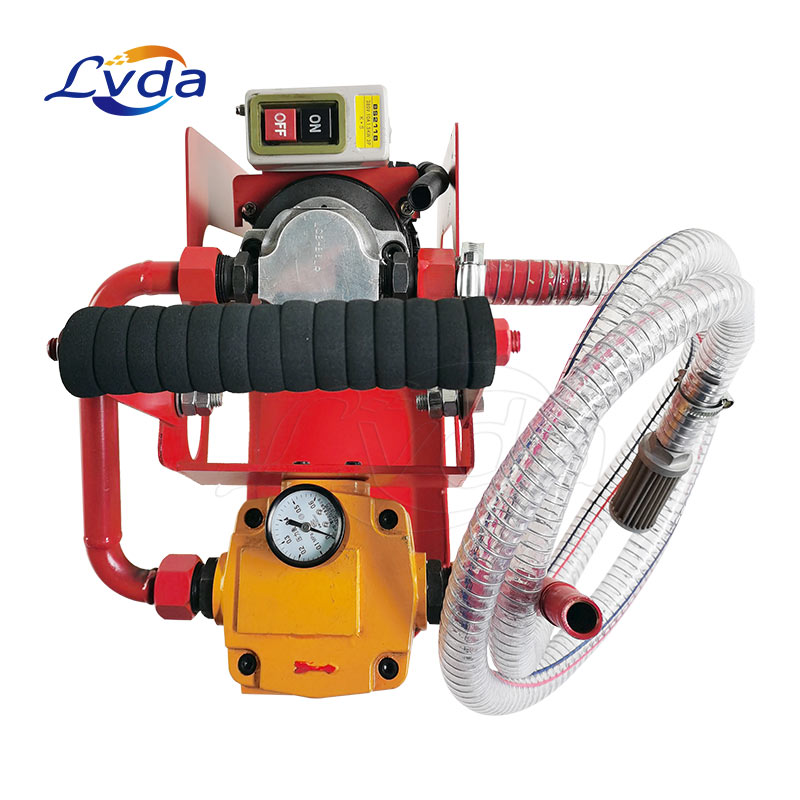

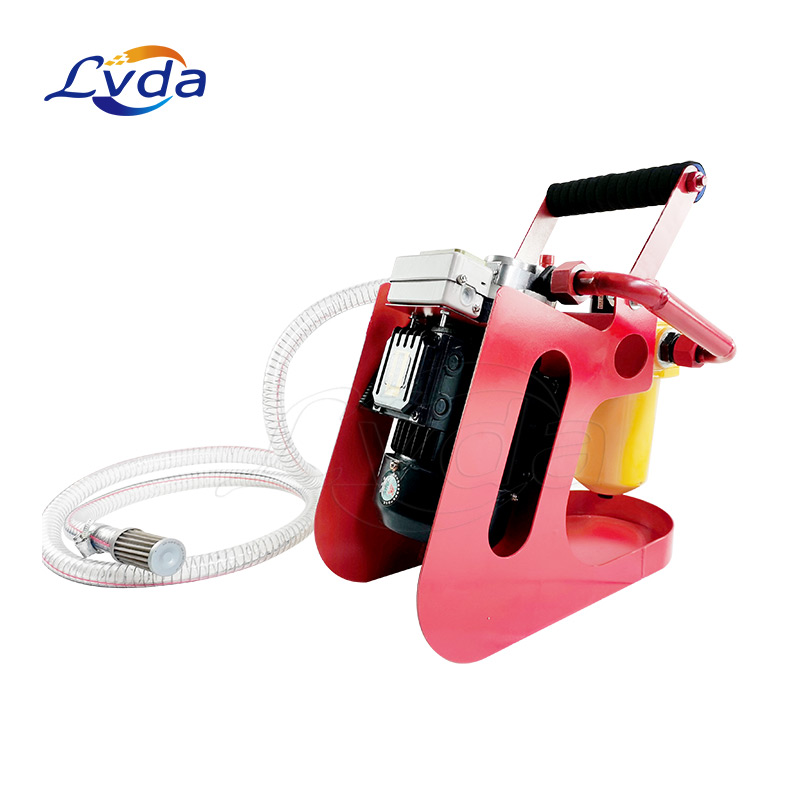

Stainless steel hand-take filtration unit
Stainless steel hand-take filtration unit
Stainless steel hand-take filtration unit

Stainless steel hand-take filtration unit

Turbine Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

Stainless steel hand-take filtration unit

Our stainless steel hand-take filtration unit is for oil filling & filtration, especially used for big impurities and tiny particles removal from used oil,applicable to filtrate mechanical oil, hydraulic oil, compressor oil, turbine oil, insulating oil, gasoline and diesel engine oil etc. It can also be used for purifying cooking oil, rape oil, sesame oil, peanut oil, coconut oil etc when it is made of stainless steel filter element.

Composed of three-stage precise filters, our stainless steel hand-take filtration unit is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier. It is an ideal equipment to transfer different kinds of oil from one container to another; at the same time the oil goes through filtration process.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features:

1.Hand-take style, Small size and portable, easy operated and low-noisy.

2.No need of filter paper, no contamination to ground and at very economical price.

3. It can transfer oil from long distance and high lift.

4. Can be installed with well-sealed anti-explosion electric control cabinet.(optional)

Applications

Filtering hydraulic systems

Filtering steam turbine lube systems

Almost any tiny industrial equipment containing oil
