Mini oil purification equipment
Mini oil purification equipment
Mini oil purification equipment

Mini oil purification equipment

Turbine Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

Mini oil purification equipment

Mini oil purification equipment is a technological product with low noise and strong self-priming ability. It is widely used in power plants, power stations, power supply bureaus, chemical industry, metallurgy and other industries to filter impurities and transport oil products such as turbine oil, insulating oil and lubricating oil. Especially suitable for field and aerial work. Oil and pump oil to the lubrication system.


Parameters

                       Model              AOP-6-*/**
             AOP-10-*/**
            AOP-16-*/**

                   Rated flow

                      L/min

                   6
                   10                  16

               Rated pressure

                       Mpa

                                                                                         0.34
          Original pressure loss

                       Mpa

                                                                                         ≤0.02

       Coarse filtration accuracy

                       μm

                                                                                         40 meshes

       Fine filtration accuracy

                       μm

                                                                                  3、 5、 10、 20、 40

     Alarm differential pressure

                     MPa

                                                                                         0.2MPa

            Use temperature

                       °C

                                                                                         6~80

Recommended viscosity for use

                      cSt

                                                                                         10~160

               Power supply

                        V

                                                              AC380V three-phase, AC220V three-phase

               Motor Power

                       kw

                   0.18                    0.25                 0.35

                   Weight

                      kw

                    13                     16                  18

               Dimensions

                     mm

           650x680x980
            650x680x980
          720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.


Product features

This mini oil purification equipment is an ultra-portable oil and oil filter developed by our company.

The machine is easy to carry and can be used to refill various hydraulic lubricating equipment anytime and anywhere in the field, and can purify the oil.

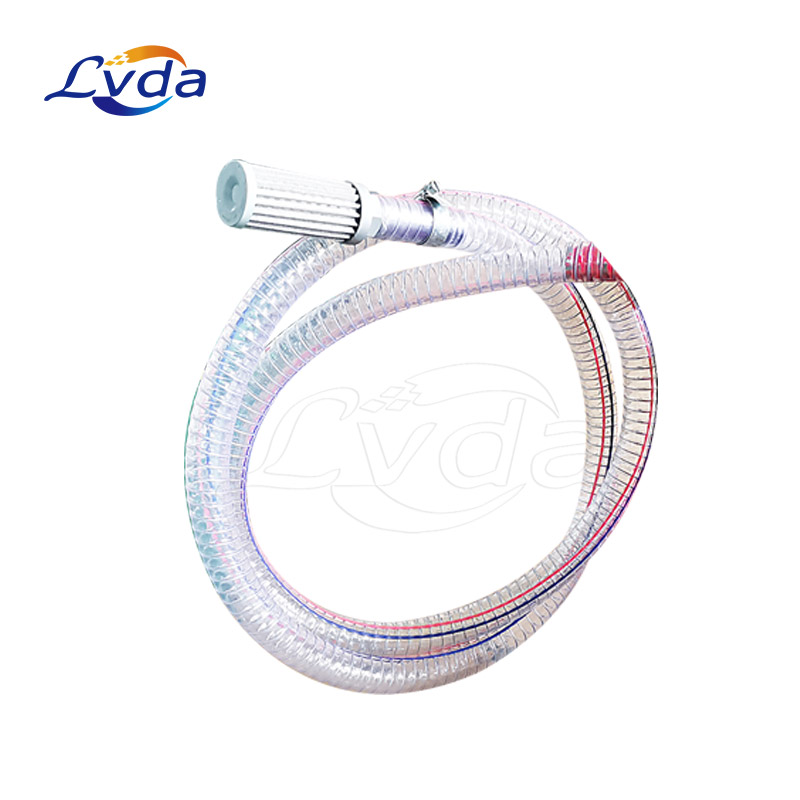

The suction port coarse filter protects the oil pump and prolongs the life of the main filter.

The fine filter can choose different precision according to the different needs of users to achieve the required results.


Product applications

Can be used in petroleum, chemical, metallurgy, electric power, pharmaceutical, food, environmental protection, water treatment, construction machinery, paper industry, shipbuilding industry and machine tool manufacturing and other fields.
