Turbine oil coalescence separation oil purifier with aviation fuel, gasoline kerosene,diesel oil filtration
The turbine oil coalescence separation oil purifier is a filtration and dehydration system specially designed for steam turbine oil by our company.
The turbine oil coalescence separation oil purifier integrates the high-efficiency dehydration of the precision filter of the oil. The turbine oil coalescence separation oil purifier can effectively remove particles in the oil and emulsified water and free water. After the treatment, the cleanliness of the oil can reach NAS1638 level 6, and the free water content can be less than 100 PPM.
Our turbine oil coalescence separation oil purifier is a filtration and dehydration system specially designed for steam turbine oil. It integrates a precision filter with high efficiency dehydration of the oil, which can effectively remove particles, emulsified water and free water in the oil. After the treatment, the cleanliness of the oil can reach NAS1638 level 6, and the free water content can be less than 100 PPM.
Can be used alone as a particle filter device.
It can remove emulsified water and free water in steam turbine oil.

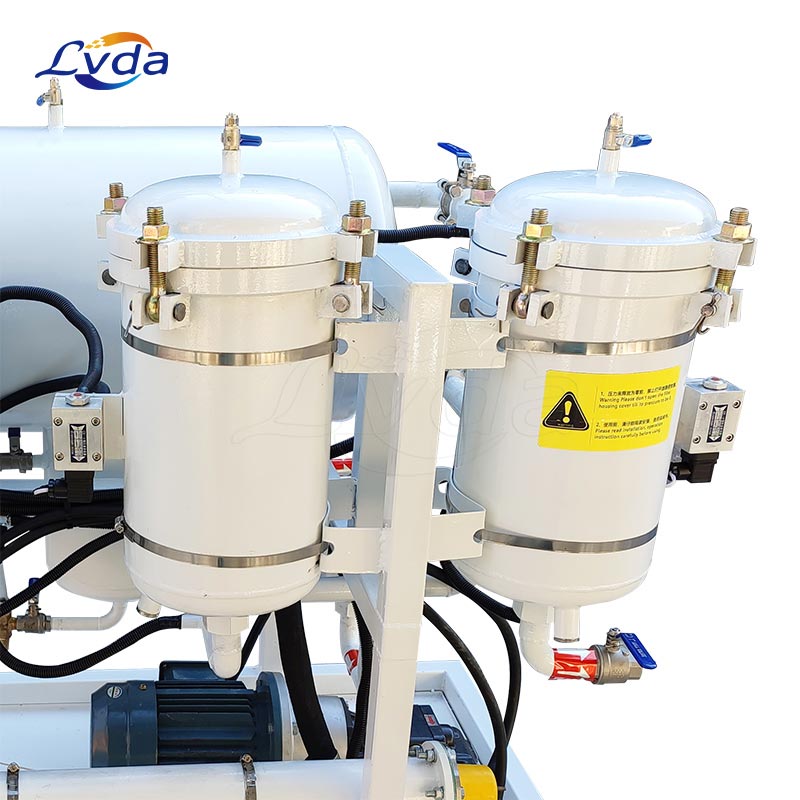

The oil flow through the high-efficiency filter element, through the filter element from the surface to the inside, along the flow direction gradually shrinking gradual pore structure, layered interception of different sizes of pollution particles, maximize the filter element's service life and filtering effect.
After the oil flows through the filter, it enters the coalescing filter element in the coalescing tank. Due to the unique polar molecules of the coalescing filter material, the free water and emulsified water in the oil coalesce to become larger after passing through the filter element. Water droplets. Due to gravity, it settles to the lower part of the coalescing tank. Part of the smaller water droplets move upwards with the oil under the action of inertia until the separation filter element.
The separation filter element is made of a special hydrophobic material. When the oil passes through, the water drops are blocked outside the filter element. After gathering each other, the size gradually increases, and finally settles into the water storage tank at the lower part of the coalescing tank due to gravity. The oil enters the filter element and is discharged from the liquid outlet.
Product parameters
| Model |
A0P-D25 |
AOP-D50 |
A0P-D100 |
AOP-D150 |
A0P-D200 |
AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400
|
| Rated pressure(MPa) |
0.6 |
| Initial pressure loss (Mpa) |
≤0.1 |
| Filtered water content |
≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) |
10、20 |
Grade 2 filter rating( μ m) |
3、5 |
| Pressure differentials |
0.2Mpa |
| Working temperature(°C) |
25- 80 |
| Recommended viscosity(cSt) |
10-120 |
| Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13
|
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860
|
| Dimensions(mm) |
1200x 800x1250 |
1350 x800x1400 |
1740x 980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
* A wide range of vacuum dehydration. It can be used for deep oil dehydration, with the treated oil containing less than 50ppm of water.
* DCS remote control interface available. Either automatic or manual control mode can be designed according to the requirements of customers.
* Special pipeline design, which can realize mutual transformation of various kinds of functions.
* Efficiently remove all oil-water emulsification structure in oil. It integrates two functions of precision filtration and high-efficiency dehydration.
* It has high filtration precision, large dirt holding capacity, long service life of filter element and high dehydration efficiency.
* There is no need for heating and vacuuming and high-speed centrifugation, with low energy consumption and low operating costs.It will not change the physical and chemical properties of the oil and prolong the service life of the oil.

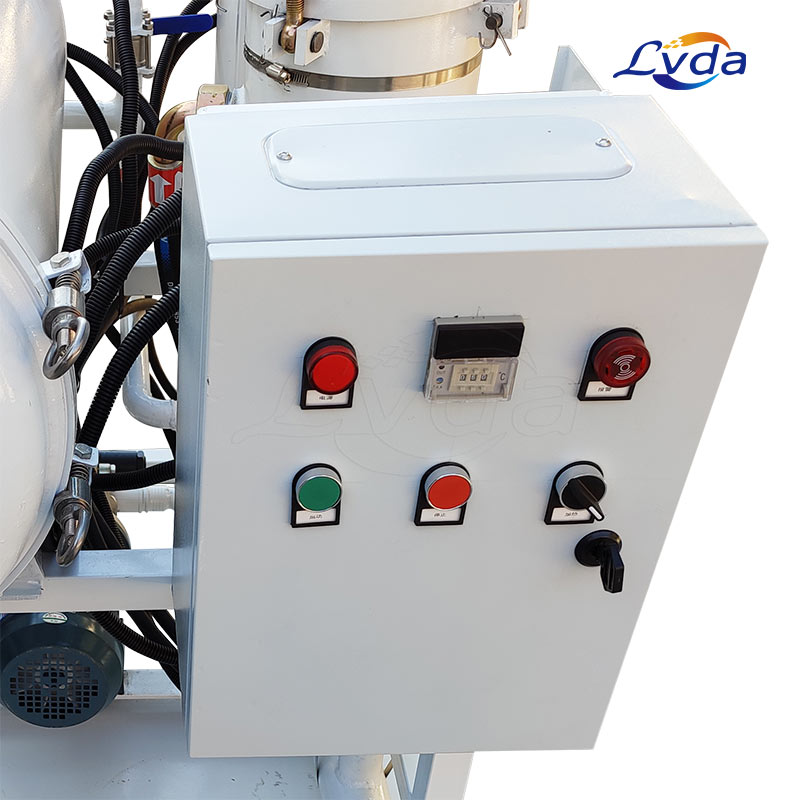

* With filter element failure alarm, electrical overload protection. And there is an alarm remote transmission. Stainless steel is anti-oxidative and enhances the service life of the equipment.
Product applications:
Widely used in electric power, metallurgy, mining, machinery, chemical industry, transportation, manufacturing, food and other industries , Weaving oil, quenching oil, gear oil, heat treatment oil, anti-wear hydraulic oil, oil with particularly serious emulsification, oil with too much moisture and other corporate waste oil, dirty oil, injection molding oil, cylinder oil, textile oil, high-speed machinery Regeneration, filtration and purification of high-precision lubricating oil such as oil.
