Product Details

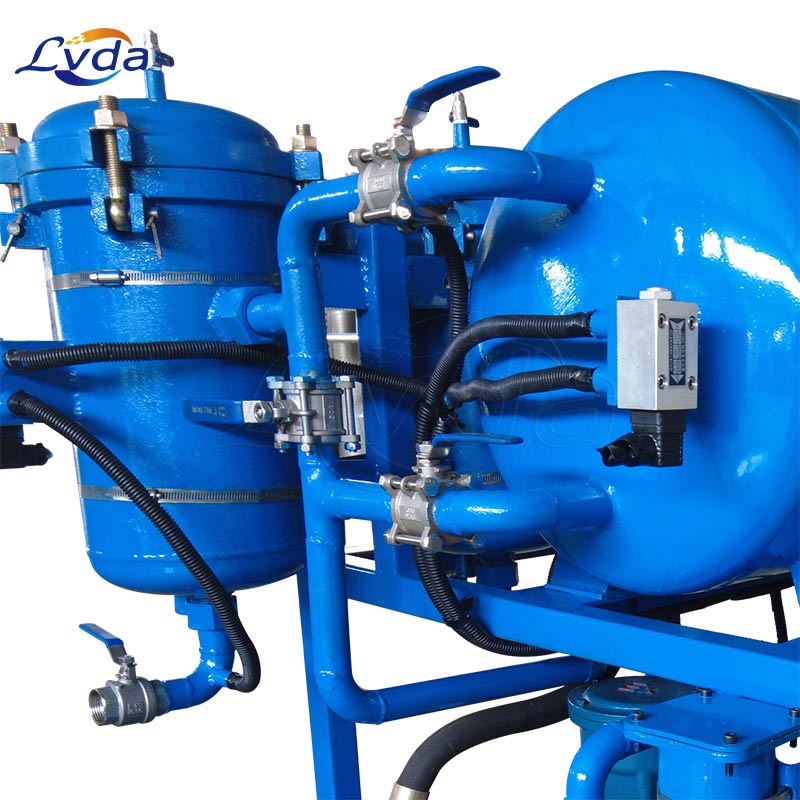

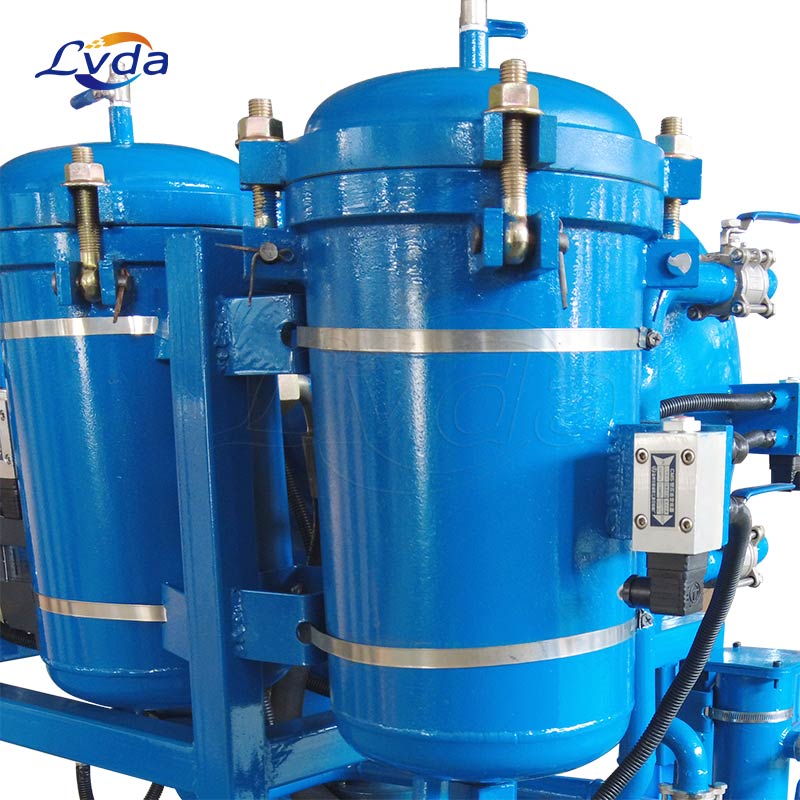

Stainless steel turbine oil coalescing purifier
Our stainless steel turbine oil coalescing purifier adopts the international advanced "coalescence separation" dewatering technology, and has developed an innovative series of coalescence separation oil filter. It integrates two functions of precision filtration and high-efficiency dehydration, and effectively removes particulate pollutants, emulsified water, dissolved water, free water, and the filtration precision can reach NAS4-6 level in the oil, realizes continuous operation and unattended operation, and has the advantages which can not be compared by pressure type, centrifugal type and vacuum type oil purifiers.
The main body material of the coalescing stainless steel oil filter is stainless steel
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
1. Efficiently remove all oil-water emulsification structure in oil.
2. Remove the free water in the oil, and the water content after treatment is less than 100PPM.
3. Filter the solid particles in the oil, and the cleanliness can reach NAS4-6 level or higher.
4. It integrates two functions of precision filtration and high-efficiency dehydration.
5. It has high filtration precision, large dirt holding capacity, long service life of filter element and high dehydration efficiency.
6. There is no need for heating and vacuuming and high-speed centrifugation, with low energy consumption and low operating costs.
7. It will not change the physical and chemical properties of the oil and prolong the service life of the oil.
8. With filter element failure alarm and electrical overload protection. And there is an alarm remote transmission.
9. The equipment runs online, automatically controlled, and unattended.
10. Stainless steel is anti-oxidation and enhances the service life of the equipment.
Product applications
Lubricating oil, fire-resistant oil, turbine oil, etc.
