Product Details

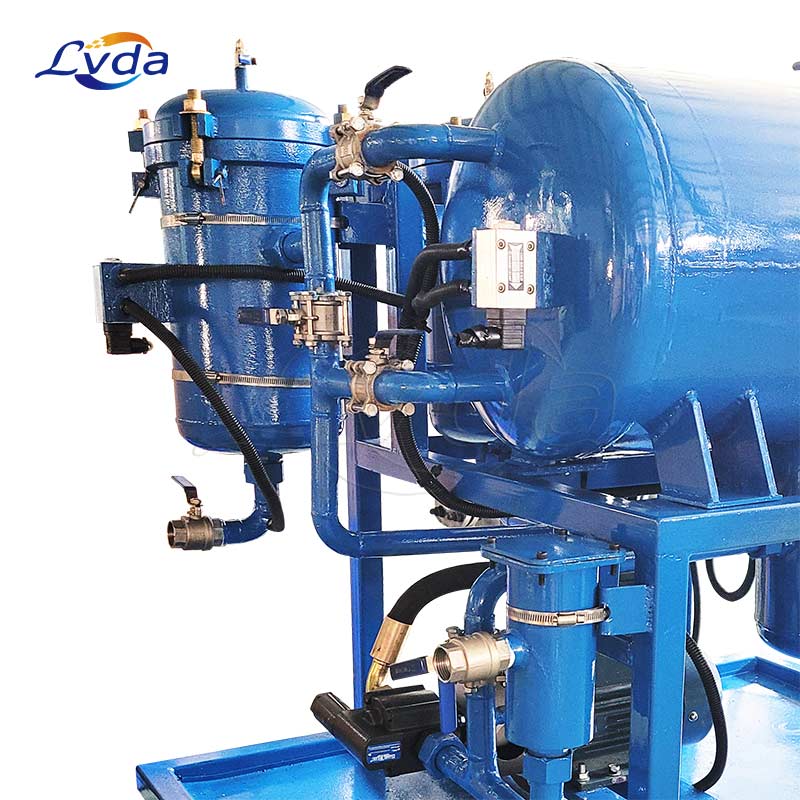

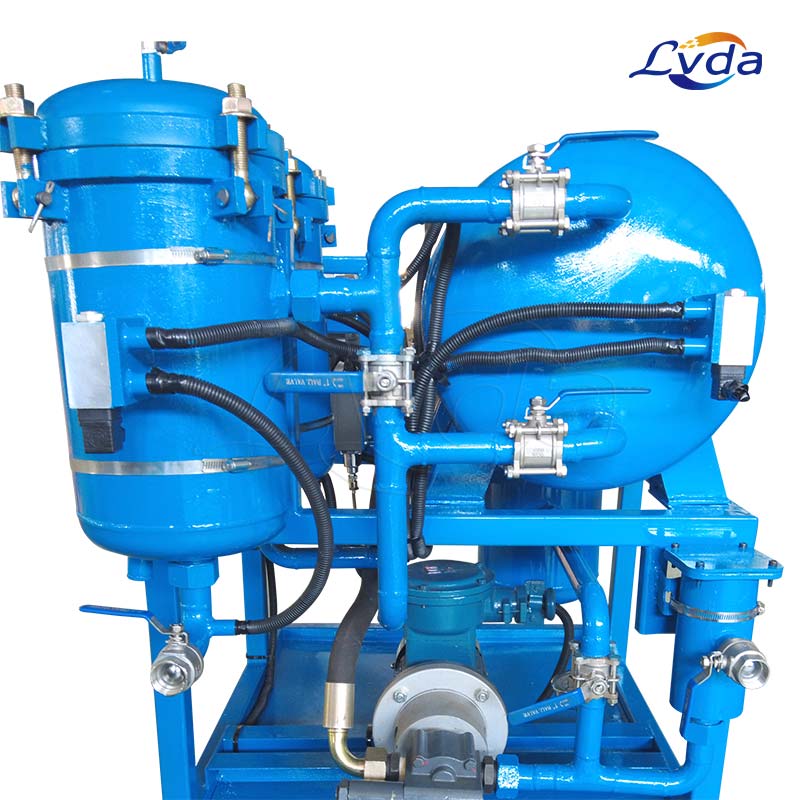

Turbine oil vacuum coalescence separation oil purifier
After years of research, our company has developed a new turbine oil coalescing separation oil purifier, which integrates vacuum drying, separation engineering technology, coagulation technology, adsorption technology and precision filtration technology. It can quickly and reliably remove moisture, gas, impurities, colloid, sludge and various pigments in oil under high vacuum. And reduce the dielectric loss and acid value, improve the degree of demulsification, and comprehensively improve the quality of the oil, can realize online operation, can automatically drain water without stopping, so that the waste oil can reach the use standard of new oil, and the operation is simple.
Product parameters
| Model |
A0P-D25 |
AOP-D50 |
A0P-D100 |
AOP-D150 |
A0P-D200 |
AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400
|
| Rated pressure(MPa) |
0.6 |
| Initial pressure loss (Mpa) |
≤0.1 |
| Filtered water content |
≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) |
10、20 |
Grade 2 filter rating( μ m) |
3、5 |
| Pressure differentials |
0.2Mpa |
| Working temperature(°C) |
25- 80 |
| Recommended viscosity(cSt) |
10-120 |
| Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13
|
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860
|
| Dimensions(mm) |
1200x 800x1250 |
1350 x800x1400 |
1740x 980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features:
1. The machine adopts a multi-stage cartridge filter, which has a strong ability to filter out impurities. The high-flow washable filter element is used for the coarse filter, which has high filtration efficiency and can remove a large amount of impurities in the oil; Removes fine particles from oil.
2. The water separation device adopts high-quality coalescence separation technology and a special emulsification device (water separation), which can not only quickly and efficiently separate a large amount of water in the oil, but also facilitate the removal of trace water; the turbine oil coalesces and separates the oil. The jet degassing device of the machine can effectively remove the trace gas mixed in the oil; the condensate water automatic separation system is equipped with a strong air cooler, which can quickly condense and separate a large amount of water vapor and other gases discharged from the vacuum to achieve the effect of one-time separation.
3. High-quality filter elements and connection sealing materials with corrosion resistance, high temperature resistance and high mechanical strength are used; the local vacuum pump produced in China is selected, and the cooling liquid (or water) is used as the lubricating medium. Oil-based rotary vane vacuum pumps are often troubled by oil changes.
4. The new heating device is adopted, the heating load is low, and the oil quality is prevented from aging.
5. The anti-fuel injection device adopts the photoelectric liquid level control method, which is sensitive and accurate in control, and can even sense the foam, and there is absolutely no fuel injection phenomenon.
6. Our company has launched a new vacuum coalescing oil purifier, which combines the advantages of vacuum oil purifier and coalescing oil purifier, which not only solves the problem that the price of imported coalescing oil purifier is too expensive for users It also overcomes the problem that the degree of automation of the pure vacuum oil filter is not high.
Product applications
1. Metallurgy: used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, and particle removal and filtration of oilfield well injection water and natural gas.
3. Textile: Purification and uniform filtration of polyester melt in the process of drawing, protection and filtration of air compressors, and degreasing and dehydration of compressed gas.
4. Electronics and pharmaceuticals: pre-treatment and filtration of reverse osmosis water and deionized water, pre-treatment and filtration of cleaning solution and glucose.
5. Electricity and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water supply pump, fan and dust removal system purification.
6. Mechanical processing equipment: Papermaking machinery, mining machinery, injection molding machine and large precision machinery lubrication system and compressed air purification, tobacco processing equipment and spraying equipment dust recovery and filtration.
7. Railway internal combustion engine and generator: filtration of lubricating oil and oil.
8. Automobile engines and construction machinery: various hydraulic oil filters, diesel filters, and water filters for internal combustion engine air filters, fuel filters, construction machinery, ships, and trucks.
9. Various lifting and handling operations: from construction machinery such as hoisting and loading to special vehicles such as fire fighting, maintenance and handling, ship cranes, windlasses, blast furnaces, steel-making equipment, ship locks, opening and closing devices for ship doors, Elevating orchestra pits and elevating stages of theaters, various automatic conveying lines, etc.
10. Various operating devices that require force such as pushing, squeezing, pressing, shearing, cutting, and excavation: hydraulic presses, die-casting, forming, rolling, calendering, stretching, and shearing equipment of metal materials, plastic injection molding machines, plastic Chemical machinery such as extruders, tractors, harvesters and other agricultural and forestry machinery for felling and mining, excavation equipment for tunnels, mines and ground, steering gears for various ships, etc.
11. High-response, high-precision control: tracking and driving of artillery, stabilization of turrets, anti-swing of ships, attitude control of aircraft and missiles, high-precision positioning system of processing machine tools, driving and control of industrial robots, metal Sheet pressing, thickness control of leather slices, speed control of power station generators, high-performance vibration tables and testing machines, large-scale motion simulators and entertainment facilities with multiple degrees of freedom, etc.
12. Automatic manipulation and control of various work program combinations: combined machine tools, automatic machining lines, etc.
13. Special workplace: operating equipment in special environments such as underground, underwater, and explosion-proof.
