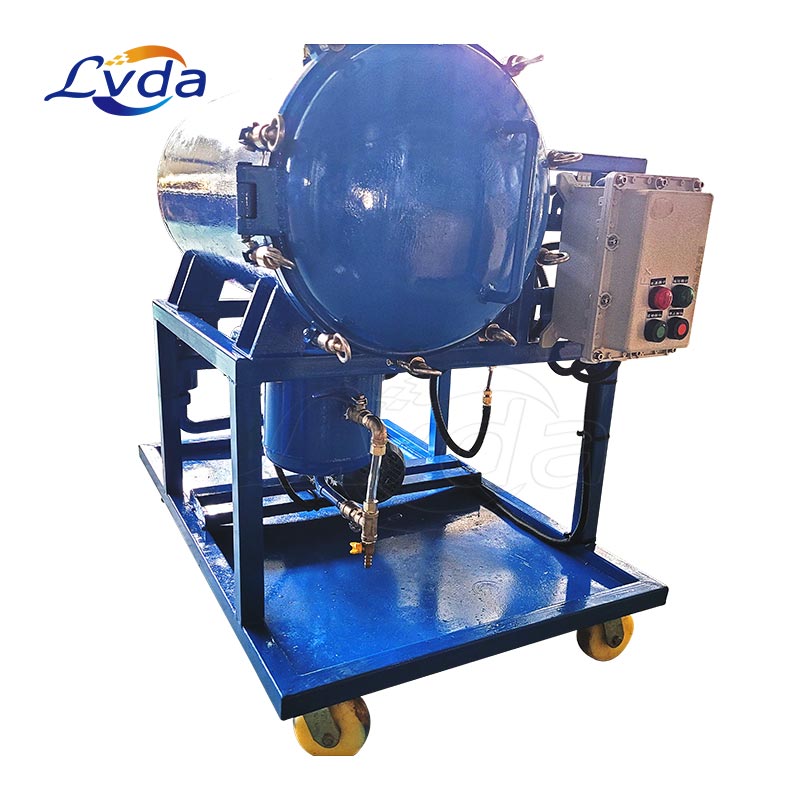

New turbine oil vacuum coalescing oil purifier
During the operation of various steam turbines and hydro turbine units, the turbine oil used for cooling, lubrication and speed regulation is easily polluted, resulting in increased moisture and impurity content, and oil emulsification, which seriously affects the safety and use of the unit. life. After years of research, we have developed the turbine oil vacuum oil purifier, which integrates vacuum drying, separation engineering technology, coagulation technology, adsorption technology and precision filtration technology. It can quickly and reliably remove moisture, gas, impurities, colloid, sludge and various pigments in oil under high vacuum. And reduce the dielectric loss and acid value, improve the degree of demulsification, and comprehensively improve the quality of the oil. It can realize online operation, and can automatically drain without stopping, so that the waste oil can meet the use standard of new oil, and the operation is simple.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features

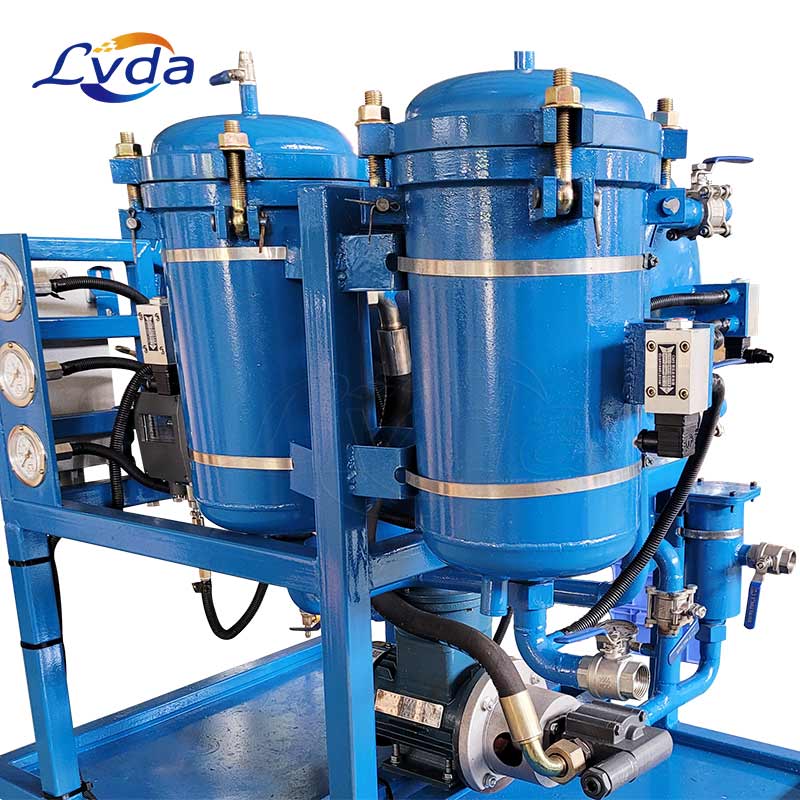

*.The machine adopts a multi-stage cartridge filter, which has a strong ability to filter out impurities. The high-flow washable filter element is used for the coarse filter, which has high filtration efficiency and can remove a large amount of impurities in the oil; Removes fine particles from oil.
*. The water separation device adopts high-quality coalescence and separation technology, and a special emulsification device (water separation) is installed, which can not only quickly and efficiently separate a large amount of water in the oil, but also facilitate the removal of trace water; the self-developed jet degassing device can effectively The condensed water automatic separation system is equipped with a strong air cooler to quickly condense and separate a large amount of water vapor and other gases discharged from the vacuum to achieve the effect of one-time separation.
*. High-quality filter elements and connection sealing materials with corrosion resistance, high temperature resistance and high mechanical strength are used; water ring vacuum pump imported from Germany is selected, and cooling liquid (or water) is used as the lubricating medium, so that gas is not afraid of entering the vacuum pump, and oil is avoided. The trouble of frequent oil change for the medium rotary vane vacuum pump.
*. The new heating device is adopted, the heating load is low, and the oil quality is prevented from aging.
*. The anti-fuel injection device adopts the photoelectric liquid level control method, which is sensitive and accurate in control, and can even sense the foam, and there is absolutely no fuel injection phenomenon.
*. Our company has launched a new vacuum coalescing oil purifier, which combines the advantages of vacuum oil purifier and coalescing oil purifier, which not only solves the financial problem of users purchasing imported coalescing oil purifier, It also overcomes the problem that the degree of automation of the pure vacuum oil filter is not high.
Product applications
Mechanical processing, metallurgical industry, petrochemical industry, cement plant, electric power industry, iron and steel industry, paper industry, textile industry, purification of turbine oil and transformer oil; water removal and impurity removal of oil in hydraulic lubrication system; comprehensive access to hydraulic lubrication system Improve system cleanliness.
