Product Details
Vacuum oil purify unit
By maintaining absolute fluid cleanliness, end-users can dramatically increase the life of critical wear components on rotational equipment, minimizing downtime and maximizing profitability.
The harmful effects of particulate and moisture contamination in hydraulic and lubrication oils have been well documented. By maintaining absolute fluid cleanliness, end-users can dramatically increase the life of critical wear components on rotational equipment, minimizing downtime and maximizing profitability.
Our vacuum oil purify unit designs and builds the most effective, durable, and user-friendly vacuum dehydrators on the market today. Special engineered design features maximize the water extraction rates of our oil purifiers, and top-quality components and workmanship ensure years of maintenance-free operation and performance.
Recirculating your hydraulic and/or lube oil with a Vacuum Dehydration Oil Purification System will help you maintain optimal fluid cleanliness in your system, extending the life of your rotating equipment and critical component parts, minimizing downtime and saving you money.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features

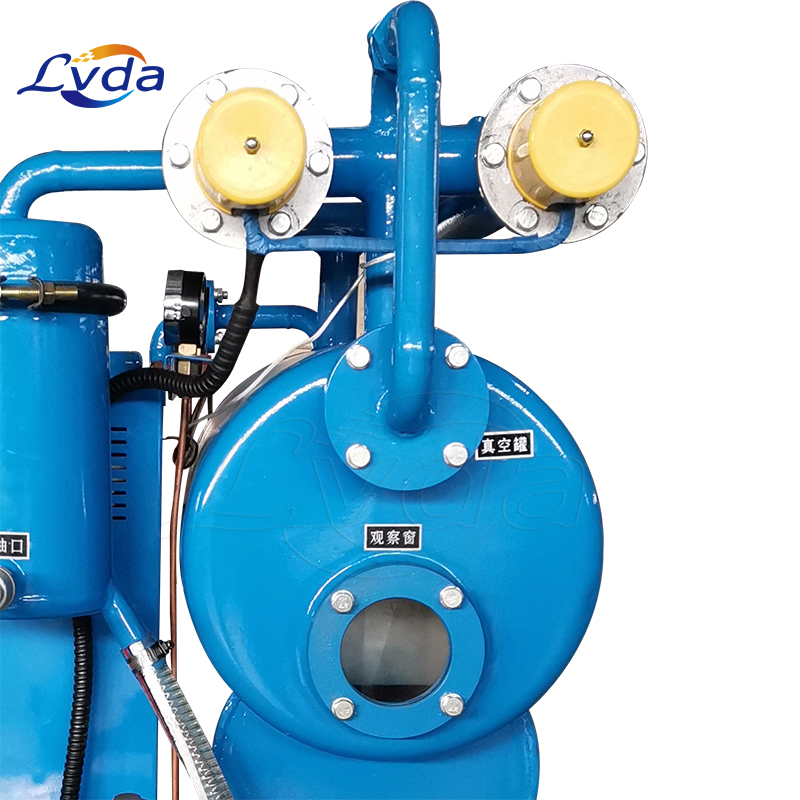

Permanent Dispersion Media Inside Vacuum Tower - maximizes water extraction rates, eliminates the need for costly replacement of coalescer filter elements, and enables the system to operate effectively on high viscosity gear oils.
Variable Frequency Drive - enables operator to dial in the optimal flow rate, and enhances the system overall performance during cold start-ups, on higher viscosity oils, or when a restricted inlet condition exists.
Claw-Style Vacuum Pump - pulls deeper vacuum, higher CFM, and requires much less maintenance than other conventional vacuum pumps.
Single Utility - requires 480V, 3-Phase electric service only, not a chilled water supply.
Operator can observe system operation and performance.
Plugged Filter Indicator Light - positive indication when the particulate removal filter element is plugged and needs to be changed.
Automatic Water Drain
Inline Digital Particle Monitor
Inline Digital Moisture Indicator
Explosion Proof Components
Stainless Steel Wetted Parts
4-Point Lifting Lug Cage Structure
Product applications
Hydraulic Oil
Turbine Oil
Lubrication Oil
Gear Oil
Transformer Oil
Diesel Fuel
Phosphate Ester (Fyrquel EHC Fluid)
PAO Fluid
