Product Details

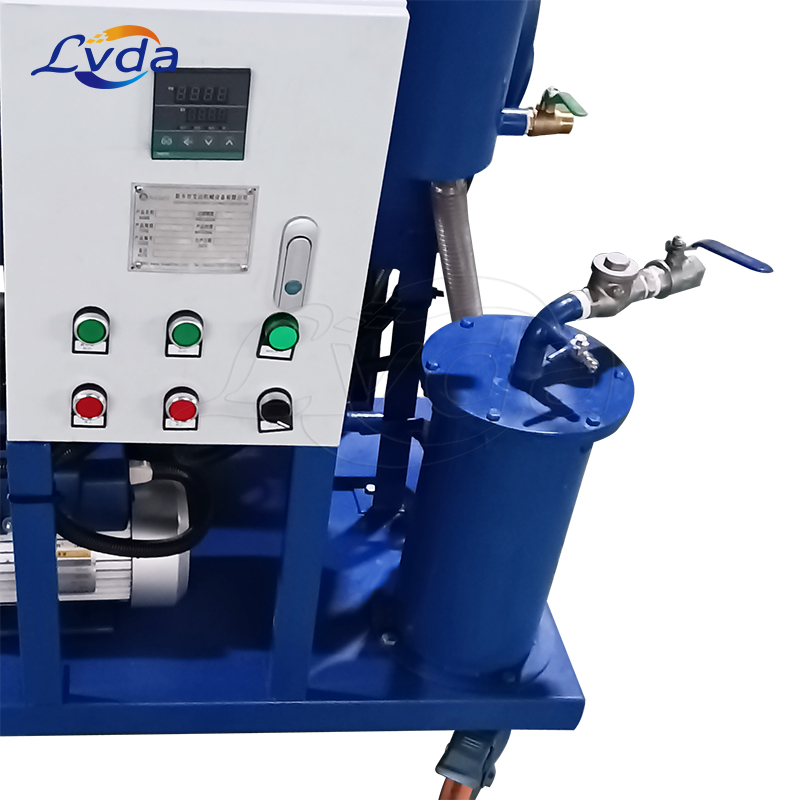

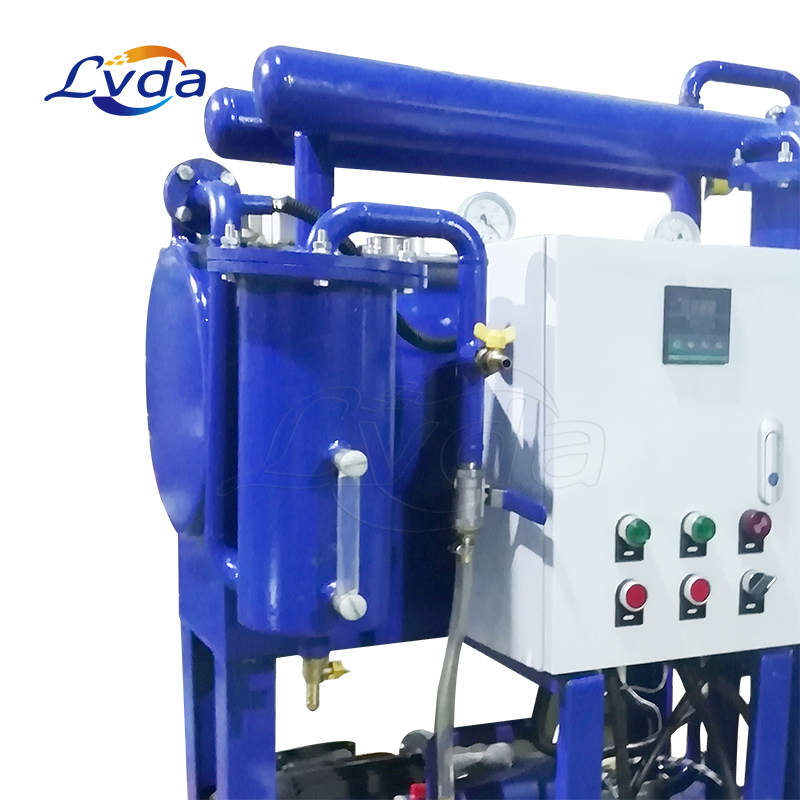

Vacuum oil purification machine
Our vacuum oil purification machine has been providing oil purification equipment to many overseas clients.
The vacuum oil purification machine systems have provided reliable performance in the field, consistently achieving very low particle counts and water content to meet or exceed stringent cleanliness specifications. Our vacuum oil purification machine provide excellent response time and level of support to meet the customers demanding requirements.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1. Claw-Style Vacuum Pump – very durable design for applications with high moisture content (removed water cannot cause premature failure of vanes), and high CFM rating optimizes “mass transfer” effect for high water extraction rates.
2. Permanent Dispersion Media Inside Vacuum Chamber maximizes the spread of oil over a large surface area, optimizing water extraction rates and eliminating the need for frequent and costly coalescer element change-out. Also enables system to work effectively on high viscosity oils.
3. Variable Frequency Drive – greatly enhances the system’s ease of use during cold start-ups, and enables it to be used effectively across a wide range of applications and oil viscosities.
4. Inlet Solenoid Valve – safety feature for automatic isolation of inlet.
5. Two Type J Thermocouples – (high limit and process) with shunt trip for redundant overheating protection.
Product applications
- ISO 32 Turbine Oil
- Hydraulic Oil
- Paper Machine Oil
- Gear Oil (ISO VG 150 – ISO VG 680)
- Compressor Oil
- EHC Fluid (Fyrquel? and other phosphate esters)
- Bio-Diesel
- Waste Oil (used engine oil)
- Heavy Fuel Oil and Bunker Fuel
