Product Details

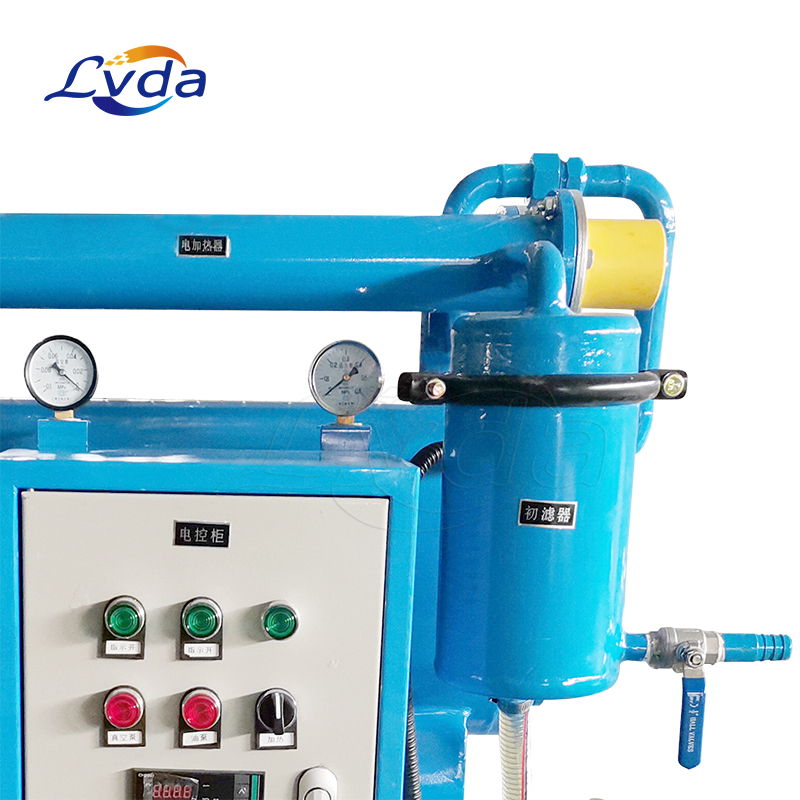

Vacuum turbine oil purifier machine
Vacuum turbine oil purifier machine is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. During the work of different kinds of steam and water turbines, the oil is easily polluted. The content of moisture and impurities increases in the oil. Oil emulsification seriously affects the machine’s safe operation and service life. This product can rapidly and effectively remove the water, gas and impurities according to turbine oil’s nature of high water content, easy emulsification and high impurity content. It makes the oil recover the new oil’s nature and guarantees that the machine works safety. It also adopts vacuum separation dewater and coalescence-separation dewater, which can thoroughly remove the liquid water, free water, and dissolved water.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features

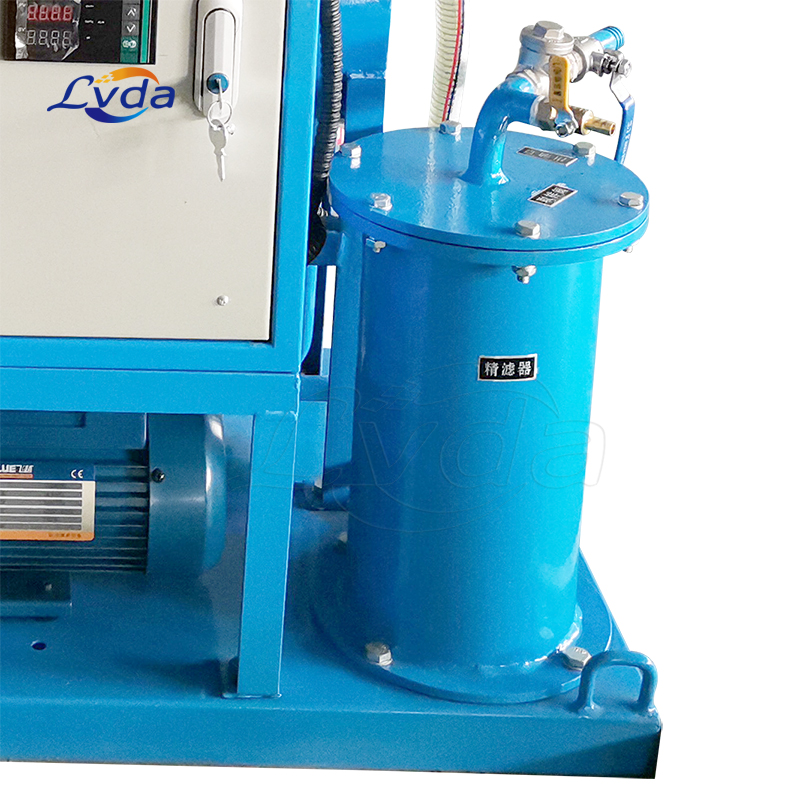

● Strong impurity removal ability: multi-stage high β value precision filter material, filtering step by step encryption to remove fine particles in oil, large dirt holding capacity, oil-absorbing magnetic filter element to filter out iron-containing fine impurities. And configure the filter filter pollution degree automatic detection function.
● High dewatering and degassing efficiency: a degassing and dehydrating system using three-dimensional evaporation technology. Introducing foreign advanced technology, integrating the advantages of gravity method, vaporization method, coalescence method, vacuum separation, mechanical filtration and so on.
● Controlling acid formation: Acids are formed by the interaction of water with metal particles produced in the system. Through effective impurity removal, water removal and degassing, air mixing is reduced and acid formation is prevented. Reduce oil oxidation to a minimum, maintain oil lubrication performance, improve system reliability, and extend oil service life.
● Low-density heating: The system adopts low-density circulating carbon fiber heating technology and optimized pipeline design to prevent oil cracking and ensure uniform heating and stable oil temperature.
● Automatic control: The machine adopts automatic constant temperature control, automatic liquid level control, automatic defoaming control, automatic pressure protection and other sophisticated configurations to ensure that the equipment does not spray oil during operation and runs safely and stably.
● Interlock protection: Overload protection, overpressure alarm shutdown protection, oil shortage protection, fuel injection protection, phase sequence protection, etc. ensure the long-term reliable operation of the whole machine.
● Humanized instruction: automatic design, and there are indications of oil temperature, pressure, vacuum degree, filter element pollution degree, running status and so on. The labelling is concise and clear.
● Modern design: The oil purification process of this machine is advanced in design. It can be matched with the process connection of hydraulic oil tank (oil station) and can be processed online or offline. It has a high degree of automation and can realize unattended operation. The device has a compact structure and is flexible and convenient to move.
● Good overall performance: The machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost and high oil filtering efficiency.
Optional configuration modes:
A PLC (Intelligent Programmable Logic Control System): touch screen man-machine dialogue interface with dynamic display. (optional)
B Imported components (optional imported brand vacuum pump set, motor oil pump set, filter elements, electrical components, instruments). (optional)
C flow meter. (optional)
D According to the working conditions, select the appropriate explosion-proof grade (Ex d II, Ex d I, BT4, CT4). (optional)
E Online micro water meter. (optional)
F Plate and frame type fine filter (in practical application, if QJC-T series turbine oil special vacuum oil filter is matched with LY series plate and frame pressure type oil filter, the oil cleanliness and filtration efficiency can be significantly improved) (optional) )
Optional form factor:
Base structure: 1. Mobile roller type; 2. Fixed installation type; 3. Mobile trailer type;
Rack structure: A, open type; B, roof awning type; C, fully enclosed rain-proof house; D, canvas shed shelter type;
Material selection: 1. High carbon steel; 2. Oil circuit stainless steel; 3. All stainless steel;
Color options: milk white; sky blue; grass green; industrial gray; warning yellow.
Product applications
The third-generation intelligent vacuum oil purifier specially developed for lubricating hydraulic thin oil.
The purpose of this series of vacuum oil filtration treatment is to eliminate particles, moisture, gas and other pollutants in the oil, and to reduce the acid value. Make the oil clear and transparent, restore the performance, and prolong the service life of the oil as much as possible.
This product is widely used in electric power, machinery, metallurgy, petrochemical, military, papermaking, home appliance manufacturing, hydraulic lubrication and other industrial industries to purify thin oils such as turbine oil, turbine oil, lubricating oil, hydraulic oil, refrigeration oil, and mechanical oil. Filtration treatment to achieve high-precision oil demand.
The vacuum oil purifier is an independent oil purification and filtration system with skid-mounted structure, which can be connected to the user's oil system for online circulation filtration, and can also be moved to the oil processing station for offline oil filtration.
In addition to the reliable function of filtering and purifying oil, the equipment can also conveniently switch valves for oil pumping, oil filling, and oil replenishment functions to meet the requirements of on-site use.
