Vacuum Oil Filtration Purification System
Vacuum Oil Filtration Purification System
Vacuum Oil Filtration Purification System

Vacuum Oil Filtration Purification System

Turbine Oil Purifier

Model Number:

Working pressure(Mpa) : 0.6

Rated vacuum(Mpa) : ≤ - 0.095

Water content : 5 - 30

Air content : ≤0.2%

Coarse filtration(μm) : 100

Get Quotation

Product Details

Vacuum Oil Filtration Purification System

Product details

VACUUM OIL filtration PURIFICATION SYSTEM, Insulation Oil Degassing and dehydration euipment, It has double-stage high pumping speed vacuum system, multistage stage vacuum analytical separation system, it can quickly separate out water, gases, impurities, polar substances and other deteriorated materials.

VACUUM OIL filtration PURIFICATION SYSTEM is applied to process transformer oil and insulating oil from power plant, power station, electric power company, power transmission equipment,transformers, industrial and mining enterprises, especially suitable for on-site installation, maintenance and purifying high level new oil, or running oil from big power transmission and distribution equipment and transformers on national main power transformation grid, which is above 110KV,400KV,700KV,1000KV,1100KV.

VACUUM OIL filtration PURIFICATION SYSTEM can shorten the oil treatment period for transformer installation and maintenance.so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.  Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels.   We are a designing, engineering and manufacturing company capable of application customization for best solutions.

Product parameters

 Model
AOP-1V-25
AOP-1V-32
AOP-1V-50
AOP-1V-100
AOP-1V-150
 AOP-1V-200
 Flow rate(L/min)
25
32
50
100
150
200
Working pressure(Mpa)


 0.6



Rated vacuum(Mpa)


≤ - 0.095



Water content


5 - 30



Air content


≤0.2%

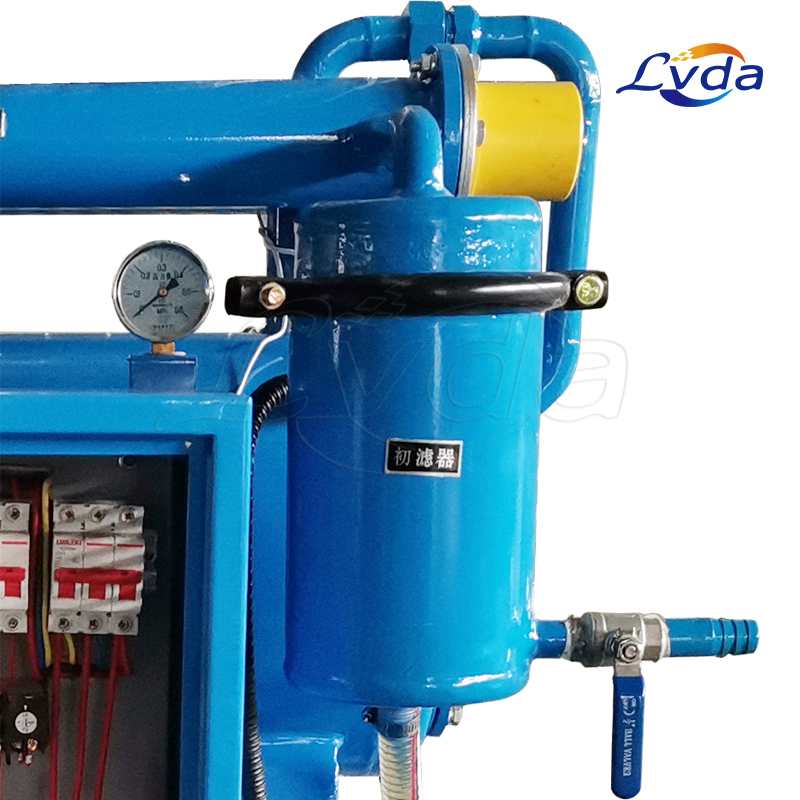

Coarse filtration(μm)


100

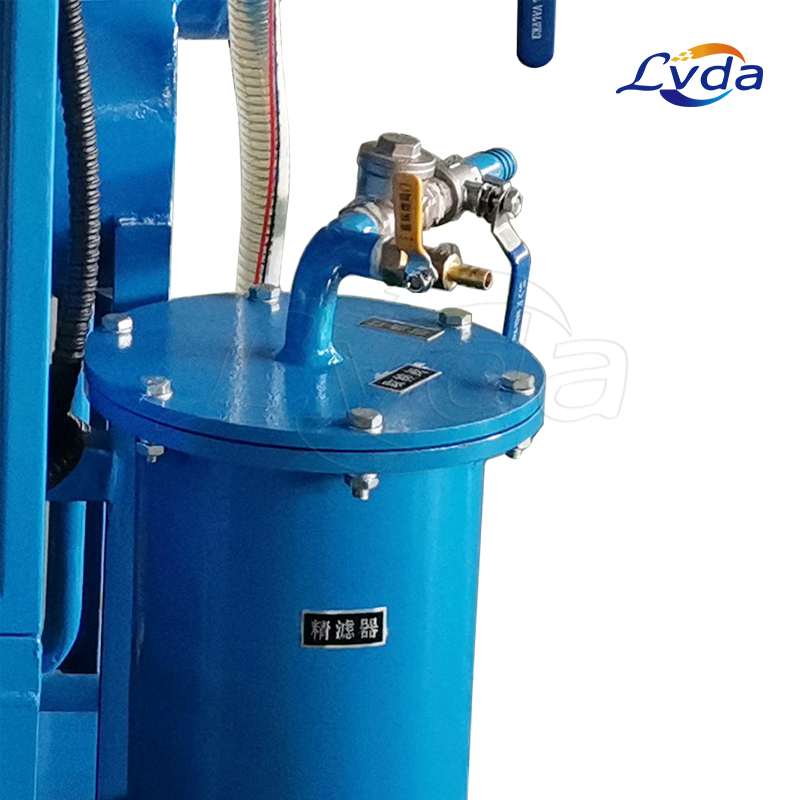

Grade 1 filter rating(μm)


10、20


Grade 2 filter rating(μm)


3/5


Pressure differentials


00.2Mpa


Voltage(V)


AC 380V(Three-phase)、50Hz


Motor power(kw)
18 26 36 65 65 135
 Weight(kg)
360
470
680
840
960
1500

Dimensions

(mm)

12500x920x1600
1350x980x1600
1500x1060x1800
1600x1080x2100
1800x1200x2200
2000x1200x2200

Note: * -is filter's rating,such as 03 is 3 microns.

**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate

hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

****-explosion-proof type: add F before type, Omission: normal type

Product features

*VACUUM OIL filtration PURIFICATION SYSTEM adopts the complex high speed degassing spiral flow structure, oil gas separate dual channel technology, redissolution technology in anti oil gas separation, it quickly removes various organic hydrocarbon gases, ensuring no acetylene and hydrogen in oil.

*VACUUM OIL filtration PURIFICATION SYSTEM has high working vacuum, fast oil filtering and sound oil protection.

*VACUUM OIL filtration PURIFICATION SYSTEM is suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.

Product applications

1.Purification of turbine oil and transformer oil

2.Water removal and impurity filtration of oil in hydraulic lubrication system

3.Overall improvement of cleanliness of hydraulic lubrication system

4.Regeneration and purification of various oils
