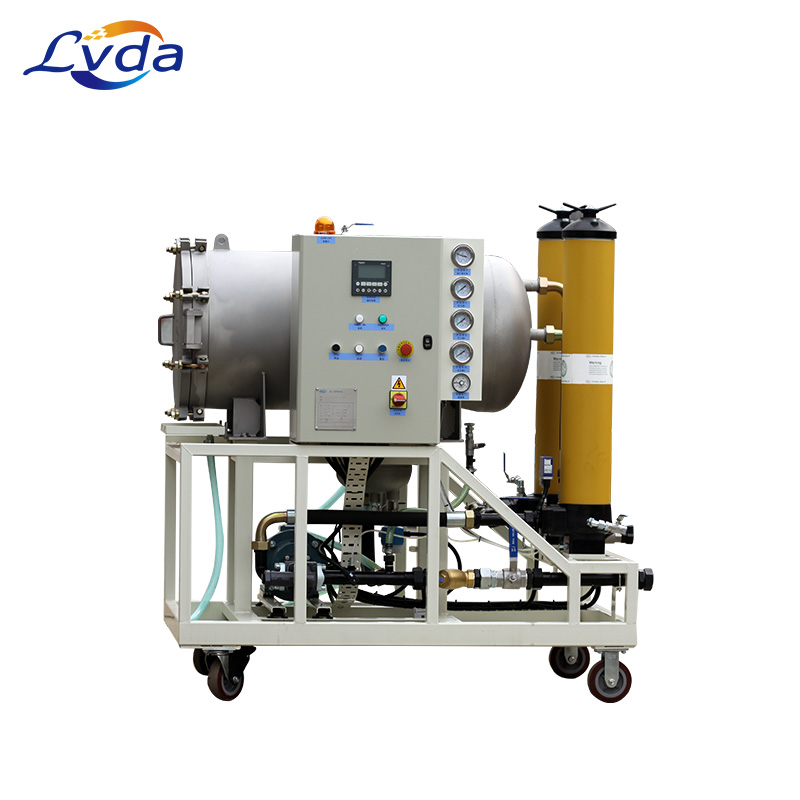

AOP-D series coalescence dehydration oil purifier is ideally for the online filtration of unqualified turbine oil inside of the mechanical equipment like like steam turbine, hydraulic turbine, generator in the power plant and other industries. Especially for the oil with a large amount of impurities like steam, acid, bubbles,etc.
System features:
It integrates two functions of fine filtration and high-efficiency dehydration, especially suitable for separating large amounts of water in oil.
The advanced "coalescence separation" technology for dehydration has been applied to it.
Product performance:
The machine has a five-stage filtration system as below:
(1)The FIRST stage:
oil suction filter, located at the oil suction port. As a coarse filter, it would protect the oil pump and extend the service life of the main filter.
(2)The SECOND stage:
pre-filter, located in the upstream of the coalescer. Not only prolonging the life span of the coalescer but also reducing the content of particles in the filtered liquid could be achieved.
(3)The THIRD stage:
coalescer, to make water inside of the oil condense and sink.
(4)The FOURTH stage:
separation filter, to further intercept the tiny drops of water in the oil, thus achieving the function of efficient separation.
(5)The FIFTH stage:
fine filter, to adopt filter material with higher precision and larger pollutant-holding capacity, which can clean the oil safely and efficiently.
Technical data:
Rated flow |
25 L/min |
Rated pressure |
0.6 Mpa |
Initial pressure loss |
≤0.1 Mpa |
Coarse filtration |
100 micron |
Grade 1 filter rating |
10, 20 micron |
Grade 2 filter rating |
3, 5 micron |
Pressure differentials |
0.2 Mpa |
Working temperature |
25-80 ℃ |
Recommended viscosity |
10-120 cSt |
Motor power |
0.75 kw |
Advantages:
There are a range of incomparable advantages which vacuum¢rifugal method can't achieve:
(1)It could break up all the oil- -water emulsification structure in the medium through the filtration of particle filter system.
(2)The cleanliness of the medium can be stably controlled to the system requirements, in order to ensure the cleanliness of the oil.
(3)It would NOT change physical&chemical properties of the oil, thus extending its service life.
(4)Lower energy consumption, lower operating costs.
(5)Excellent system configuration, strong continuous working performance, which is suitable for online operation.
Optional devices:
1.PLC, touch-screen type human-machine dialogue operation interface, with dynamic display installed.
2.Imported components and parts, including imported brand of vacuum pump set, electric oil pump group, filter elements, electrical components, instruments, etc.
3.Fluid meter.
4.Online micro water meter with suitable explosion-proof grade, selected from Ex d II、Ex d I、BT4、CT4 according to actual working conditions.
5.Plate&frame fine filter. In addition, LY series plate& frame pressure-type oil purifier could be equipped, so as to greatly improve the filtering efficiency and protect the filter elements.
Features:
1.Special design of the whole machine, which coalesces good looking appearance, low power and low cost.
2.Integration of two functions, fine filtration and high-efficiency dehydration.
3.Continuous processing of large-scale flow, which means stronger ability to purify and higher efficiency of dehydration.
4.Absolutely physical purification, which could prolong the service life of oil by avoiding any change on its physicochemical property.
5.Available for automatic drainage, which means that the machine could be totally independent of operators.
6.Multilayered purification, imported materials from Europe and the USA were adopted to all filter elements, which could reach a better control performance of particle sizes (available for NAS 5 to 8).
Applications:
1.Purification of steam turbine oil and transformer oil
2.Dehydration and removing impurity of oil in the hydraulic lubrication system
3.Improve the cleanliness of the hydraulic lubrication system after being applied
