The high-flow filter is developed for large-diameter and high-velocity pipelines, and is suitable for high-flux working conditions. area. Its opening rate of more than 50% is combined with the straight-through structure, which combines the maximum flow rate and the minimum pressure difference, which greatly reduces the overall size and weight, thereby reducing investment costs and operating costs, as well as labor resources.
Product features

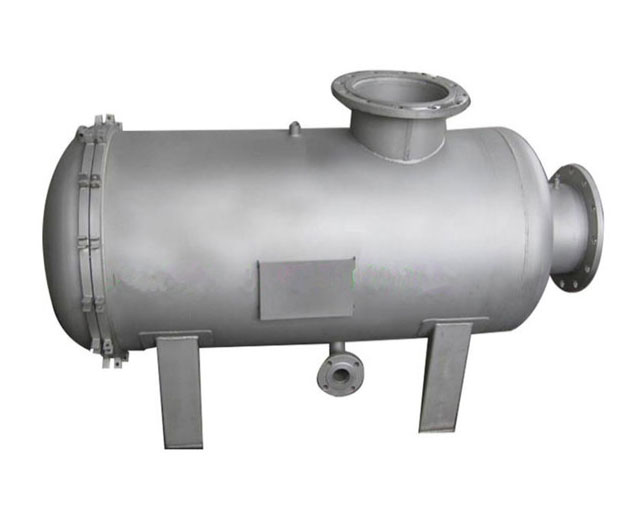

The large-flow filter developed by Ada has two types of structures: vertical and horizontal. Conventional 20-inch and 40-inch filter elements usually adopt vertical structure. For filters with a flow rate of more than 1000T/H, horizontal structure can be selected. The use of 60-inch filter element can greatly reduce the number of filter element replacements while meeting the large flow rate.
Technical parameters
Technical parameters of large flow filter
Filter design pressure: ≤1.0Mpa
Working temperature: ≤80℃
Filtration flow: 10~420T/H
Filtration precision: 1um~100um
Number of filter elements: 1~12
Filter specifications: 20”, 40”, 60”
Surface treatment: mechanical polishing, electrolytic polishing, sandblasting, pickling.
Polishing accuracy: inner wall 0.6um, outer wall 0.8um
Material: SUS304, SUS316L
application
Typical applications of high flow filters
Pharmaceutical industry: pre-filtration of various injections, liquid medicines and injection bottle washing water, pre-filtration of large infusions and various antibiotics and traditional Chinese medicine injections.
Food industry: Filtration of alcohol, beverages and drinking water.
Electronics industry: Pre-filtration of pure water and ultrapure water.
Petroleum and chemical industry: filtration of various organic solvents, acids and alkalis, oil field water injection filtration.
Case
We have a client from India. He is in pharmacy industry. He needs a set of filter to treat his medicine raw fluid. After analyze his data, our engineer proposed this filter with 20t/h, precision: 1 micron. Material is ss316L. the client is satisfied with the model. After installation and commissioning, currently the filter is working well. Help the client realize their purpose. They agreed to order more filters in future after their new workshop is ready.
LVDA filter has focused in filtration products since 1998, with ISO9001 certificate. our factory cover area of 52000 sqm, and have R&D team of 40 staff, with skilled workers which can guarantee quality. Over the past years, we have provided oil filters and filter cartridges to many customers around the world. We welcome you to inquire. I believe we can provide you the most support and have a win-win cooperation.
