Product Details

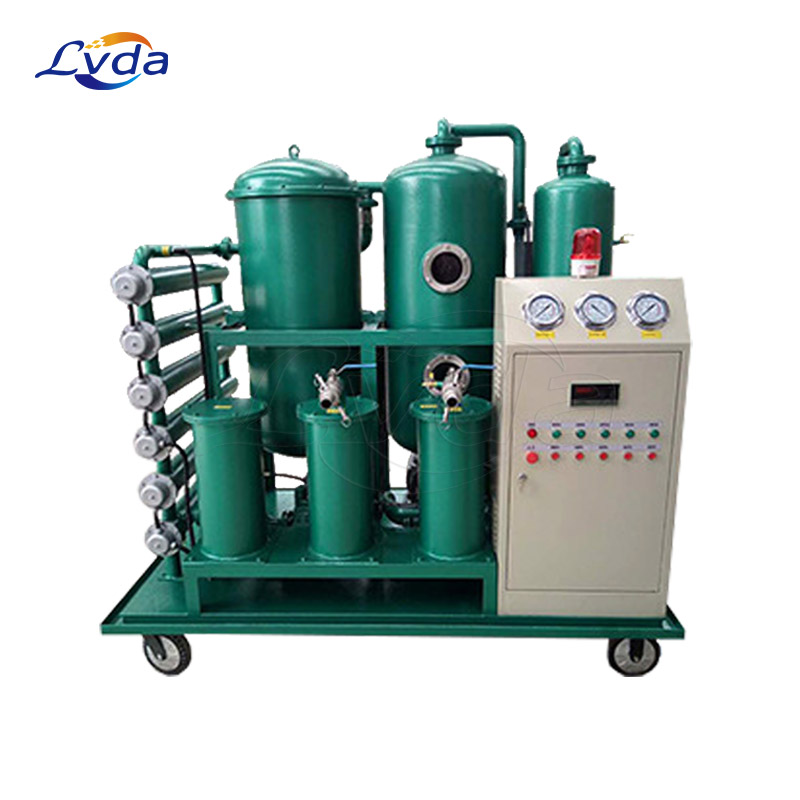

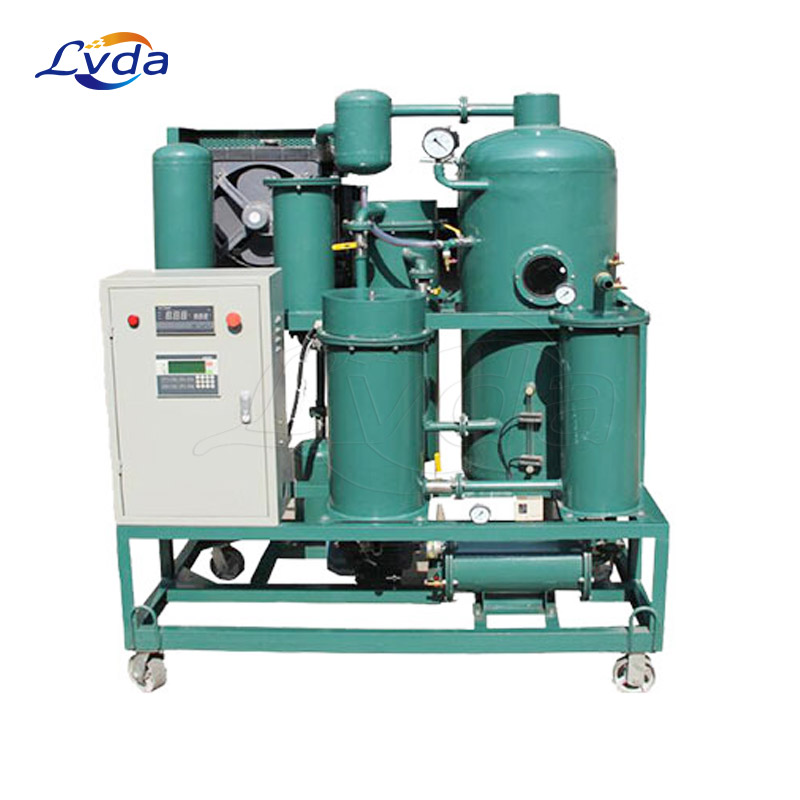

This high-viscosity oil precision filter oil dispenser is mainly used to deal with unqualified gear oil, high-viscosity oil filtration, etc. The device handles values of oil viscosity (150-680). This machine is usually equipped with three or more filtration systems, and can also be equipped with more than five filtrations according to customer requirements. The equipment is light and flexible, and the operation is simple. NK series is equipped with a heater system and a constant temperature control system, which can set the heating temperature arbitrarily and automatically control the working state of the heater, especially suitable for filtration of high-viscosity lubricating oil. The treated lubricating oil has low emulsification value, high filtration precision and low impurity content, which can meet the parameter requirements after filtration, and can be used repeatedly in high-precision hydraulic, pneumatic, and lubrication equipment at home and abroad. The machine can also be used for long-distance, high-lift refueling and oil filling. It is suitable for purification and regeneration of various lubrication in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and other industries.
Characteristics of gear oil: It is mainly based on petroleum lubricating oil base oil or synthetic lubricating oil, and is an important lubricating oil prepared by adding extreme pressure anti-wear agent and oily agent. It is used in various gear transmission devices to prevent tooth surface wear, abrasion, sintering, etc., prolong its service life, and improve the transmission power efficiency. Gear oil should have good anti-wear, load resistance and suitable viscosity. In addition, it should also have good thermal oxidation stability, anti-foaming, water separation performance and anti-rust performance. Since the gear load is generally above 490 MPa (MPa), and the hyperbolic tooth surface load is as high as 2942 MPa, in order to prevent the tooth surface from wear and abrasion caused by oil film rupture, extreme pressure anti-wear agents are often added to the gear oil, and sulfur is commonly used. - Phosphorus or sulfur-phosphorus-nitrogen type additives.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features
The multi-stage precision filtration system adopts the mesh filter element of AVIC Filter Factory combined with the impurity removal technology of polymer filter material imported from the United States, which realizes the high efficiency of solid-solid separation and solid-liquid separation.
The new high-efficiency far-infrared carbon fiber heating system has low heating load, uniform heating and low energy consumption.
Using the whole machine interlocking protection device, the heater, oil pump and liquid level controller work together.
Applications
●To filter high-viscosity gear oils or lubricants
●To fill-up high-viscosity gear oils or lubricants
●The by-pass filtration for working hydraulic lubricants system
