Model Number: OFU10PNB03B

Viscosity Range cSt : 10-160

Rated Pressure Mpa : 0.6

Pressure Loss Mpa : =0.01

Primary Filtration µm : 100

Fine Filtration µm : 3, 5, 10, 20, 40

Get Quotation

Product Details

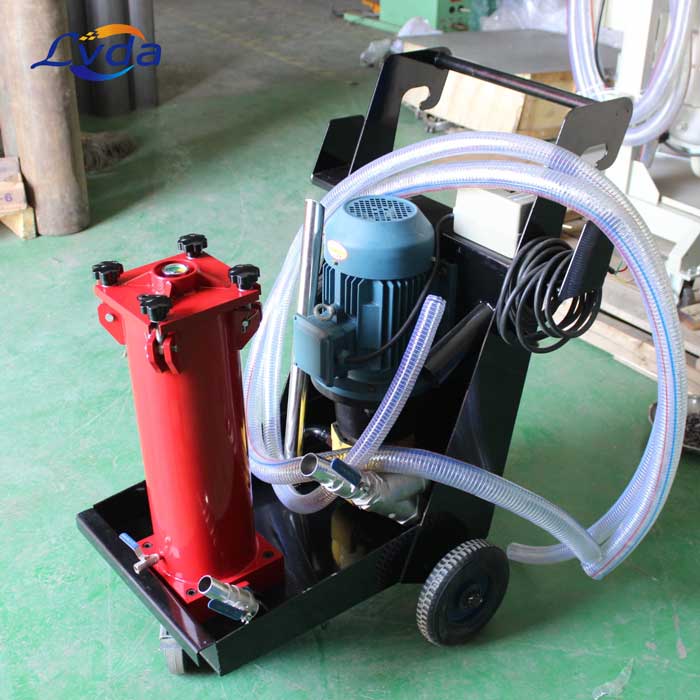

OFU10PNB03B mobile oil filtration unit mainly adopts the method of increasing the high precision step by step to improve the interception accuracy of the filter element to achieve the effect of oil filtration and impurity removal.

Advantages

This machine can be customized to produce required filtering degrees depends on customer’s actual needs to satisfy different use application. It can effectively purify the big particles, and tiny& fine mechanical impurity from contaminated oil fast and thoroughly as required. It is a very portable oil filtering and oil delivery device for power industry, petroleum, chemical, metallurgy, mechanics and railway. Also it is suitable on impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil. As a portable and small oil cleaning and oil maintenance device, it performs tremendous functions of oil filling, oil drawing, oil draining, oil transferring, oil delivery and high precision oil cleaning.

Parameter
Flow Rate L/min2532405063100150
Temperature Range°C5-80 (+40°F ~ +175°F)
Viscosity Range cSt10-160
Rated Pressure Mpa0.6
Pressure Loss Mpa=0.01
Primary Filtration µm100
First Fine Filtration µm10, 20, 40
Fine Filtration µm3, 5, 10, 20, 40
Supply Power3 Phase,380 VAC, 50 Hz
Motor Power kw0.550.751.11.11.52.23
Weight Kg46789096102120160
Dimensions (mm)520x350x950520x350x950720x680x1020720x680x1020720x680x1020720x750x1020720x750x1020
