Other Oil Filtration Units

Model Number:

Working vacuum : -0.04~-0.098

Working oil temperature : 30~160

Working pressure : ≤0.8

With power supply : 380

Noise : ≤70

Get Quotation

Product Details

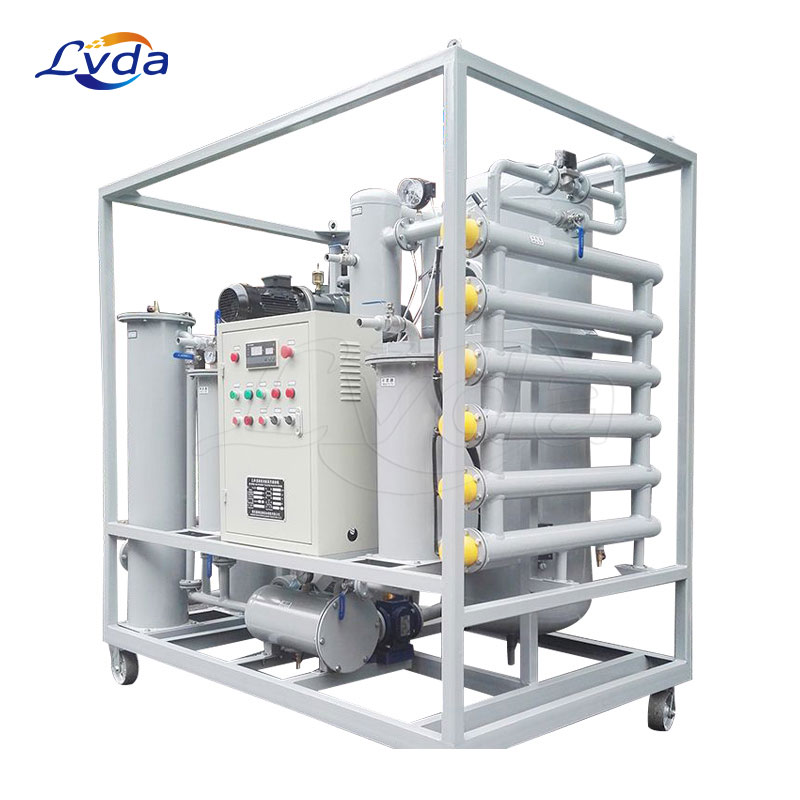

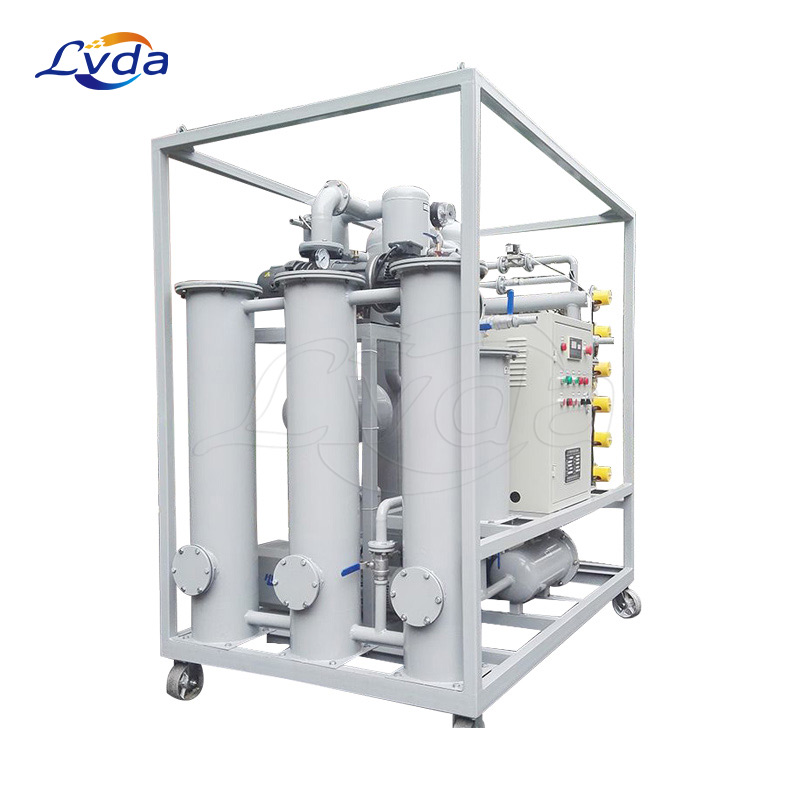

The deteriorated insulating oil regeneration decolorization oil filter to remove oxides and free carbon is a china-made machine, it's made in xinxiang, henan province, china.

And the made is made by good materials.

Deteriorated insulating oil regeneration decolorization oil filter to remove oxides and free carbon is usually used for regular centralized treatment of scrapped oil products, the oil products can meet the relevant oil product standards and can be reused many times, that greatly saves the company's costs for purchasing new oil and reduces the money of the corporation. At the same time, because the oil is in good condition, the wear and tear of the equipment is reduced, the maintenance cost of the equipment is reduced, and the service life of the equipment is improved.

So, deteriorated insulating oil regeneration decolorization oil filter to remove oxides and free carbon is a good machine to be used.

Product parameters

 Technical item  Unit


  Model




 AD-30 AD-50 AD-100 AD-150 AD-200 AD-250 AD-300
 Flow  L/min 30 50 100 150 200 250 300
 Average power  Kw/h 7 7 9 9 12 15 15
 Heating power  Kw/h 3 4.5 6 6 9 9 11
 Working vacuum  Mpa


  -0.04~-0.098


 Working oil temperature  ℃


 30~160


 Working pressure  MPa


 ≤0.8


 With power supply  V


 380


 Noise  db(A)


 ≤70



Features

1. In addition to the functions of dehydration, degassing and impurity removal of general vacuum oil purifiers, this machine also has the function of regenerating inferior oil, which can effectively remove polar substances such as deep oxides and free carbon in the oil. , It can restore the comprehensive indicators such as the anti-oxidation and acid-base water solubility of inferior oil.

2. This machine can be used for three purposes: it can use vacuum dehydration, degassing and impurity removal systems independently, and can use regeneration system independently, or both can be used at the same time.

3. This machine can not only remove the moisture, impurities and gas in the unqualified insulating oil and improve its withstand voltage value, but also make the acid value, PH value and other indicators in the insulating oil meet the national standards, and can filter free carbon, Deep oxides, etc., so that the indicators of insulating oil have been comprehensively improved.

Applications

This machine is suitable for the maintenance and installation of power insulation equipment such as transformers, oil switches, and mutual inductors that have been running for many years. Especially suitable for the regeneration of seriously inferior insulating oil.
