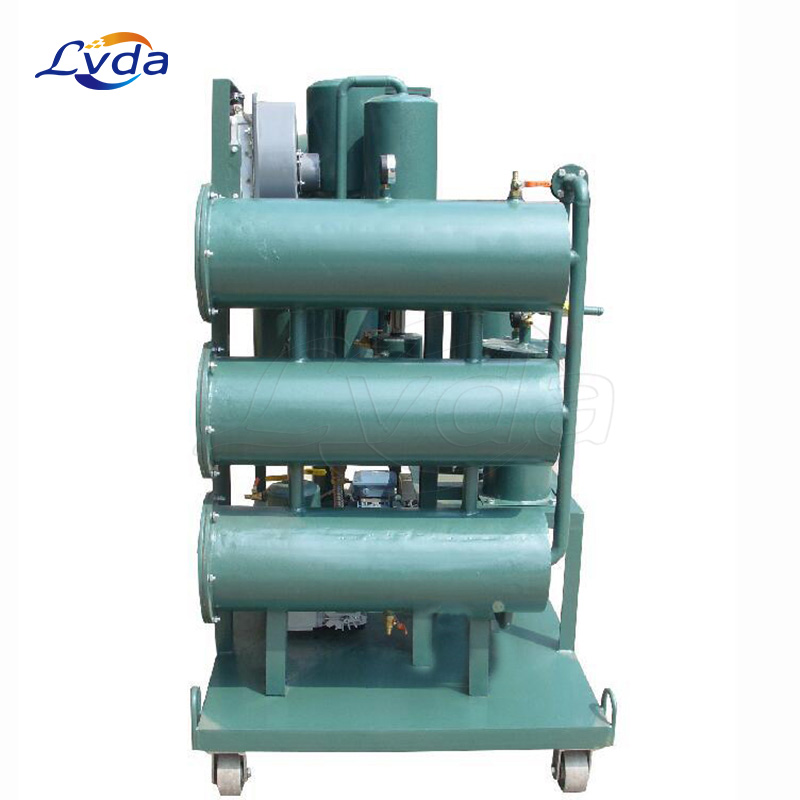

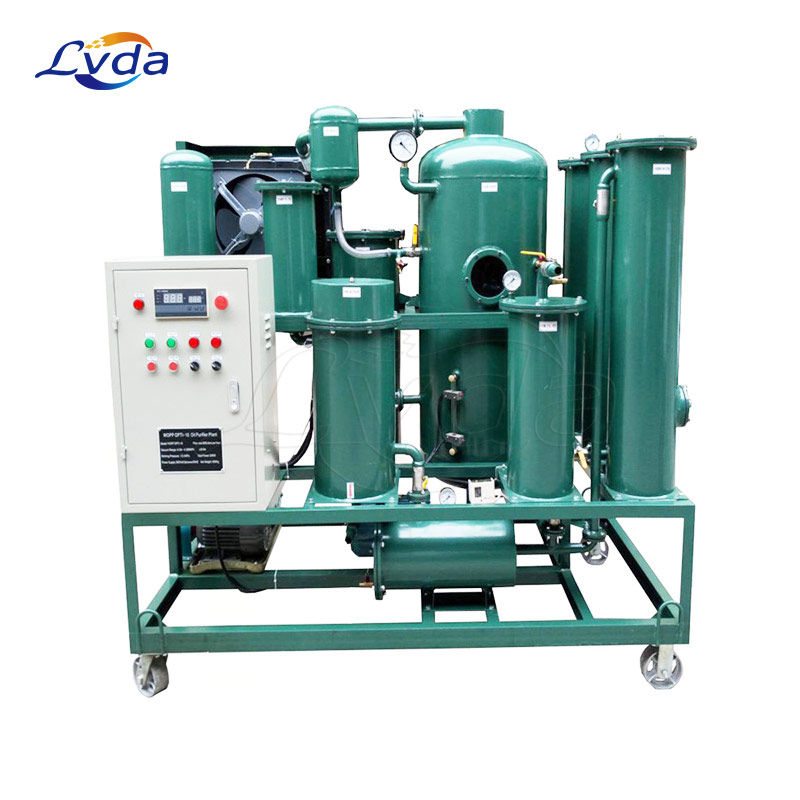

Product Details
This insulating oil regeneration oil purifier, regeneration oil filter, decolorization oil filter can remove moisture, impurities, and gas in the unqualified insulating oil, improve the withstand voltage value, and make the acid value, PH value and other indicators in the oil meet the national standards. standard.
It can filter free carbon, deep oxides, etc., so that the indicators of insulating oil are comprehensively improved.
Product parameters
| Technical item | Unit |
|
|
| Model |
|
|
|
|
| AD-30 | AD-50 | AD-100 | AD-150 | AD-200 | AD-250 | AD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Average power | Kw/h | 7 | 7 | 9 | 9 | 12 | 15 | 15 |
| Heating power | Kw/h | 3 | 4.5 | 6 | 6 | 9 | 9 | 11 |
| Working vacuum | Mpa |
|
|
| -0.04～-0.098 |
|
|
|
| Working oil temperature | ℃ |
|
|
| 30～160 |
|
|
|
| Working pressure | MPa |
|
|
| ≤0.8 |
|
|
|
| With power supply | V |
|
|
| 380 |
|
|
|
| Noise | db(A) |
|
|
| ≤70 |
|
|
|
Features
● This machine can be used for three purposes in one machine: the vacuum system can be used independently for dehydration, degassing and impurity removal, and the regeneration system can be used independently, or both can be used simultaneously.
● It can effectively remove polar substances such as deep oxides and free carbon in oil, and can restore the comprehensive indicators such as anti-oxidation and acid-base water solubility of inferior oil.
Using a special decolorizing agent, the color of the dark aged transformer oil can be taken off and regenerated to be similar to the color of the new oil, and a flexible discharge device is designed, which has short time, quick effect and less consumption. Decolorization in a vacuum state can greatly save the cost of regeneration treatment, the waste residue does not pollute the environment (can be used for building walls and paving), and is non-toxic and harmless.
One machine can be used for multiple purposes: it can be used independently as a vacuum dehydration, degassing, and impurity removal system, and can be used independently as a decolorization and regeneration system, or both can be used at the same time.
This machine can not only remove the moisture, impurities and gas in the unqualified insulating oil and improve its withstand voltage value, but also make the acid value, PH value and other indicators in the insulating oil meet the national standards, and can filter free carbon and deeply oxidize materials, etc., so that the indicators of insulating oil have been comprehensively improved.
High degree of automation, PLC automatic control, touch screen operation (export type), and dynamic display, can be operated with a computer network.
Applications
It is suitable for the maintenance and installation of power equipment such as transformers, oil switches, and transformers that have been in operation for many years. Especially suitable for the regeneration of seriously inferior insulating oil. This machine has all the functions and features of a high-efficiency vacuum oil filter.
