Product Details
Our portable oil purifier high precision oil filter cart is to filter and purify the contaminated oil, restore or improve the properties of the oil itself. Including oil cleanliness, water content, air content, acid value, viscosity, flash point, dielectric strength, color, etc., and can effectively remove impurities in the oil to ensure the safe operation of oil equipment.
The hydraulic oil, lubricating oil, and transformer oil used in industrial production will contain many impurities after a period of use, and these impurities will affect the quality of the oil.
The use of an oil purifier can effectively remove various impurities in the oil. Users can also choose different oil purifiers according to the types of impurities.
The oil purifier includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability, and stable operation.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

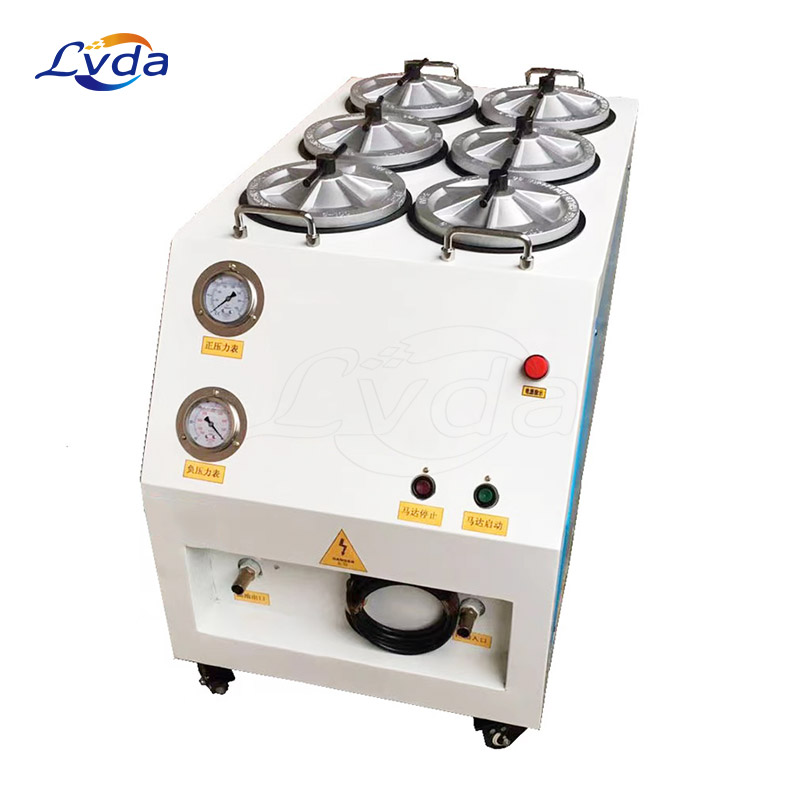

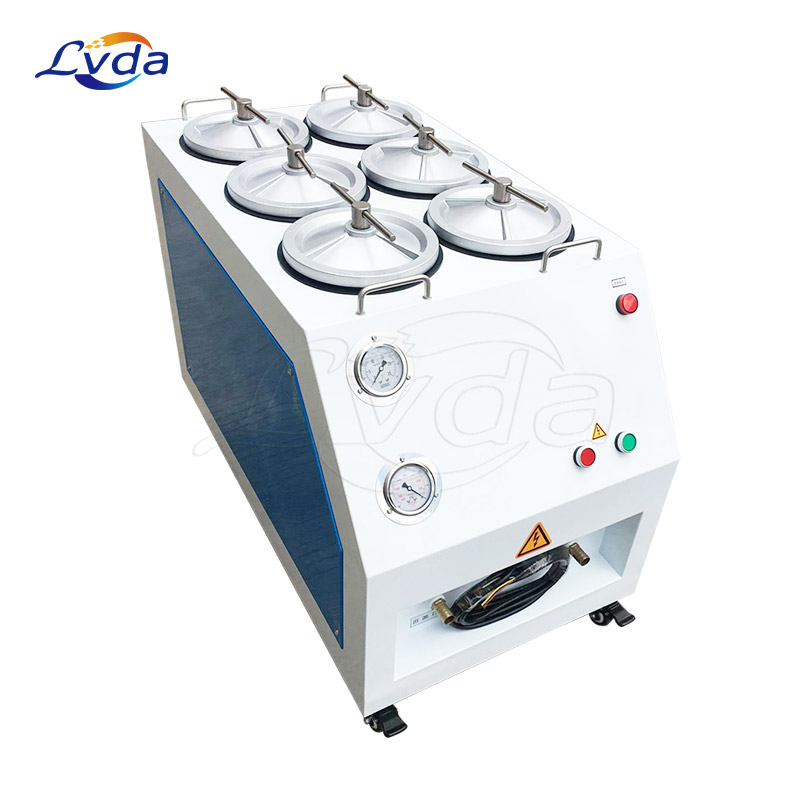

Our portable oil purifier high precision oil filter cart consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Application
Filtering when refueling hydraulic lubrication system
Bypass filter when hydraulic lubrication system is working
Circulation filtration before the hydraulic lubrication system is put into operation
The oil of the hydraulic lubrication system is not pumped out through the pump filter of the equipment itself
