Product Details
Portable high precision oil purifier is of 3-stage portable precision oil purifier , small size and flexible , easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press, and it is small size and flexible , easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press and has a long lifetime, being a new substitute for frame filter press.
Portable high precision oil purifier is composed of four-stage oil filter element. And as designed to be trolley type, so it is portable.This unit is simple and easy to operate, low cost. So it is a three-stage oil purification system which has strong filtering capacity for many different kind of contaminated oil, which has high capacity impurities, or low, and big particles or small, it’s suitable for all occasions use and most requirements can be satisfied well at one time. it’s also very portable and easy to move for on-site filtration work with trolley design. high accuracy oil filtration purifier system unit can be customized for different filtering requirements depends on customer’s actual needs so to satisfy different use application. It can effectively purify the big particles, and tiny&fine mechanical impurity from contaminated oil fast and thoroughly as required.

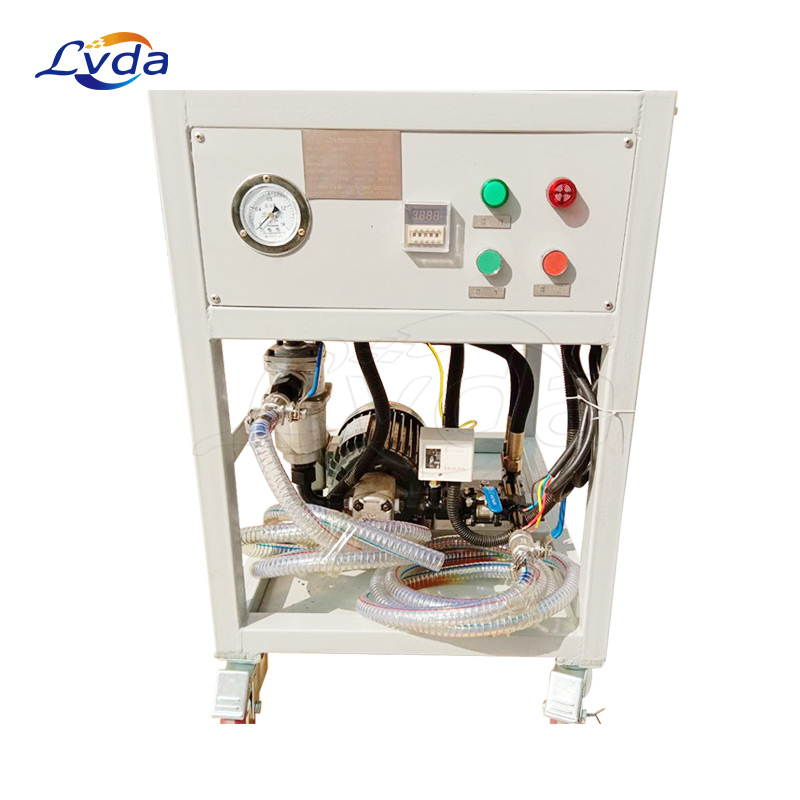

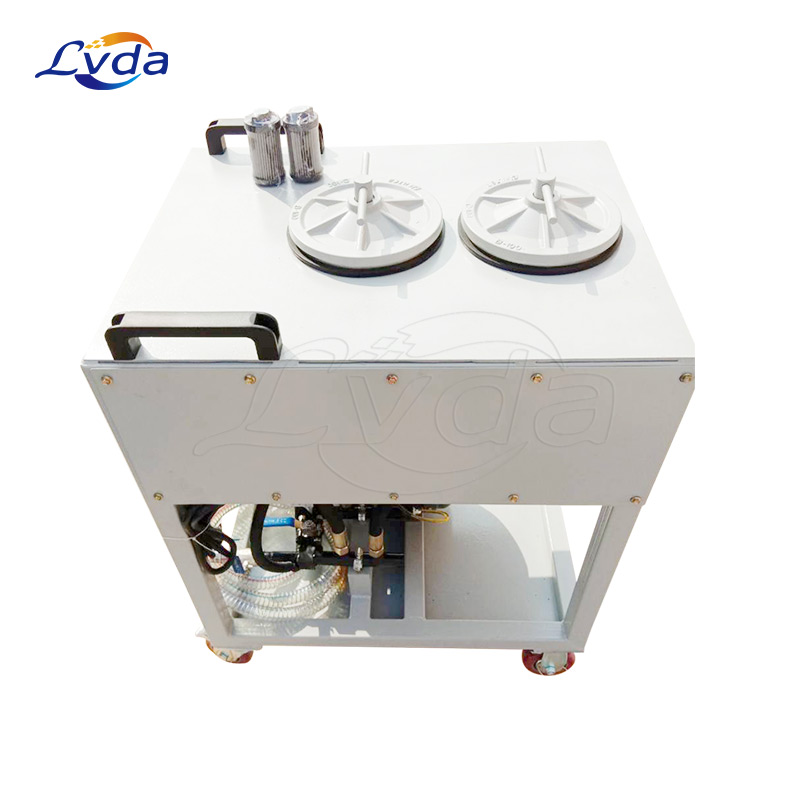

Our portable high precision oil purifier consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.
This portable high precision oil purifier is simple and easy to operate, very low price, and low consumption for spare parts. It is no need of purification paper, and no contamination to the ground. This portable high precision oil purifier is an ideal substitute of the board-frame oil purifier and the centrifugal oil purifier.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
High-fficiency electric heating system, automatic control, less power consumption.
Strong ability of demulsific ation, separating oil and water fficinty.
Large area three-dimensional flash disillation technology.
Interlocking protection mechanism.
Automatic oil level controller.
Humanized design, easy control for operation and supervision.
Automatic pressure protect system.
Applications
Insulating oil filtration and purification
It’s popular as oil filtering and oil delivery device for power industry, petroleum, chemical, metallurgy, mechanics and railway. Also it is suitable on impurity removal of mutual inductor, lathe, and oil breaker which do not use large quantity of oil.
To be used for precision filtration of solid impurities in engine oil, lubricant oil and insulation oil ,edible oil, also has long distance and high lift oil filling function.
