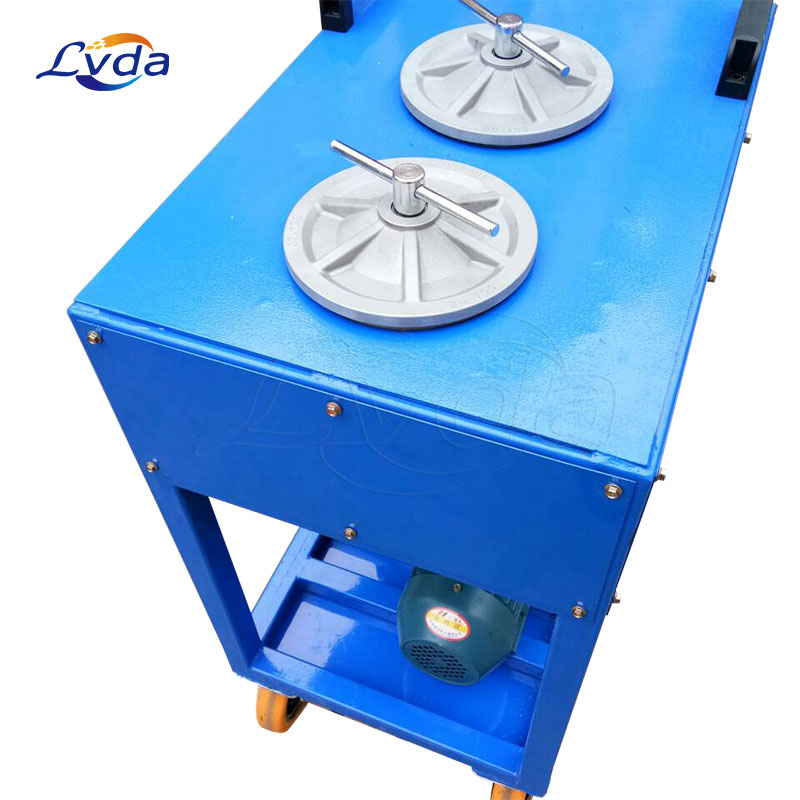

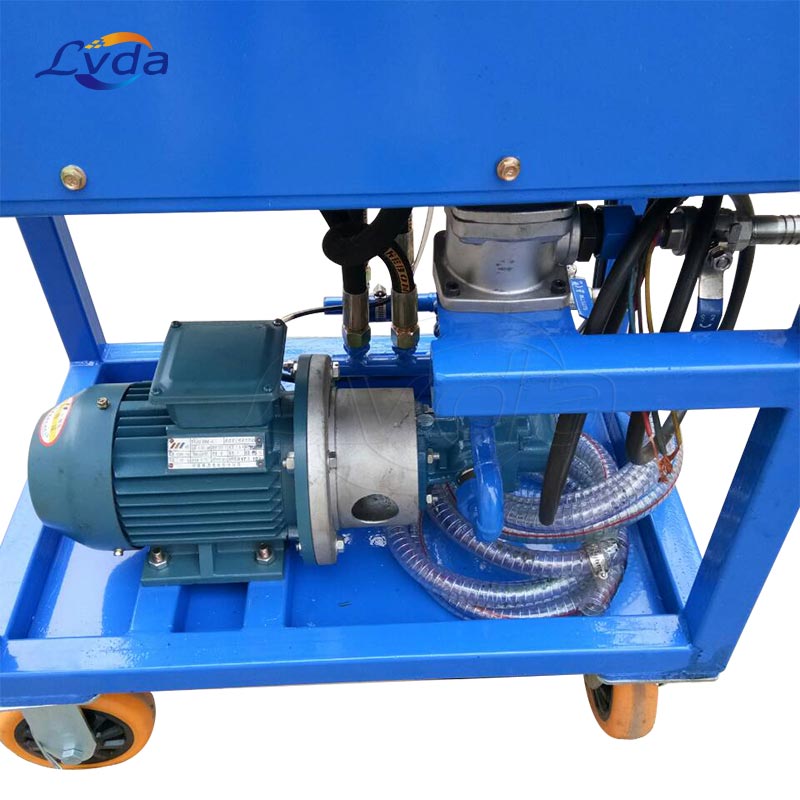

High precision hydraulic oil filtration plant
High precision hydraulic oil filtration plant
High precision hydraulic oil filtration plant

High precision hydraulic oil filtration plant

Other Oil Filtration Units

Model Number:

Rated pressure(MPa) : 1.6

Differential pressure : 0.8Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-180

Voltage(V) : ​AC380V(Three- phase)、50Hz

Get Quotation

Product Details

High precision hydraulic oil filtration plant is an optional equipment for processing hydraulic oils, machinery oil, compressor oil, refrigerator oil, and so on. The Series High precision hydraulic oil filtration plant can effectively remove water, particles and other contaminants from oil. After processing, the oil technical parameters and properties are improved, prolonging oil service life and ensuring safety operation of industrial equipment.

Technical parameter

Model

AOP-S-

1R-*

AOP-S-2

R-*

AOP-S-3

R-*

AOP-S-4

R-*

AOP-S-5

R-*

AOP-S-6

R-*

AOP-S-7

R-*

Rated flow(L/min)36912151824
Rated pressure(MPa)1.6
Mpa(MPa)≤0.25
Coarse filter precision(μm)100
Fine filter precision(μm)NAS1638 3-6 Grade
Differential pressure0.8Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-180
Voltage(V)AC380V(Three- phase)、50Hz
Motor power(kw)0.20.20.40.40.550.750.75
Weight(kg)668690108112120135
Dimensions(mm)380x500x680380x500x680600x500x680600x500x680860x500x1000

1100x500x1000

100x500x1000

Features

*Three stage filtration system (primary flter, secondary filter, fine filter).

*Large area three-dimensional flash disillation technology.

*Strong ability of demulsific ation, separating oil and water fficinty.

*Humanized design, easy control for operation and supervision.

*High-fficiency electric heating system, automatic control, less power consumption.

*Automatic oil level controller.

*Automatic pressure protect system.

*Interlocking protection mechanism.

Applications

*Hydraulic lubrication system fltration during refueling

*Bypass filration during operation of hydraulic lubrication system

*Cyclic filtration of hydraulic lubrication system before operation

*Comprehensively improve the cleanliness of hydraulic lubrication system
