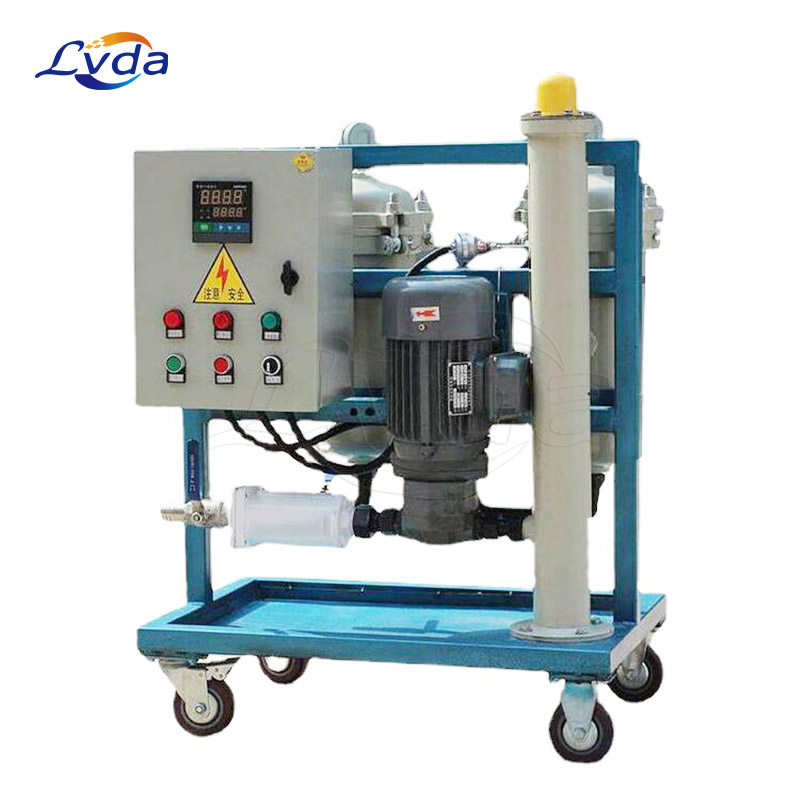

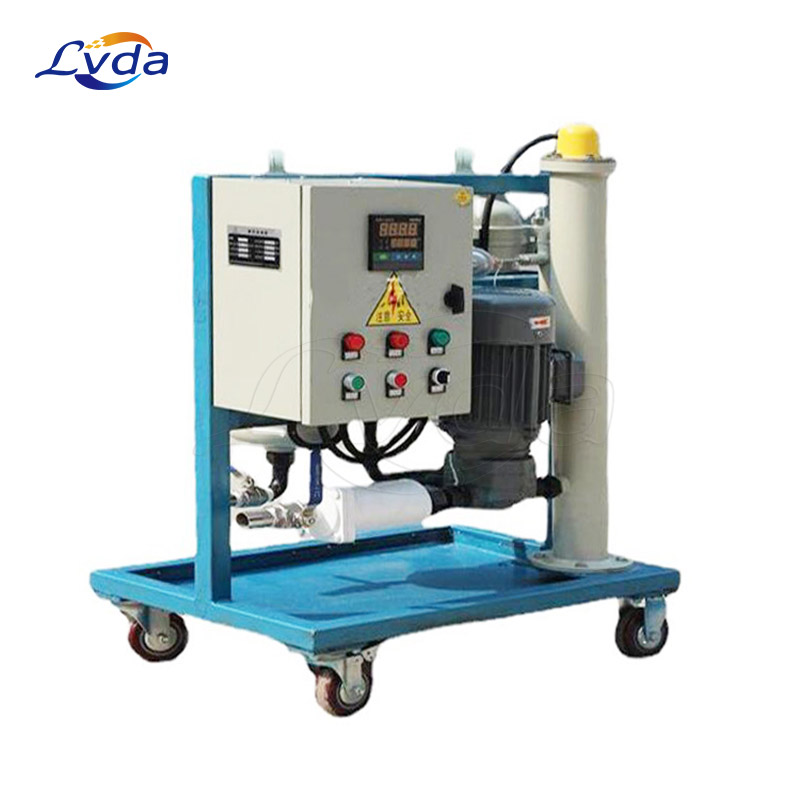

High solid ratio oil purifier

Other Oil Filtration Units

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 180、120、80

Differential pressure : 0.2 MPa

Recommended viscosity(cSt) : 10-160

Voltage(V) : AC 380V(Three - phase)、50Hz

Product Details

The high solid ratio oil purifier is mainly used for on production sites to totally purify hydraulic oils in all kinds of hydraulic machine lubrication systems. The high solid ratio oil purifier provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration. After treating, the oil can be reused as new. For special uses, the apparatus also can be installed on a leak proof base and can be installed and operated on a trailer.

Regular servicing your hydraulic machines with our high solid ratio oil purifier can substantially increase their lifetime and performance and on top helps to reduce your costs, and make your machine work more nicely, so that your production equipments' utiliy stays in a healthy condition.

Technical parameter

Model	AOP-G32 -/*	AOP-G50 -/*	AOP-G100 -/*	AOP-G150 -/*	AOP- -G200 -/*
Rated flow(L/min)	32	50	100	150	200
Rated pressure(MPa)	0.6
Mpa(MPa)	≤0.1
Coarse filter precision(μm)	180、120、 80
Clarify filter precision(μm)	5、10、20
Fine filter precision(μm)	3
Differential pressure	0.2MPa
Recommended viscosity(cSt)	10-160
Voltage(V)	AC 380V(Three - phase)、50Hz
Motor power(kw)	0.75	1.1	2.2	3.0	5.5
Weight(kg)	220	280	360	480	600
Dimensions(mm)	900x600x1080	1000x600x1080	1200x880x1280	1200x880x1520	1350x900x1870
