High solid purifier carts
High solid purifier carts
High solid purifier carts

High solid purifier carts

Other Oil Filtration Units

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 180、120、80

Differential pressure : 0.2 MPa

Recommended viscosity(cSt) : 10-160

Voltage(V) : AC 380V(Three - phase)、50Hz

Get Quotation

Product Details

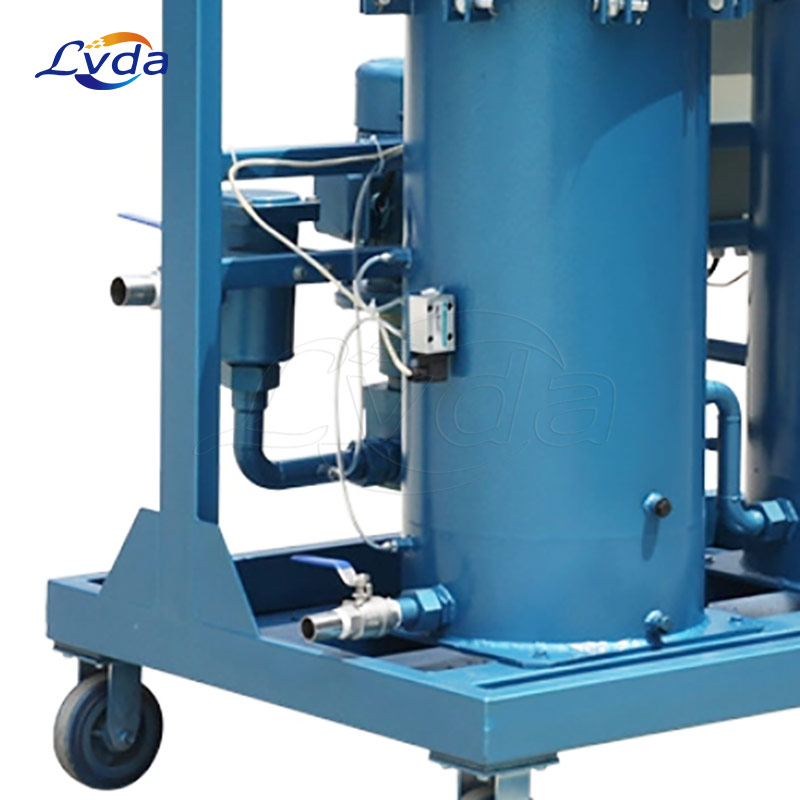

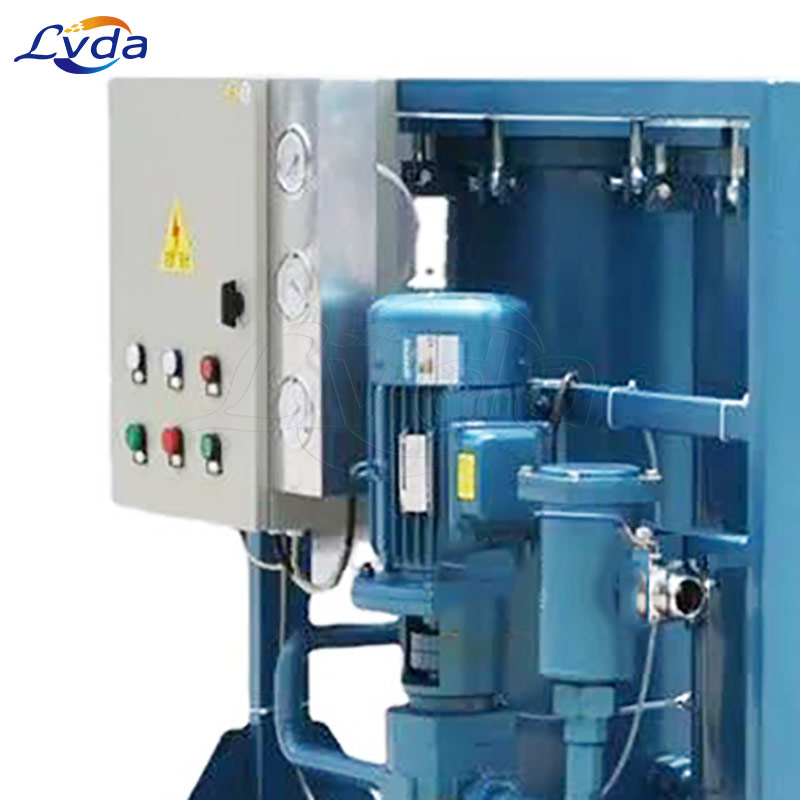

Our high solid purifier cart is a mechanical device that filters solid impurities and water in oil and improves oil performance. Use pressure filtration or vacuum evaporation-pressure filtration to remove solid impurities and moisture in impure oil. The oil purifier truck is mostly applied to raise the insulation performance of electrical oil and the purity of lubricating oil.

This high solid purifier machine can treat the impurities at very high level, so, it's an ideal device for remove high rates of particles in the fluid, especially in food oil processing industry.

Technical parameter

Model

AOP-G32

-*/**

AOP-G50

-*/**

AOP-G100

-*/**

AOP-G150

-*/**

AOP- -G200

-*/**

Rated flow(L/min)32

50

100

150

200
Rated pressure(MPa)0.6
Mpa(MPa)

≤0.1

Coarse filter precision(μm)

180、120、 80


Clarify filter precision(μm)

5、10、20

Fine filter precision(μm)

3

Differential pressure

0.2MPa
Recommended viscosity(cSt)

10-160

Voltage(V)AC 380V(Three - phase)、50Hz
Motor power(kw)0.751.12.23.05.5

Weight(kg)

220280360480

600

Dimensions(mm)

900x600x1080

1000x600x1080

1200x880x1280

1200x880x1520

1350x900x1870

Features

Rugged, protective frame, easy transportation

Save the costs of additional maintenance and replacement parts

Effectively get rid of solid particles, rust, suspended sediments

Available choices of different μm elements

Ideal for particulate contaminated oil

Applications

Clarification and filtration of large quantities of lubricants

The filtration for high-solid content lubricants

Regeneration and fltration of waste oil
